PULSAR FENCES
PULSAR FENCES

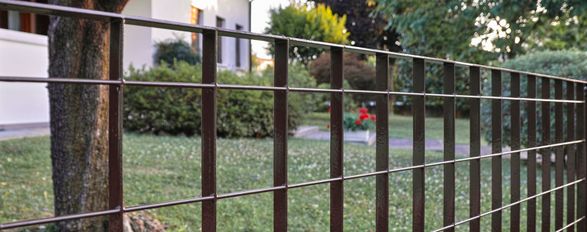

Its wide mesh makes it less invasive and suitable for large areas; try it for your home! Plusar is a grating fence that is suitable for large areas.
Its 124 x 132 mm mesh and 25 x 3 mm bearing bar guarantee an excellent performance, in terms of quality and durability. Plusar comprises vertical bearing bars with a rectangular cross-section and connecting round cross-beam bars. The upper and lower band – connected via wire welding – ensure a high resistance and long-lasting quality. The Plusar model can be fitted with hinged or sliding single/double-leaf gates.
INFORMATION
COATING
A polyester resin powder coating – suitable for outdoor use – is applied on the post-processing hot dip-galvanised material.
PRODUCTION
Made in Italy
PRODUCT TYPE
Fences
USE
Outdoor
BRAND
Baldassar
COLLECTION
Plusar
MATERIAL
S 235 JR (UNI EN 10025:1995) steel
STANDARD SURFACE TREATMENT
Hot dip-galvanised post-processing in accordance with UNI ISO 1461:2009
DOWNLOADS
↓ Data Sheet
↓ Catalogue
ACCESSORIES AND OPTIONAL EXTRAS
-M8 x 30 round head stainless steel bolt with lock nut
- M8 x 30 stainless steel bolt with hex nut
- Standard or 45° tube compensating clamps
- A third clip to be welded or bolted
- Other posts
SPECIFICATIONS
The Baldassar Plusar fence model consists of electro-welded grating panels in S235JR (UNI EN 10025) steel with a 124 x 132 mm mesh, vertical bearing bars with a 25 x 3 mm cross-section, horizontal cross wire with a 5 mm diameter and an upper and lower steel banding bar with a 25 x 4 mm cross-section, manually wire-welded to increase the product’s resistance. It comes with steel posts comprising a 60 x 7 mm cross-section round top bar, in addition to M8 x 30 stainless steel bolts. All the elements are hot dip-galvanised in accordance with the UNI EN ISO 1461 standard.
TECHNICAL DRAWING
TECHNICAL DATA
| PANEL HEIGHT 2(MM) | PANEL LENGTH 1992 WEIGHT (KG/EACH) | POST SECTION (MM) | SCREW-ON POST H3 HEIGHT (MM) | SCREW-ON POST WEIGHT (KG/EACH) | CONCRETE-IN POST H1 HEIGHT (MM) | CONCRETE-IN POST EEIGHT (KG/EACH) |
|---|---|---|---|---|---|---|
| 930 | 14,80 | 60 x 7 | 1000 | 4,10 | 1180 | 4,20 |
| 1064 | 16,50 | 60 x 7 | 1130 | 4,50 | 1315 | 4,70 |
| 1200 | 18,10 | 60 x 7 | 1265 | 5,00 | 1450 | 5,20 |
| 1330 | 19,90 | 60 x 7 | 1395 | 5,50 | 1580 | 5,60 |
| 1460 | 21,60 | 60 x 7 | 1525 | 5,90 | 1710 | 6,10 |
| 1724 | 24,40 | 60 x 7 | 1790 | 6,90 | 1970 | 7,00 |
| 1990 | 27,80 | 60 x 7 | 2055 | 7,80 | 2250 | 8,10 |
COLORS
-7016 -6005 -6029 -9005 -5010 -1023 -3002 -7016
