QUASAR 2 FENCES
Try the optical effect-creating Quasar fence in either the basic or special colours!
Quasar 2 is a grating fence with a 62 x 66 mm mesh and 25 x 2 mm bearing bar.
Its distinctive feature is the small square mesh which makes the model an aesthetically-pleasing designer product that also boasts grating characteristics: robustness and durability.
It comprises vertical bearing bars with a rectangular cross-section and connecting round cross-beam bars. The upper and lower band – connected via wire welding – ensure a high resistance and long-lasting quality.The Quasar 2 fence can be fitted with hinged or sliding single/double-leaf gates.
INFORMATION
COATING
A polyester resin powder coating – suitable or outdoor use – is applied on the hot dip-galvanised material post-processing.
PRODUCTION
Made in Italy
PRODUCT TYPE
Fences
USE
Outdoor
BRAND
Baldassar
COLLECTION
Ovalis
MATERIAL
S 235 JR (UNI EN 10025:1995) steel
STANDARD SURFACE TREATMENT
Hot dip-galvanised post-processing in accordance with UNI ISO 1461:2009
DOWNLOADS
↓ Data Sheet
↓ Catalogue
ACCESSORIES AND OPTIONAL EXTRAS
-M8 x 30 round head stainless steel bolt with lock nut -M8 x 30 stainless steel bolt with hex nut -Standard or 45° tube compensating clamps
SPECIFICATIONS
The Baldassar Quasar 2 fence model consists of electro-welded grating panels in S235JR (UNI EN 10025) steel with a 62 x 66 mm mesh, vertical bearing bars with a 25 x 2 mm cross-section, horizontal cross wire with a 5 mm diameter and an upper and lower steel banding bar with a 25 x 4 mm cross-section, manually wire-welded to increase the product’s resistance. It comes with steel posts comprising a 60 x 7 mm cross-section round top bar, in addition to M8 x 30 stainless steel bolts. All the elements are hot dip-galvanised in accordance with the UNI EN ISO 1461 standard.

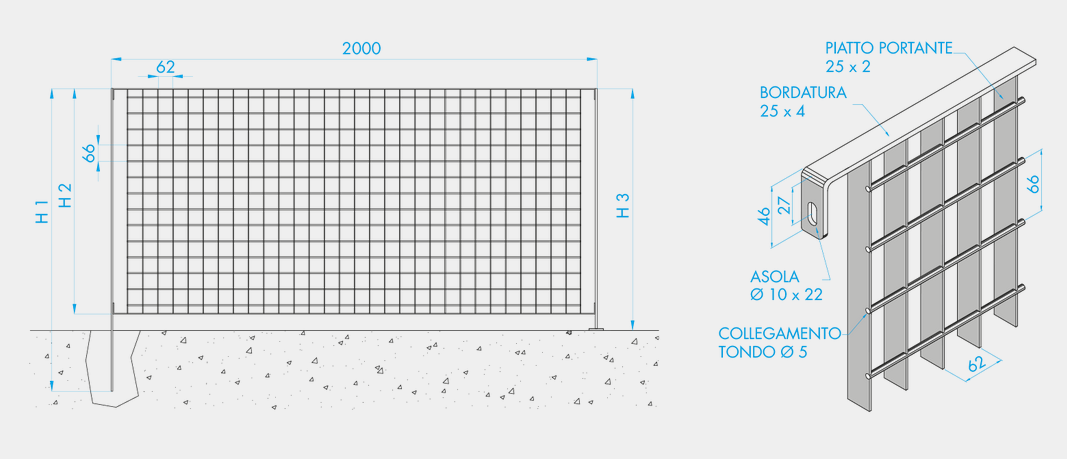

TECHNICAL DRAWING
TECHNICAL DATA
| PANEL HEIGHT 2(MM) | L=1992 WEIGHT (KG/EACH) | SECTION (MM) | H3 HEIGHT (MM) | WEIGHT (KG/EACH) | H1 HEIGHT (MM) | WEIGHT (KG/EACH) |
|---|---|---|---|---|---|---|
| 930 | 20.10 | 60x7 | 1000 | 4.10 | 1180 | 4.20 |
| 1064 | 22.50 | 60x7 | 1130 | 4.50 | 1315 | 4.70 |
| 1200 | 25.10 | 60x7 | 1265 | 5.00 | 1450 | 5.20 |
| 1330 | 27.30 | 60x7 | 1395 | 5.50 | 1580 | 5.60 |
| 1460 | 29.70 | 60x7 | 1525 | 5.90 | 1710 | 6.10 |
| 1724 | 34.50 | 60x7 | 1790 | 6.90 | 1970 | 7.00 |
| 1990 | 39.50 | 60x7 | 2055 | 7.80 | 2250 | 8.10 |
COLORS
-9010 -6005 -6029 -9005 -5010 -1023 -3002 -7016
