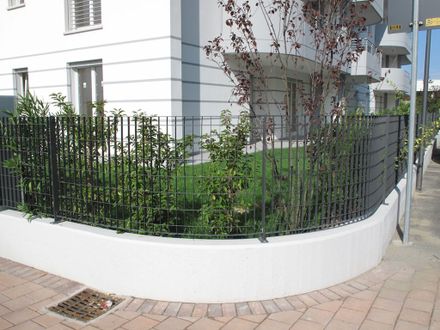

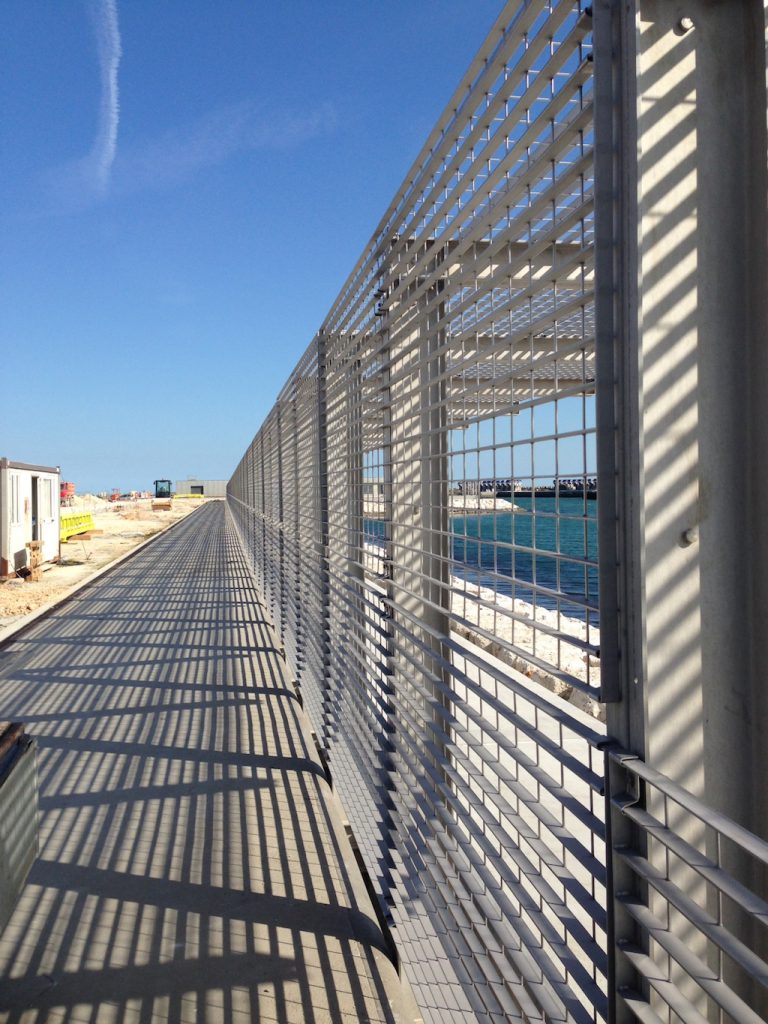

MULTISAR FENCE
Robustness and transparency: the distinctive characteristics a grating fence can offer; you will be amazed!
Robustness and transparency: the distinctive characteristics a grating fence can offer. The Multisar consists of a 66 x 132 mm mesh (internal bars) and 25 x 2 mm bearing bar.
This electro-welded grating modular fence comprises vertical bearing bars with a rectangular cross-section and connecting round cross-beam bars.
The upper and lower band – connected via wire welding – ensure a high resistance and long-lasting quality. The Multisar fence can be fitted with hinged or sliding single/double-leaf gates.
INFORMATION
ACCESSORIES AND OPTIONAL EXTRAS
- M8 x 30 round head stainless steel bolt with lock nut
- M8 x 30 stainless steel bolt with hex nut
- Standard or 45° tube compensating clamps
- A third clip to be welded or bolted
COATING
A polyester resin powder coating – suitable for outdoor use – is applied on the hot dip-galvanised material post-processing.
MATERIAL
S 235 JR (UNI EN 10025:1995) Steel
DOWNLOADS
↓ Data Sheet
↓ Catalogue
PRODUCT TYPE
Fences
PRODUCTION
Made In Italy
STANDARD SURFACE TREATMENT
Hot dip-galvanised post-processing in accordance with UNI ISO 1461:2009
ITEM SPECIFICATIONS
The Baldassar Multisar fence model consists of electro-welded grating panels in S235JR (UNI EN 10025) steel with a 66 x 132 mm mesh, vertical bearing bars with a 25 x 2 mm cross-section, horizontal cross wire with a 5 mm diameter and an upper and lower steel banding bar with a 25 x 4 mm cross-section, manually wire-welded to increase the product’s resistance. It comes with steel posts comprising a 60 x 7 mm cross-section round top bar, in addition to M8 x 30 stainless steel bolts. All the elements are hot dip-galvanised in accordance with the UNI EN ISO 1461 standard.
TECHNICAL DRAWING
TECHNICAL DATA
| PANEL - H2 HEIGHT (MM) | PANEL -L=1992 WEIGHT (KG/EACH) | POST - SECTION (MM) | SCREW-ON POST - H3 HEIGHT (MM) | SCREW-ON POST - WEIGHT (KG/EACH) | CONCRETE-IN POST - H1 HEIGHT (MM) | CONCRETE-IN POST - WEIGHT (KG/EACH) |
|---|---|---|---|---|---|---|
| 930 | 16,20 | 60 x 7 | 1000 | 4,10 | 1180 | 4,20 |
| 1064 | 18,00 | 60 x 7 | 1130 | 4,50 | 1315 | 4,70 |
| 1200 | 19,20 | 60 x 7 | 1265 | 5,00 | 1450 | 5,20 |
| 1330 | 21,70 | 60 x 7 | 1395 | 5,50 | 1580 | 5,60 |
| 1460 | 23,50 | 60 x 7 | 1525 | 5,90 | 1710 | 6,10 |
| 1724 | 27,10 | 60 x 7 | 1790 | 6,90 | 1970 | 7,00 |
| 1990 | 30,70 | 60 x 7 | 2055 | 7,80 | 2250 | 8,10 |
| 2120 | 32,50 | 80 x 8 | 2185 | 12,40 | 2370 | 12,70 |
| 2516* | 38,20 | 80 x 8 | 2580 | 14,40 | 2765 | 14,70 |
AVAILABLE RAL COLORS
Upon Request : 6029, 9010, 9005, 5010, 1023, 3002, 7016 ,6005
