HORIZON FENCES

HORIZON FENCES

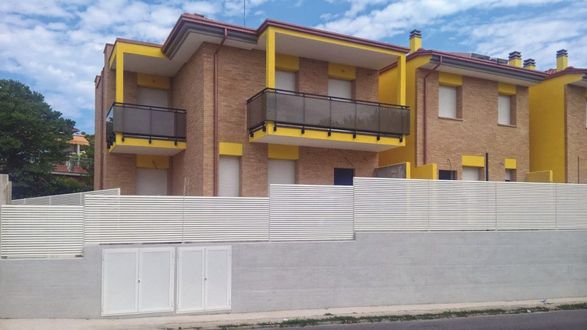

Projected towards new horizons: Horizon guarantees a high level of privacy as it can completely obstruct the view.

Projected towards new horizons: Horizon guarantees a high level of privacy as it can completely obstruct the view. Horizon is recommended for all environments where privacy is required.

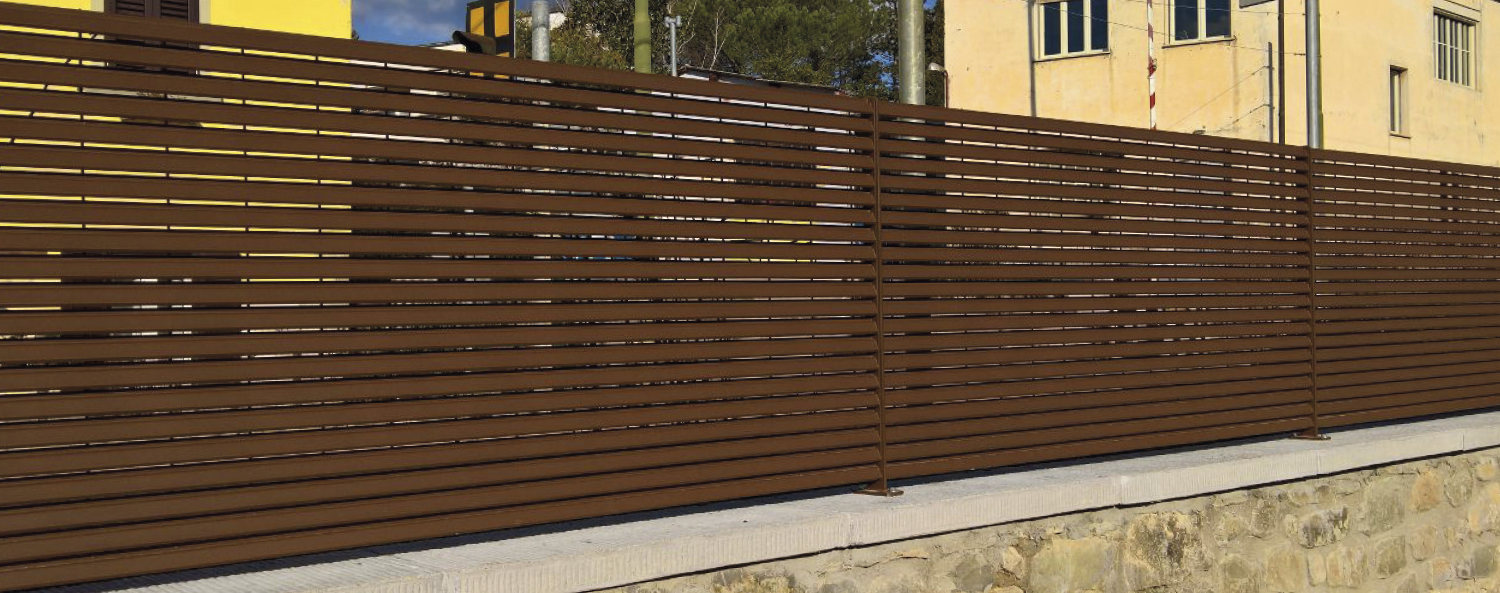

It comprises horizontal bearing bars with a special sunblind profile and connecting round cross-beam bars.

The upper and lower bands – connected via wire welding – ensure a high resistance and long-lasting quality. The Horizon fence model can be fitted with single/double-leaf hinged gates or sliding gates.

INFORMATION

PRODUCTION

Made in Italy

PRODUCT TYPE

Fences

USE

Outdoor

BRAND

Baldassar

MATERIAL

S 235 JR (UNI EN 10025:1995) steel

FINISH

Galvanised Stainless Steel

DOWNLOADS

↓ Data Sheet
↓ Catalogue

COLLECTION

Ribes

STANDARD SURFACE TREATMENT

Hot dip-galvanised post-processing in accordance with UNI ISO 1461:2009

GATES

The Horizon fence model can be fitted with single/double-leaf hinged gates or sliding gates.

COATING

A polyester resin powder coating – suitable for outdoor use – is applied on the hot dip galvanised material post-processing.

ACCESSORIES AND OPTIONAL EXTRAS

- M8 x 30 stainless steel bolt with hex nut
- M8 x 30 round head stainless steel bolt with lock nut

SPECIFICATIONS

The Baldassar Horizon fence model consists of electro-welded grating panels in S235JR (UNI EN 10025) steel with a 47 x 133 mm mesh, Z-shaped horizontal bearing bars, vertical cross wire with a 5 mm diameter and a steel side banding bar with a 40 x 3 mm cross-section, hand wire-welded to increase the product’s quality. It comes with steel posts comprising a 60 x 7 mm cross-section bar, in addition to M8 x 30 stainless steel bolts, hot dip-galvanised in accordance with the UNI EN ISO 1461 standard.

TECHNICAL DRAWING
