Glass 1989 Of Spa 250/225 Portable Spa
OF SPA 250/225 PORTABLE SPA
OF SPA 250/225 PORTABLE SPA

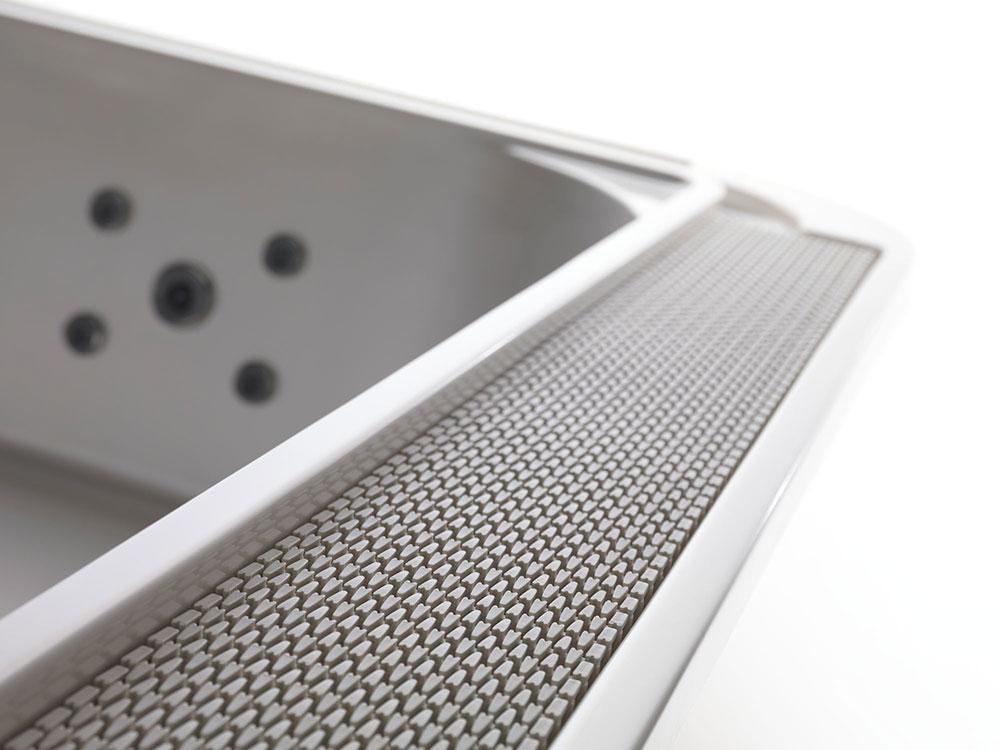

A unique experience. It’s like magic: as you let yourself enjoy the comforting embrace of water, your mind and body get regenerated. In this spa the water constantly flows over the rim of the pool, it overflows into the overflow channels and is conveyed to the balance tank. OF Spa 250/225. A comfortable lounge area and 5 seats characterize this overflow spa, ideal for professional use, for wellness centers and hotels
INFORMATION
BRAND
Glass1989
PRODUCTION
Made In Italy
PRODUCT CODE
250/225
SEATS
5/6 Seats
PRODUCT TYPE
Portable Spa
OPTIONALS
Ozone System
DIMENSIONS
- 250x225 cm
- Height : 100 cm
INSTALLATIONS
Built-in
ACCESSORIES
Insulating cover Headrest
SPA-PACK VERSIONS
Without heater, with heater, with heat exchanger
EQUIPMENT
-27 whirlpool jets, -24 airpool jets, -Chromotherapy, -External pneumatic buttons.
EARTH CABLE
The earth cable must be connected in a fixed and permanent manner to the electrical mains. The manufacturer declines all liability for defects or malfunctions due to the absence or unsuitability of the earthing system.
SPECIFICATIONS FOR THE PLUMBING INSTALLER
The following specifications must be performed by a qualified technician capable of installing the product in normal conditions, working on the mechanical parts to make all the adjustments, required maintenance and repairs. He is not qualified to work on live electrical systems.
The product must be connected to the water supply system, through a type CAa hydraulic disconnector, as defined by the European Standards on the prevention of reflux pollution, which does not interfere with normal installation of the product.
SPECIFICATIONS FOR THE ELECTRICAL INSTALLER
The following specifications must be performed by a qualified technician capable of installing the product in normal conditions. He is responsible for all electrical work relating to adjustments, maintenance and repairs. He is able to work on live systems in cabinets or electric boxes.
The electrical power supply system must comply with the requirements of the International Installation Standards, as well as with the national legal requirements.
PRODUCT POWER BOX
Before connecting the product, check that the system is capable to withstand the appliance power. The manufacturer declines all liability for defects caused by instability of the electrical mains or of the electrical system upstream of the product (overvoltage or overcurrent peaks).
In the event of unstable electrical mains it is recommended to install a suitable stabilisation device, to protect the appliance in the event of overvoltage or overcurrent peaks for the integrity of the product.
For the electrical connection to the power box (only for product versions that are equipped with a power box) use a type H07 RN-F cable of adequate size according to the power absorbed by the product. In the cable connecting to the power box, the earth terminal (Yellow Green) must be at least 30 mm longer than the phase and neutral conductors.
EQUIPOTENTIAL CONNECTION
The appliance must be connected to the equipotential system of the room and duly attached to the relevant terminal in the product. The connection to the electrical mains requires the installation of a 30mA differential switch and of a class III overvoltage circuit breaker, with a contact gap of at least 3 mm, with voltage and current suitably sized according to the product to be installed. The switches must be arranged near the appliance, upstream of the power box (only for the product versions which are equipped with a power box).
This switch must be set to the “closed” position (ON) only for the time the product is used and then set back to the “open” position (OFF). It must not be within the reach of persons using the product itself.
If the product is installed in a bathroom, the differential switch must be placed as defined by the International Installation Standards, as well as by the national legal requirements and in any case far from potential water dispensing or spraying. When the load-bearing structure of the product is made of metal, an efficient earth system is required, featuring the sensitivity envisaged by the standards
