HSF HIGH SECURITY FENCING
HSF HIGH SECURITY FENCING
High security electro-welded mesh made out of Zinc-Aluminum coated wire through produced according to the exclusive Galvatec Process®, which gives excellent corrosion resistance and cathodic protection against cuts and abrasions: both vertical and horizontal wires of 4.0 mm.
High security fencing was designed and implemented with the aim of preventing and hindering any intrusion attempt.
Specifically, the quality of the raw materials, the dense mesh weft, the wire diameter higher than the standards, the use of stainless steel security bolts and self-cutting nuts offer full safety thus eliminating any support to hands and feet or the use of nippers.
Specially designed for Physical Protection, Safety and Defense of Plants, Sites, Warehouses, Industrial Areas, Military and Telecommunications Infrastructures, Transport Infrastructures, Critical Infrastructures and Sensitive Sites, Sports Facilities, Events - Internal Compartments, etc – HSF can be realized in customized version and on a specific customer request.
INFORMATION
BRAND
Cavatorta
PRODUCT FAMILY
Fencing
UNIQUE REF
High-security-fencing
MATERIAL MAIN
Galvanized steel
DIMENSIONS OF THE PANELS
- Width: 250 cm - 220 cm - 200 cm
- Height: up to 600 cm
DATE OF PUBLISHING
2019-07-26
EDITION NUMBER
1
PRODUCT GROUP
Fencing for Prisons, Airports, Military, Boundary, High Security Areas
PROPERTIES
- Landscaping - Fencing
ColourRAL 6005,RAL 7016
- UK.COBie.Type
ColourRAL 6005,RAL 7016
CLASSIFICATION
- BIMobject CategoryLandscaping - Fencing
- UNSPSC name : Metal fencing
- UNSPSC code : 30152001
- Uniclass 2015 Code : En_20_85_30
- Uniclass 2015 Description - Security fences
- CSI MasterFormat 2014 Code : 32 31 00
- CSI MasterFormat 2014 Title : Fences and Gates
- OmniClass Number : 23-11 25 19
- OmniClass Title : Fences
PRESERVE AND ENSURE
- Site Security
- Intrusions and Attacks
- Theft
- Tampering and damages
- Defense of the Food Chain - Food Defense
- Business Continuity
MATERIAL
- Hot-dip-galvanized steel is used for the structure (posts, base plates, optional single/double cranked extensions and/or reinforcing horizontal steel square profiles)
- Wire mesh is Class A galvanized - GALVATEC PROCESS® (Alu-Zinc alloy) 4.0 mm (8ga), small mesh size 76.2x12.7 (h) mm
- Panel finishing: thermosetting polyester powder coating
MESH SIZE
76.2 x 12.7 mm
AVAILABLE FINISH
Polyester coating in different colors.
PERFORMANCE CHARACTERISTICS
- ANTICLIMBING (the type of net does not allow any support to hands and feet)
- ANTI-CUT (there is not enough space to use any cutters)
- ANTI-BREAKING (use of special fixing bolts in stainless steel with round head and square underhead and safety nuts with Security Shear Nut)
POSSIBLE CONFIGURATIONS
- Standard HSF Fence (Posts 80x60x2.5 mm + mesh panel 76.2x12.7 mm)

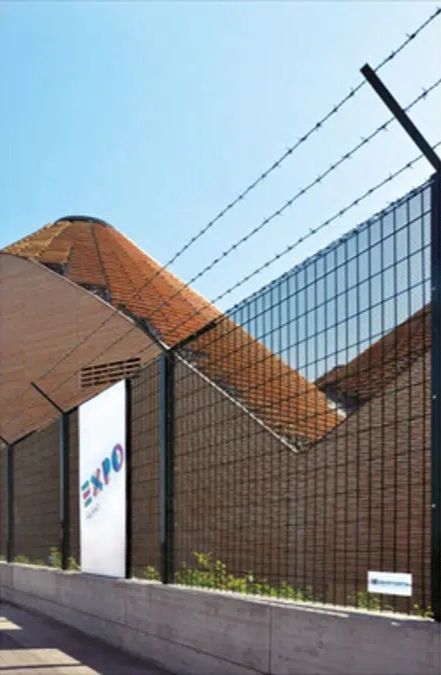

- Posts with crancked extension ("Y", "L" or vertical shape)
- Crancked extensions completed by folded panels, steel wires, barbed wire and concertina Razor Tape.
- Optional reinforcing horizontal steel square profiles – dimensions 45x45x1,5mm
- HSF ACTIVA: safety fence that combines the HSF system "Cavatorta Project" with the active protection system in order to detect intrusion attempts, cutting, breaking and climbing, all this hidden inside tamper-proof cable ducts (up to 5). Possibility to integrate lighting systems, cameras, loudspeakers, external sensors, infrared sensors, fiber etc
DETAILS
- All structural elements are hot-dip galvanized according to EN 1461.
- HSF High Security Fencing System (CAVATORTA Project) consisting of electro-welded mesh panels in ø 4.0 mm Zn-Al alloy galvanized steel wires acc.to the exclusive GALVATEC PROCESS® Zn 95% - 5% - Class A coating according to EN 10244-2; mesh L=76.2x12.7 (h) mm (width and height of panels manufactured according to specific project needs).
- Finish coating with thermosetting polyester powder paint in the standard colors GREEN RAL 6005 - ANTHRACITE RAL 7016 (or at customer's choice).
- Posts section 80x60x2.5 mm, with either “Y” / ”L” or vertical arm extension in square pipes 50x50x2.5 mm thus enabling the fixation of a folded panel 76.2x12.7(h) mm, a galvanized barbed wire and/or concertina NATO typ e.
- Post base plate 80x4.0 mm, stainless steel round head fixing bolts and security nuts with self-cutting head.
- Optional reinforcing horizontal steel square profiles – dimensions 45x45x1,5mm installed between posts.
