KEDRY PLUS LOUVERED PERGOLAS
KEDRY PLUS LOUVERED PERGOLAS
Self-supporting, aluminium bioclimatic pergola with adjustable-louvered roof; its side gutter profile allows the blades rotation and water dreinage
INFORMATION
PROTECT
Sun Resistance
WIND
Wind Resistance, Grade 6
DETAIL
- Water tightness
- Wind and snow resistance
- Wind, rain and snow sensors for the blades' automatic moving
WIDTH
Maximum width: 400 cm
POJETION
Maximum projection : 810 cm
CERTIFIED
Tested and Certified CE
ROOF
Adjustable
BRAND
KE
DOWNLOAD
↓ Technical Sheet
PRODUCTION
Made in Italy
COLLECTION
Kedry
AVAILABLE COLOURS
GENERAL INFORMATION
Freestanding aluminium shade structure with a roof of adjustable blades consisting of a perimeter gutter profile that allows the blades to rotate and the water to drain away. movement is provided by linear motors Certified wind resistance up to class 6 according to EN 13561. Over 6 meters thick, the structure will be equipped with a stabilizing box.
PRODUCT TYPE
Folding Pergolas
OPTIONAL
-Vertika -Glass Doors
TECHNICAL INFORMATION
GENERAL TECHNICAL PLAN

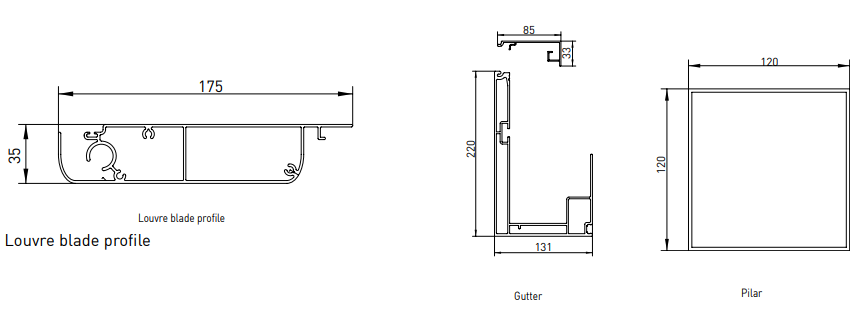

GIRDER SECTION

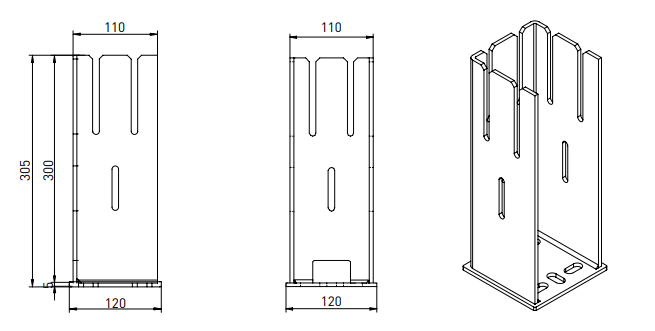

GROUND CONNECTION
GROUND CONNECTION
