KEDRY PLUS A
Self-supporting, aluminium shade structure with adjustable-louvered roof; its side gutter profile allows the blades rotation and water dreinage.
information
BRAND
KE
PRODUCTION
Made in Italy
PRODUCT TYPE
Kedry PLUS A
CERTIFIED
Tested and certified CE
RESISTANCE
- Sun resistance
- Water resistance, grade 6
PROJECTION
Maximum projection: 810 cm
WIDTH
Maximum width: 400 cm
STRUCTURE
Over 6 meters thick, the structure will be equipped with a stabilizing box
MATERIAL
Aluminium
ENVIRONMENT
Residence
OPTIONAL
- Light
- Vertika
- Glass
DOWNLOADS
↓ Technical Sheet
↓ Product Details
WIND RESISTANCE
The wind resistance of an exterior shade system is characterized by its ability to support defined loads by simulating wind with positive or negative pressure. In order to define a correlation between the wind resistance class according to the classes defined by the technical standard EN 13561 and the wind speed expressed in Km / h, a comparative table with the Beaufort scale is used. The Beaufort Scale classifies winds according to the speed at which they blow.
Wind speed is measured in kilometers per hour (km / h) or in nodes using a measuring instrument, called anemometer, at a height of about 10 meters above the ground.
DETAILS
- Aluminium shade structure with a roof with adjustable blades consisting of a perimeter gutter profile that allows the blades to rotate and the water to drain away.
- Movement is provided by linear motors Certified wind resistance up to class 6 according to EN 13561.
- Over 6 meters thick, the structure will be equipped with a stabilizing box
PROTECTION
- Protection from sunrays
- Possible blades' automatic moving
COLOURS
-9010 White -9010 White Matt -7016 Iron Matt -carbon Rough -9003 Cotton Matt -1013 Off White -1013 Off White Matt -9002 White -1015 Sand Matt -9006 Aluminium -9006 Aluminium Matt -9007 Dark Aluminium -9007 Dark Aluminiu Matt -7042 Grey Stone Matt -7021 Off Black Matt -7030 Warm Grey Matt -7006 Dust Matt -7038 Resin -7044 Natustone Mattmatt -1019 Washed Wood Matt -8014 Classic Brown Matt -8017 Ground Matt -3007 Black Red Matt -8019 Night Brown Matt -5000 Monlight Matt -6025 Leaf Matt -6003 Forest Opaco -6007 Mimetic Matt -5002 Prime B Matt -3002 Primer -1023 Prime Y Matt
TECHNICAL DRAWING

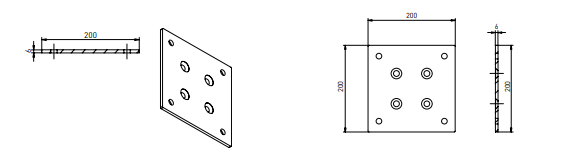

GROUND CONNECTION
GENERAL TECHNICAL PLAN
GIRDER SECTION
GROUND CONNECTION
WALL INSTALLATION
