ROOF 9 GAZEBO
ROOF 9 GAZEBO
The 9 was our first roof, the one we tested all our theories with.

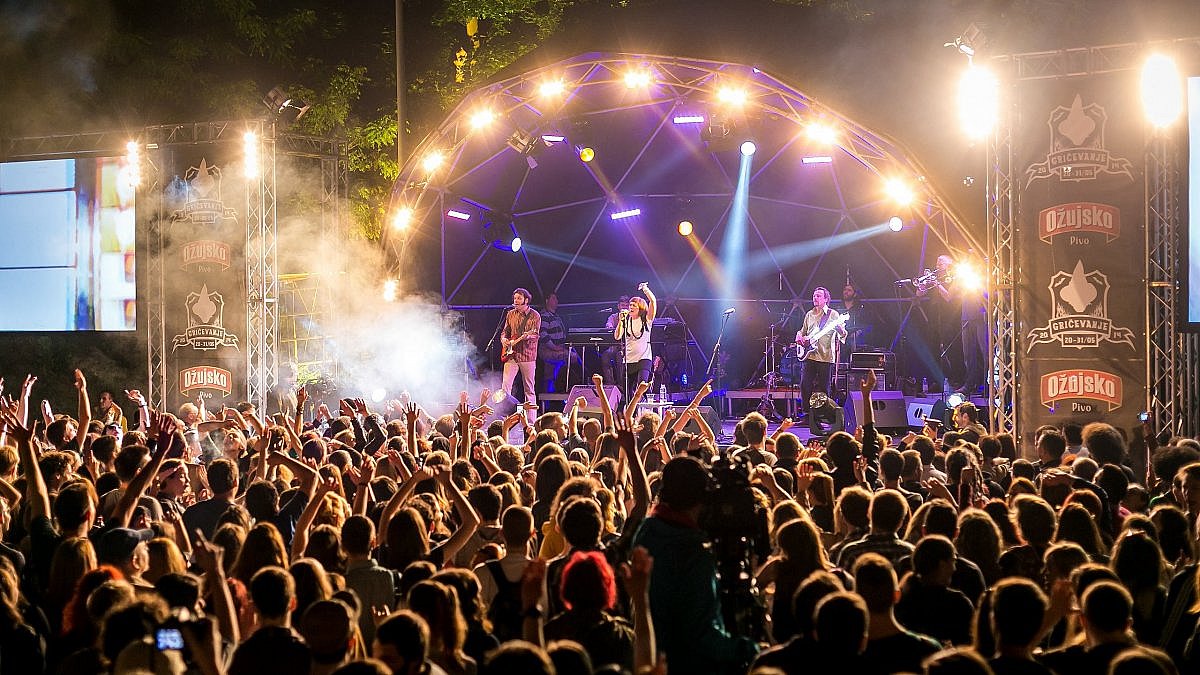

We even organized a small music festival (Gričevanje 2011-2015) to promote and test our products.
Our prototypes housed dozens of concerts, events and a bunch of different situations. Basically, the 9 can be whatever you need it to be.
Tested for high winds and extreme atmospheric conditions, the 9 is your mid-sized event rock.

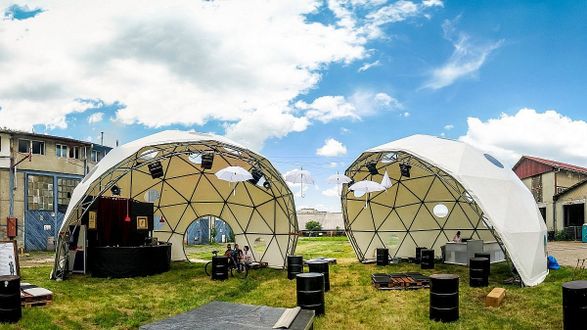

Clients have used it as an activation gaming zone, location info points in natural parks and at all kinds of pop-up events, due to our commendable assembly speed. Grouping domes and roofs offer a unique and organically futuristic visual treat for your visitors.
INFORMATION
FRAMEWORK WEIGHT
602 kg
MEMBRANE WEIGHT OVERALL
77 kg
DIAMETER
921 cm
HEIGHT
556 cm
FLOOR AREA
37/54 m2
ENTRANCE COVER
PVC
NUMBER OF ENTRANCES
1
ENTRANCE HEIGHT
260 cm
STORAGE DIMENSIONS
Pallet 1 (framework + membrane + arch support) 270 cm x 88 cm x 210 cm – 1450 kg
ENTRANCE WIDTH (FLOOR LEVEL)
190 cm
CONSTRUCTION MATERIAL
Steel (S235JRH)
ENTRANCE WIDTH (CENTER)
300 cm
VENTILATION OPENINGS
1
ENTRANCE WIDTH (CENTER)
300 cm
CONSTRUCTION FINISH
Hot-dip galvanization
STRUT DIAMETER
48,3 mm
MEMBRANE MATERIAL
PVC
MEMBRANE THICKNESS
680/780 g/m2
WIND RESISTANCE
25 m/s
MEMBRANE CERTIFICATE
B1, M2 (DIN EN 13501-1)
