Tubes Basic14 Radiator
Basic14 Radiator
BASIC14 RADIATOR
Designer by Ludovica+roberto Palomba
Basics 14 is a carbon steel radiator consisting of 14 mm diameter round tubular elements.
Available in the hydraulic version, this radiator can also come in the single version or in the double column version for a higher heat output.
Depending on the design requirements, Basics 14 can be ordered with the elements arranged vertically or horizontally.
There are 9 possible heights (from 60 cm to 220 cm) and a generous 20 different widths. Mixing these various sizes together means you can choose between 200 dimensional variables, which is a great help in accommodating all possible space requirements.

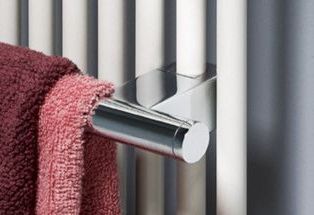

Basics14 is the ideal radiator for any room in the home, whether this is the kitchen or the bedroom, and thanks to the range of accessories such as the towel rail and the hook, it can even be functional in the bathroom.
In addition to its clean-cut shape, this radiator offers superior thermal performance levels with reduced water consumption.
INFORMATION
PRODUCT TYPE
Radiator
PRODUCTION
Made in Italy
MATERIAL
Aluminium
DESIGNER
Ludovica+Roberto Palomba
BRAND
Tubes
USE
Indoor
SIZES
200
VERSION
Double Column
ELEMENTS ARRANGED
-Vertically -Horizontally.
OPERATION MODE
Hydraulic
USE
Any room in the home, whether this is the kitchen or the bedroom, and thanks to the range of accessories such as the towel rail and the hook, it can even be functional in the bathroom.
CV14 - CV14D VERTICAL & HORIZONTAL SINGLE AND DOUBLE HYDRAULIC
CONNECTORS
VERTICAL SINGLE AND DOUBLE HYDRAULIC CONNECTORS
The heated towel rails are supplied as standard with connectors “0C1” If different connectors are required, strictly indicate this in the order. IMPORTANT: the connectors for radiators connected to the same system must allhave the same configuration, otherwise operating problems may occur. In the OB2 configuration, two chrome plugs with a diameter of 1/8” are present at the head of the collectors.

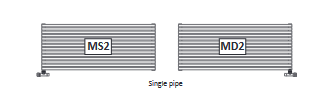

HORIZONTAL SINGLE AND DOUBLE HYDRAULIC CONNECTORS
Connectors The radiators are supplied as standard with 0B1 connections If different connectors are required, strictly indicate this in the order. IMPORTANT: the connectors for heated towel rails and radiators connected to the same system must all have the same configuration, otherwise operating problems may occur.
