LeeBoy NV55 Broom Machine
NV55 BROOM MACHINE
NV55 BROOM MACHINE
The broom for professionals, the NV55 offers many advantages linked to simple operation and superior sweeping action.
The multi-functional joystick control lever combined with fingertip controls provide precision movement during operation.
The standard configuration features wrap-around windows that give the operator remarkable visibility while residing in the comfortable fully-enclosed cab. Requiring only one person, the quick-change core system permits the replacement of a brush in minutes limiting downtime.
INFORMATION
BRAND
Leeboy
LBP EQUIVALENT
FB55
BRUSH LOCATION
Front-Mount Brush Location

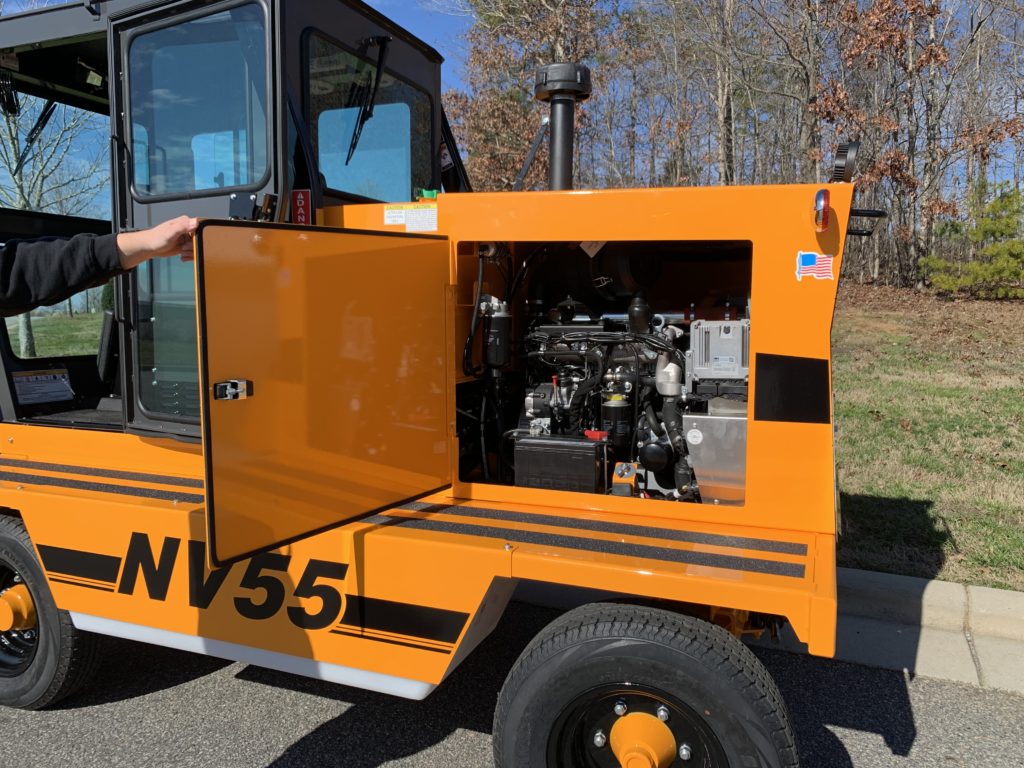

ENGINE
- Tier 4 Final 74 HP (55 kW) Max @ 2,500 RPM Hatz diesel 4H50TIC
- Air cleaner : Rotary pre-cleaner
- Electrical system : 12 volt system, alternator and battery
- Fuel reservoir : 30 gallons
BRUSH
- Joystick control
- Variable down pressure and speed control
- Speed : 160 rpm max, variable by dial or engine speed
- Drive mechanism consists of direct hydraulic motor enclosed in broom core
- Quick change brush system
- Filter : tube type, poly, 32” diameter, 7’ 6” long
- Sweep angle: 30⁰, left or right standard (50⁰ w/side shift option)
- Speed : 160 rpm max, variable by engine speed
BRUSH FRAME
- 7’ 6” x 32” diameter poly tube
- Sweep angle: 300 left or right standard (500 right and left with side-shift option)
- Heavy-duty 11 gauge steel brush cover with 4 x 4 x 1/4 steel tube brush frame
BRAKES
- Two wheel wet disk type brakes
- Hand operated parking brake - Foot operated de-stroke breaking of the hydrostatic drive
INSTRUMENTATION
- PV 380 digital display
- Oil pressure, water temperature, voltmeter, tachometer, hour meter, fuel gauge
HEAVY-DUT HYDRAULIC SYSTEM
Two separate circuits, one for travel, one for brush control and power steering
REAR AXLE
Heavy-duty truck type, oscillating
TRANSMISSION
- Hydrostatic drive
- Speed infinitely variable, 0 to 12 mph low 0 to 22 mph high range
CAPACITIES
- Fuel : 30 gallons
- Hydraulic reservoir : 25 gallons
PERFORMANCE FEATURES
- 74 hp (55 kw) Hatz Diesel Engine
- 6,900 lbs weight with water
- 7’ 6” Diameter Heavy-Duty Frame with PolyTube Brush
- Joystick Control for Travel and Broom Functions
- Hydrostatic Drive
- Variable Brush Speed and Down-Pressure Control - Heavy Duty Gear Pump and Brush Motor
- Fully Enclosed Cab with ROPS and Sliding Window
- Suspension Seat and Tilt Steering Column
- Optional Side-Shift Broom
DIMENSIONS
- Length : 15’ 6”
- Width : 7’ 9” no tilted
- Height : 9’ 1”
- Wheelbase : 7’ 3”
- Turning radius, inside : 4’ 2”
- Turning radius, outside : 13’ 4”
- Total weight : 5,700 lbs w/o water 6,900 lbs w/ water
ADDITIONAL STANDARD EQUIPMENT
- Fully enclosed cab with ROPS
- Suspension seat with armrest and safety belt, sliding window, horn, dome light, defroster fan, 12V outlet, e-stop, cup holder, air conditioner and hearter
- Tilt steering column
- Dual West Coast & 2 convex safety mirrors
- Two LED head lights, stop, turn, tail, rear working lights and amber strobe light
- Back-up alarm
- Horn
- Slow-moving vehicle sign
- Vandalism package
- 2 year standard warranty
FRONT AXLE
- Heavy-duty, limited slip differential
- Tires : ST 225 x 75-15R, load range E
- Rim : 4 steel disc type, 15 x 6”
