Vasco Aster HF Bathroom Radiators

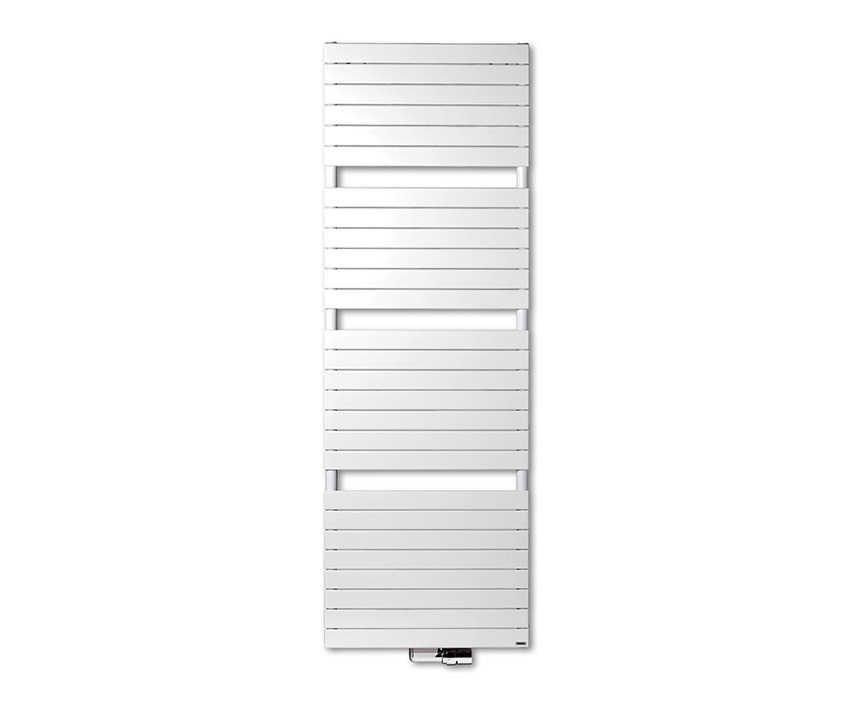

ASTER HF BATHROOM RADIATORS
ASTER HF BATHROOM RADIATORS
The Aster gives minimalism a new dimension with its sleek, contemporary look and its quick, controlled heat output which immerses you in an atmosphere of tranquillity and wellbeing in no time.
information
PRODUCT TYPE
Bathroom Radiators
COLLECTORS
-Vertical -Rear -Round Ø 35 mm
ELECTRICAL
- Mixed radiator
- Pure electrical radiator prefilled
BRACKETS
Wall brackets in the colour RAL 9016 standard. Also in option available in the colour RAL 7016.
ASSEMBLE
Practical and easy to assemble thanks to the intelligent central connection (only Aster HF, not Aster HF2)
TUBES
- Horizontal
- Flat-oval 57,5 x 10 mm
TECHNICAL
- Maximum operating temperature: 120°C
- KTL priming coat, powder coating
- Standard operating pressure: 4 bar
- Welded by means of resistance welding robots (invisible weld seams)
TYPES
HF : 1 row of tubes
USE
Bathroom
ORIENTATION
Vertical
VERSION
Electric Version
BRAND
Vasco
PRODUCTION
Made in Belgium
RADIATOR
Austere contemporary bathroom radiator
DESIGN
Is offered as a single or double design depending on heating requirements
CONNECTION
- Two-point connection for one-pipe system
- Two-point connection for two-pipe system
- Connections: ½" (inner thread)
- For connection at the bottom no fl ow tube is needed, this flow tube will therefore not be delivered.
- For connection at the top a special flow tube has to be ordered separately, which needs to be mounted in the return.
COLORS
BLUE GREEN
NOBLE COLOURS
METALLIC GREY
NATURAL GREY
PURE GREY 2
UNI COLOURS
WHITE BLACK
PURE GREY 1
- RAL 7015 Slate Grey
- RAL 7016 Anthracite Grey
- RAL 7031 Blue Grey
- RAL 7040 Window Grey
- RAL 7046 Tele Grey 2
- RAL 7047 Tele Grey 4
- RAL 9003 Signal White
