KE Gennius Vega Pergola

Sun Jun 18, 2023PergolasConstructionFabric, Steel, Aluminium

GENNIUS VEGA PERGOLA

GENNIUS VEGA PERGOLA

Gennius VEGA, the new outdoor pergola system with a linear design, is characterized by its innovative light inserts.

Its retracting roof is fixed to a system of crossbar profiles and guides and the system allows a horizontal sliding.

information

ENERGY SAVINGS

Considerable energy savings, it reduces heat losses in winter and optimizes the sunrays' impact

PRODUCT TYPE

Pergola

PRODUCTION

Made in Italy

RESISTANCE

-Wind resistance, grade 6 -Sun resistance

ADAPTABLE

Highly customisable and adaptable to different contexts

DETAILS

- Neat design
- It can be closed completely
- Innovative light inserts, used as a furnishing accessory

AVAILABLE COLOURS

WIDTH

Maximum width : 1300 cm

CERTIFIED

Tested and certified CE

USE

Outdoor

SLIDING

Horizontal Sliding

INSTALLATION

There is also the possibility of installing light kits on rails, columns, crossbar, gutter and the installation of light sensors and anemometers with the possibility of remote management through connection devices.

DOWNLOADS

↓ Technical Sheet
↓ Brochure

OPTIONAL

- Light & Gable
- Vertika & Glass

PROJECTION

Maximum projection : 700 cm

MATERIAL

-Steel -Aluminium -Fabric

COVER

Pergola awning with cover fabric fixed on crossbars, horizontally foldable by means of trolleys and guides.

STANDARD COLORS

The standard colors are RAL 9010 White, RAL 1013 Off-white, RAL 7016 Iron, rough Carbon and rough Corten.

GENERAL INFORMATION

- The maximum dimensions allowed are 1300x700 with 300 cm. high pillars. 91 mq coverage area.

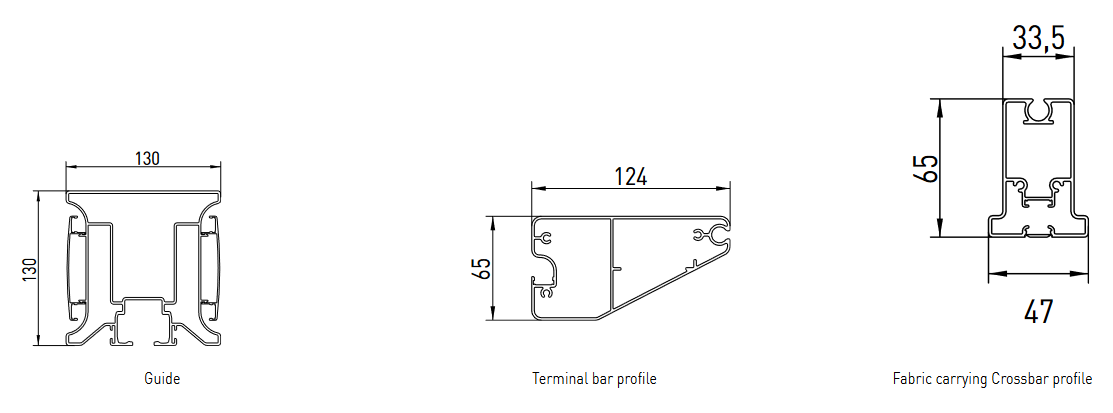

- The profiles are made of EN AW-6060 extruded aluminium alloy (with 13x13 cm guides and columns).
- The structure can be wall-mounted via steel brackets and hardware.
- The painting of the interested parties is carried out with epoxy powders based on polyester resin.
- Précontraint 602 and 622 Blockout are the fabrics available as standard.
- Additional options include other colors, other fabrics as per sample book and motorised movement.
- Possibility of installation of perimeter drop blinds, installation of glass doors, installation of gables.
- Wind resistance guaranteed up to class 6 (EN 13561:2015).
- GTOT solar shading class (EN 14501:2006) assigned to the fabric.
- Product certified with CE marking according to EN 13561:2015
