Ke Isola 2 Pergolas
ISOLA 2 PERGOLAS
ISOLA 2 PERGOLAS
Aluminum shading structure with retractable folding cloth, available in wall-mount and self-supporting versions.
The cloth fixed to a system of crossbar profiles, trolleys and guides and the system allows a horizontal sliding. Vertika Prime can be used for side closings.
information
BRAND
KE
PRODUCTION
Made in Italy
PROJECTION
Maximum projection : 1000 cm
DETAILS
- Modern minimalist pergola that allows to live the outdoor space with all comfort, all year round
- It can give shelter from sunrays, wind, humidity and ensures high protection from rain thanks to its moving-bulkhead system and for its integrated rainwater collection and dreinage system
MATERIAL
Aluminium
PRODUCT TYPE
Pergolas
CERTIFIED
Tested and certified CE
RESISTANCE
-Sun resistance -Water resistance, grade 6
OPTIONAL
-Music -Light -Vertika -Glass
COLOURS
-9010 White -9010 White Matt -7016 Iron Matt -carbon Rough -9003 Cotton Matt -1013 Off White -1013 Off White Matt -9002 White -1015 Sand Matt -9006 Aluminium -9006 Aluminium Matt -9007 Dark Aluminium -9007 Dark Aluminiu Matt -7042 Grey Stone Matt -7021 Off Black Matt -7030 Warm Grey Matt -7006 Dust Matt -7038 Resin -7044 Natustone Mattmatt -1019 Washed Wood Matt -8014 Classic Brown Matt -8017 Ground Matt -3007 Black Red Matt -8019 Night Brown Matt -5000 Monlight Matt -6025 Leaf Matt -6003 Forest Opaco -6007 Mimetic Matt -5002 Prime B Matt -3002 Primer -1023 Prime Y Matt
FEATURES
- Screws : Hidden and included Screws and fasteners into the design
- Arched Roof : The arched shaped roof allows minimum height overall dimensions and enhances the structure design
- The integrated LED spotlights ensure an illumination with reflected light: external, internal
- Clousure : Possibility of side closures with vertical drop drown screens, sliding glass doors and draped curtains
- Automation : Wind, rain and temperature sensors, together with cutting-edge automation
MAXIMUM WIDTH
550 cm
DOWNLOADS
↓ Technical Sheet
↓ Product Details
GENERAL INFORMATION
- Solar shading, freestanding or roof mounted, in aluminium with folding curtain. The sheet - which is taut when fully open - is fixed on arched cross beams and scrolls horizontally on guide-mounted trolleys operated by the tubular motors.
- The maximum dimensions allowed are 550x1000 with 300 cm. high pillars. 55 mq coverage area. The profiles are made of EN AW-6060 extruded aluminium alloy (including the 5.5 x 10 cm guides and 12 x 12 cm columns).
- Each module is motorised separately. It can be mounted as a non-self-supporting structure (models A or T) using steel brackets and hardware. The painting of the interested parties is carried out with epoxy powders based on polyester resin. The standard colors are RAL 9010 White, RAL 1013 Off-white, RAL 7016 Iron, rough Carbon and rough Corten.
- Précontraint 602 and 622 Blockout are the fabrics available as standard.
- Additional options include other RAL colors and KE fabbric in the samples
- Furthermore, options are provided to insert LED strips on the internal perimeter of the gutter and calendered arches, in addition to brightness sensors and anemometers, with the option of remotely managing the awning via connection devices upon request.
- Possibility of installing lateral closures and sliding glass.
- Possible addition of foot with drain and internal corrugated pipe for water drainage.
- Wind resistance guaranteed up to class 6 (EN 13561:2015).
- GTOT solar shading class (EN 14501:2006) assigned to the fabric
- Product certified with CE marking according to EN 13561:2015

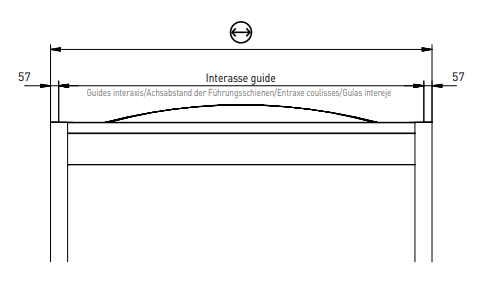

TECHNICAL DRAWING
TECHNICAL INFORMATION
GIRDER SECTION
CLOTH DIMENSIONS
GENNIUS GROUND CONNECTION
GROUND CONNECTION
PROFILES DIMENSIONS
