KE T1 Pergolas

T1 PERGOLAS

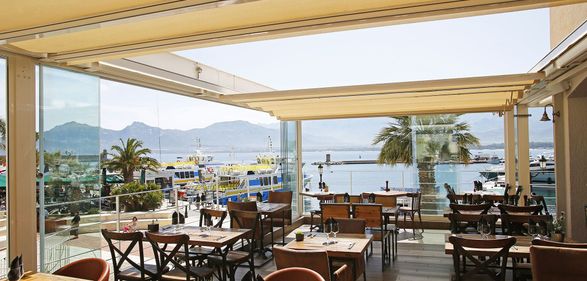

Retractable pergola. The cloth is fixed to a system of crossbar profiles, trolleys and guides and allows a horizontal sliding. Both manual and motorized movement available.

DETAILS

- Applicable to pre-existing structures
- Perfect for wide coverings
- Self-supporting structure extremely simple and solid
- The "light&music" kit and side closings (glass or cloth) can be integrated to live the outdoor space all year round

GENERAL INFORMATION

- Horizontal folding awning with trolleys and guides.
- The maximum dimensions allowed are 1300x80. 104 mq coverage area
- The profiles are made of EN AW-6060 extruded aluminium alloy (with 5.5x10 cm guides).
- It can be recess or ceiling-mounted using steel L-shaped brackets and hardware.
- The painting of the interested parties is carried out with epoxy powders based on polyester resin.
- The standard colors are RAL 9010 White, RAL 1013 Off-white, RAL 7016 Iron, RAL 1013 matt Off white,
- RAL 8014 matt Classic brown, rough Carbon and rough Corten.
- Précontraint 602 and 622 Blockout are the fabrics available as standard.
- Additional options include other RAL colors and KE fabbric in the samples, motorised or winch movement(up to 3 m overhang on single module).
- It is possible to install lighting on the guide and the installation of light sensors and anemometers with the possibility of remote management through connection devices.
- Wind resistance guaranteed up to class 6 (EN 13561:2015).
- Wind-resistant up to Class 6 (EN 13561:2015).
- Product certified with CE marking according to EN 13561:2015
