KE A2 Pergolas
A2 PERGOLAS
A2 PERGOLAS
Retractable roof pergola. The fabric is fixed to a system of crossbar profiles and guides that allows a horizontal sliding.
information
AVAILABLE COLOURS
GENERAL INFORMATION
-Solar shading with cover sheet fixed on crossbars and foldable with horizontal packing, by means of trolleys and guides. -The maximum dimensions allowed are 1300x560 with 300 cm. high pillars. 65 mq coverage area. -The profiles are made of EN AW-6060 extruded aluminium alloy (with 9.5x13 cm guides and columns). -The structure can be wall-mounted via steel brackets and hardware, or ceiling-mounted by adding extruded aluminium brackets. -The painting of the interested parties is carried out with epoxy powders based on polyester resin. -The standard colors are RAL 9010 White, RAL 1013 Off-white, RAL 7016 Iron, rough Carbon and roughCorten.
PROTECT
Sun Resistance
WIND
Wind resistance, grade 6
TECHNICAL INFORMATION

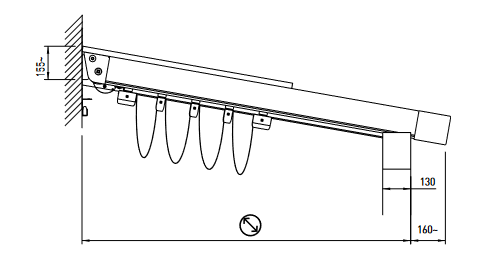

TECHNICAL DRAWING
GIRDER SECTION
PROFILES DIMENSION
PILAR SECTION
GROUND CONNECTION
WALL FIXING
CEILING INSTALLATION
