A100 STAR PERGOLA

A100 STAR PERGOLA

Aluminum compact pergola with retracting roof fixed to a system of crossbar profiles and guides; the system allows a horizontal sliding.

information

SOLAR SHADING

Solar shading with cover sheet fixed on crossbars and foldable with horizontal packing, by means of trolleys and guides.

PRODUCT TYPE

Pergola

PRODUCTION

Made in Italy

RESISTANCE

-Wind resistance, grade 6 -Sun resistance

DETAILS

- Solid, essential design
- Perfect for wide coverings
- Its side closing perfectly match with the profile's neat design

AVAILABLE COLOURS

WIDTH

Maximum width : 1300 cm

CERTIFIED

Tested and certified CE

USE

Outdoor

SLIDING

Horizontal Sliding

STANDARD COLORS

The standard colors are RAL 9010 White, RAL 1013 Off-white, RAL 7016 Iron, rough Carbon and rough Corten.

DIMENSIONS

The maximum dimensions allowed are 1300x500 and 1150x550 with 260 cm. high pillars. 65 mq coverage area.

SOLAR SHADING

Solar shading with cover sheet fixed on crossbars and foldable with horizontal packing, by means of trolleys and guides.

DOWNLOAD

↓ Technical Sheet
↓ Brochure

OPTIONAL

- Light & Gable
- Vertika & Glass

PROJECTION

Maximum projection : 600 cm

MATERIAL

-Steel -Aluminium -Fabric

GENERAL INFORMATION

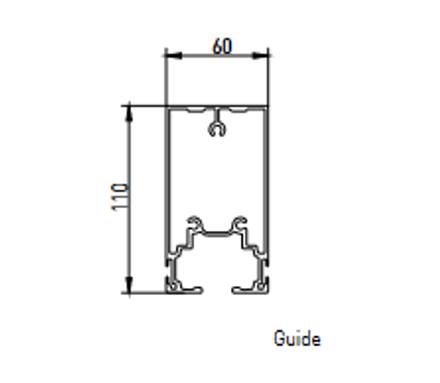

- The profiles are made of EN AW-6060 extruded aluminium alloy (with 6x11 cm guides and columns).
- The structure can be wall-mounted via steel brackets and hardware.
- The painting of the interested parties is carried out with epoxy powders based on polyester resin.
- Précontraint 602 and 622 Blockout are the fabrics available as standard.
- Additional options include other RAL colors and KE fabbric in the samples, motorised or winch movement.
- It is possible to install lighting on the guide and the installation of light sensors and anemometers with the possibility of remote management through connection devices.
- Possibility of installing lateral closures and glabes.
- Wind resistance guaranteed up to class 6 (EN 13561:2015).
- GTOT solar shading class (EN 14501:2006) assigned to the fabric.
- Product certified with CE marking according to EN 13561:2015
