A3 PERGOLAS
A3 PERGOLAS
Aluminum pergola awning. Its retracting roof is fixed to a system of crossbar profiles and guides that system allows a horizontal sliding.
information
RESISTANCE
- Sun resistance
- Water resistance, grade 2
PRODUCTION
Made in Italy
PRODUCT TYPE
Pergolas
CERTIFIED
Tested and certified CE
MATERIAL
Aluminium
DETAILS
- No obstruction of view
- Solid, essential design
- Perfect for wide coverings
COLOURS
-9010 White -9010 White Matt -7016 Iron Matt -carbon Rough -9003 Cotton Matt -1013 Off White -1013 Off White Matt -9002 White -1015 Sand Matt -9006 Aluminium -9006 Aluminium Matt -9007 Dark Aluminium -9007 Dark Aluminiu Matt -7042 Grey Stone Matt -7021 Off Black Matt -7030 Warm Grey Matt -7006 Dust Matt -7038 Resin -7044 Natustone Mattmatt -1019 Washed Wood Matt -8014 Classic Brown Matt -8017 Ground Matt -3007 Black Red Matt -8019 Night Brown Matt -5000 Monlight Matt -6025 Leaf Matt -6003 Forest Opaco -6007 Mimetic Matt -5002 Prime B Matt -3002 Primer -1023 Prime Y Matt
WIDTH
Maximum width : 1300 cm
DOWNLOAD
↓ Technical Sheet
SLIDING
Horizontal sliding
BRAND
KE
PROJECTION
Maximum projection : 900 cm
OPTIONAL
- Music
- Gable
- Vertika
- Light
- Glass
GENERAL INFORMATION
-Motorised solar shading with cover sheet fixed on crossbars and foldable with horizontal packing, by means of trolleys and guides. The maximum dimensions allowed are 1300x900 with 300 cm. high pillars. 104 mq coverage area. The profiles are made of EN AW-6060 extruded aluminium alloy (with 14.5 x 16 cm guides and columns). -The structure can be wall-mounted via steel brackets and hardware, or ceiling-mounted by adding extruded aluminium brackets. - The painting of the interested parties is carried out with epoxy powders based on polyester resin. The standard colors are RAL 9010 white, RAL 9010 matt white, RAL 9003 Cotton, RAL 1013 off white, RAL 1013 matt off white, RAL 9002 white gray, RAL 1015 sand, RAL 9006 aluminium, RAL 9007 dark aluminium, RAL 7042 gray stone, RAL 7016 Iron, RAL 7021 off black, Carbon, RAL 7030 warm grey, RAL 7006 dust, RAL 7038 resin, RAL 7044 natural stone, RAL 1019 washed wood, RAL 8014 classic brown, Corten, RAL 8017 ground, RAL 3007 black red, RAL night brown, RAL 5000 moonlight, NCS S1515-R80B sky ruvido, NCS 1050-B30G pool, RAL 6037 leaf, RAL 6007 mimetic, RAL 5002 prime B, RAL 3002 prime R, RAL 1023 prime Y. -Précontraint 602 and 622 Blockout are the fabrics available as standard. Lighting can also be installed on the cross beams, in addition to brightness sensors and anemometers with the option to remotely manage the awning via connection devices upon request. -It is possible to install lighting on the guide and the installation of light sensors and anemometers with the possibility of remote management through connection devices. Possibility of installation of perimeter drop blinds, installation of glass doors, installation of gables. -Wind resistance guaranteed up to class 6 (EN 13561:2015). -Wind-resistant up to Class 6 (EN 13561:2015). Product certified with CE marking according to EN 13561:2015

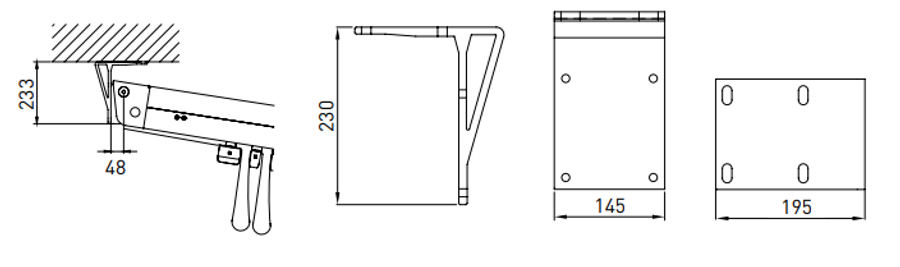

TECHNICAL DRAWING
GROUND CONNECTION
CLOTH DIMENSIONS &TECHNICAL INFORMATION
PROFILES DIMENSIONS
GIRDER SECTION
INSTALLATION
