Vasco Oni O-P Bathroom Radiators

Tue Aug 22, 2023RadiatorsIllumination

Oni O-p Bathroom Radiators

ONI O-P BATHROOM RADIATORS

Wafer-thin, wonderfully warm and a delight for the eye. The new Vasco Oni extends the boundaries of radiator design.

A copper heating tube with minimal water content is integrated into the ultra-thin aluminium front plate (with optional cut-outs for hanging towels).

So this ´floating´ flat radiator is not only beautiful to look at, but also extremely efficient and energy-saving. Ideal in combination with low temperature systems.

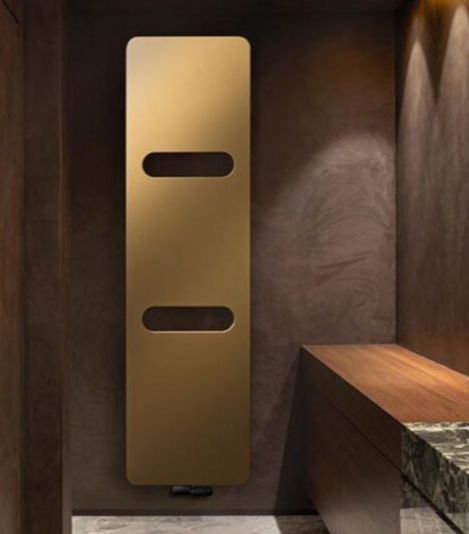

Model O-P is ideal as a designer radiator in the bathroom, since the Oni has an aluminium front plate that warms up and radiates heat very quickly.

In combination with the gently rounded cut-outs for hanging towels the Oni effortlessly ensures that your bath towel is nice and warm in no time.

information

BRAND

Vasco

PRODUCT TYPE

Radiator

BRACKETS

Wall Brackets Standard

TYPES

-Straight (HDM) -Curved (HDRM)

ELECTRICAL

-Mixed rWall brackets standard -White bracket is delivered with white radiator (RAL 9016) -chrome bracket with other

COLOURS

-Standard colour S600 (fi ne texture white) (RAL 9016: no extra charge 15%)-Extensive colour chart see p. 10

TECHNICAL

-Electrically laser welded (invisible weld seams) -KTL priming coat, powder coating -Standard operating pressure: 4 bar -Maximum operating temperature: 120°C

SPECIAL

A copper heating tube is integrated into the ultra-thin aluminium front plate

TIME

Optimal Thermal Radiation and Fast warm-up

LIGHTWEIGHT

Aluminium Plate with Copper Heating Tube

BRACKETS

-Wall brackets in the colour RAL 9016 standard. Also in option available in the colour RAL 7016 (see p. 40).Wall brackets standard -White bracket is delivered with white radiator (RAL 9016) -Chrome bracket with other colours-HDM also available as free -Standing radiator, see p. 40

CONNECTION

-½" (inner thread) -For connection at the bottom a fl ow tube is needed, this flow tube is standard delivered in the right collector. -For connection at the top a special flow tube has to be ordered separately, which needs to be mounted in the return, see p. 345.

SHAPE

Horizontal rectangular pipes on round collector
