GIOIA3D WALL SURFACES
GIOIA3D WALL SURFACES
With Gioia 3D wall, the marble effect continues to amaze with its veins faithfully reproduced in a three-dimensional version.

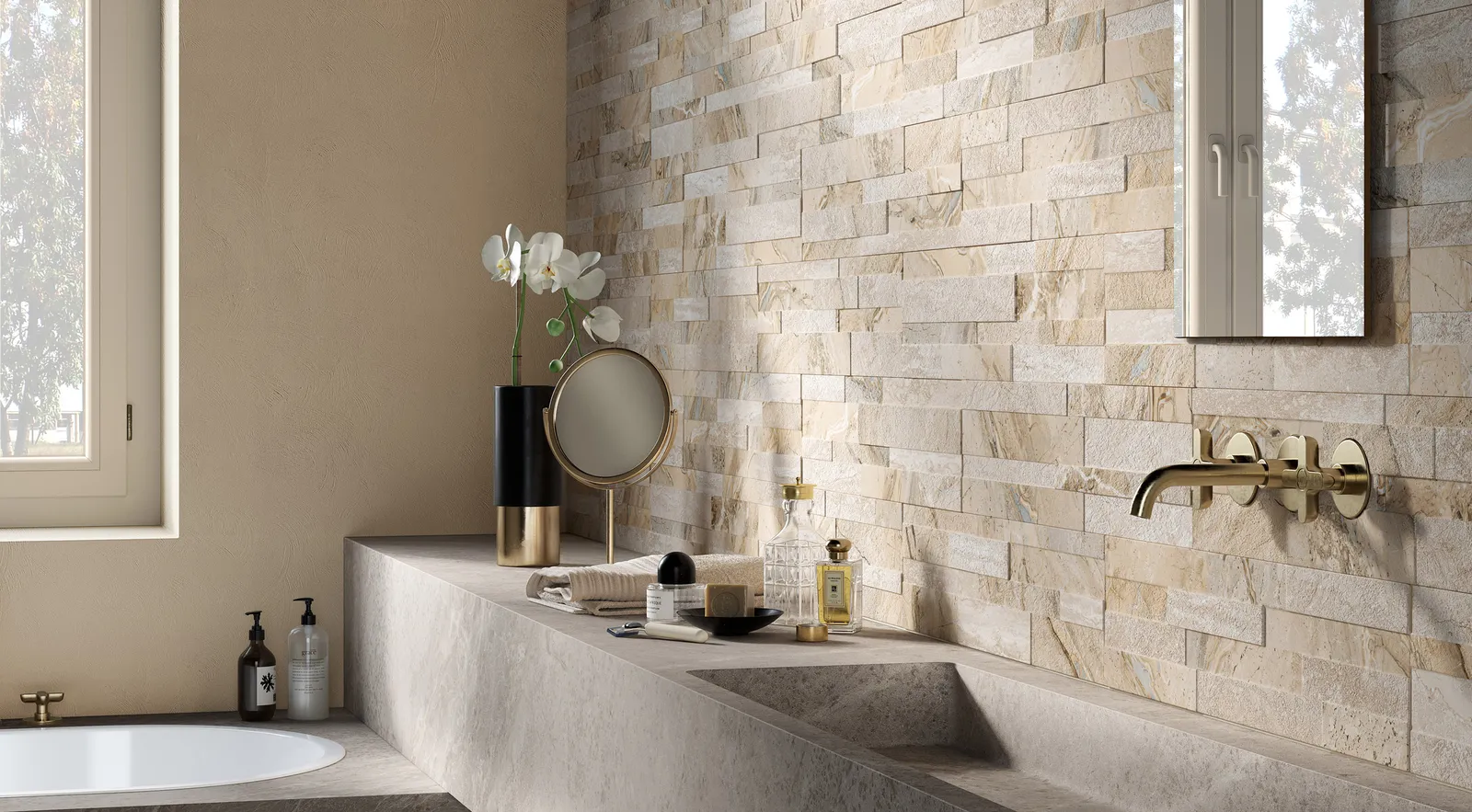

This collection represents the perfect combination of practicality and design, for modern spaces with a sophisticated flavor. Ideal for modernizing a studio, elegant bedroom or refined bathroom, Gioia 3D wall tiles are the optimal result of the union between the safety and practicality of porcelain stoneware and the timeless beauty of marble.

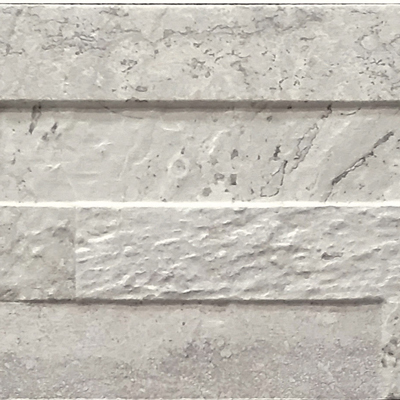

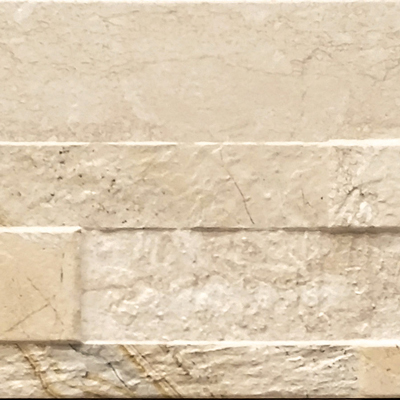

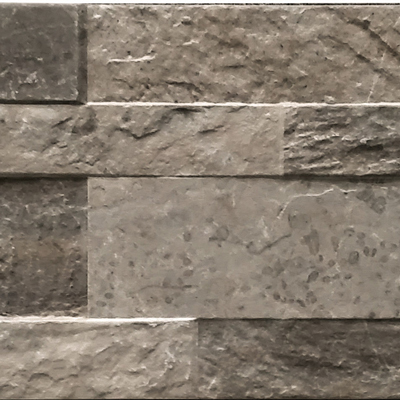

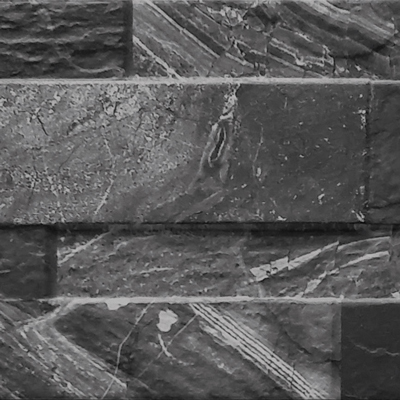

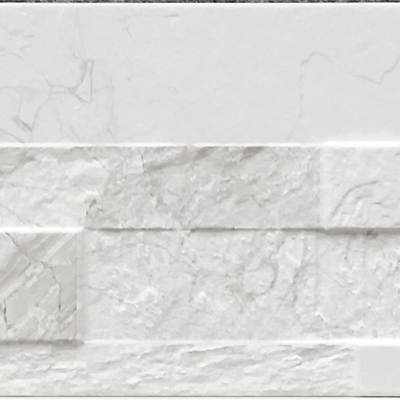

All the realism of the marble stone available in five different shades, in the 15x61 format, and with a thickness ranging from 7 to 11 mm, to create scenographic rooms.
INFORMATION
MATERIAL
Marble Stone
FORMAT
15x61
PRODUCTION
Made In Italy
VERSIONS
Three-dimensional
DOWNLOAD
↓ Data Sheet
↓ Catalog
COLOR CHART
SURFACE
Natural
PRODUCT TYPE
Wall Tiles
NOMINAL SIZES
15x61 cm
CATEGORY
Gioia 3D wall tiles
THICKNESS
7-11 mm
PACKAGE DIMENSION
56.5 x 43 x 18.5 cm
PRODUCT GROUP
BIa-GL
SHADES
Five different shades
BRAND
Ceramicarondine
GIOIA - TECHNICAL SPECIFICATIONS
| TECHNICAL CHARACTERISTICS | TEST METHOD | EN 14411 AND ISO 13006 REQUIREMENTS | ITALCER AVERAGE VALUES |
|---|---|---|---|
| Length and width | ISO 10545-2 | ±0.6% and ± 2.0mm Rect. : ±0.3% and ± 1.0mm | Compliant |
| Straightness of sides | ISO 10545-2 | ±0.5% and ± 1.5mm Rect. : ±0.3% and ± 0.8mm | Compliant |
| Rectangularity | ISO 10545-2 | ±0.5% and ± 2.0mm Rect. : ±0.3% and ± 1.5mm | Compliant |
| Flatness | ISO 10545-2 | ±0.5% and ± 2.0mm Rect. : ±0.4% and ± 1.8mm | Compliant |
| Thickness | ISO 10545-2 | ±5% and ± 0.5mm | Compliant |
| Water absorption | ISO 10545-3 | ≤ 0.5% | <0.1% |
| Modulus of rupture | ISO 10545-4 | ≥ 35 N/mm2 | >40 N/mm2 |
| Breaking strength (S) | ISO 10545-4 | ≥ 1300 N | >40 N/mm2 Breaking strength (S) ISO 10545-4 ≥ 1300 N Compliant |
| Abrasion resistance | ISO 10545-7 | Declared class | / |
| Linear thermal expansion | ISO 10545-8 | Declared value | α ≤ 7.1x10-6 °C-1 |
| Thermal shock resistance | ISO 10545-9 | No alterations | Resistant |
| Frost resistance | ISO 10545-12 | No alterations | Resistant |
| Chemical resistance | ISO 10545-13 | Declared value | LA – HA |
| Household chemicals resistance | ISO 10545-13 | B min | A |
| Stain resistance | ISO 10545-14 | Class 3 min | 5 |
| Mohs Hardness | UNI EN 101 | 5 Min. | 6 |
| Slip Resistance | DIN 51130, DIN 51097, ANSI A137.1, B.C.R.A. Rep. CEC/81BS 7976 | Declared value | / |
| Shade variation | ANSI A 137.1 | Not required | V4 |
| Fire reaction | UNI EN 13501-1 | Not required | A1FL class |
| Thermal Conductivity | EN 12524 | Not required | λ = 1.3 W/m·°K |
| Light and colour fastness | DIN 51094 | Not required | No variations |
