Ropox Swing Washbasin Right Hand Model
SWING WASHBASIN RIGHT HAND MODEL
SWING WASHBASIN RIGHT HAND MODEL
Item no.: 40-40071

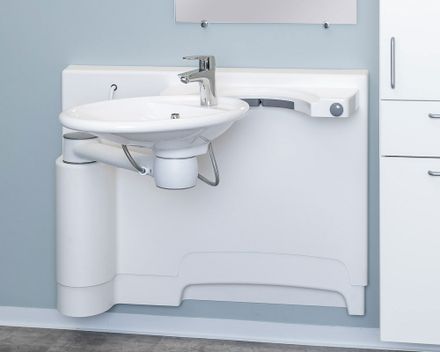

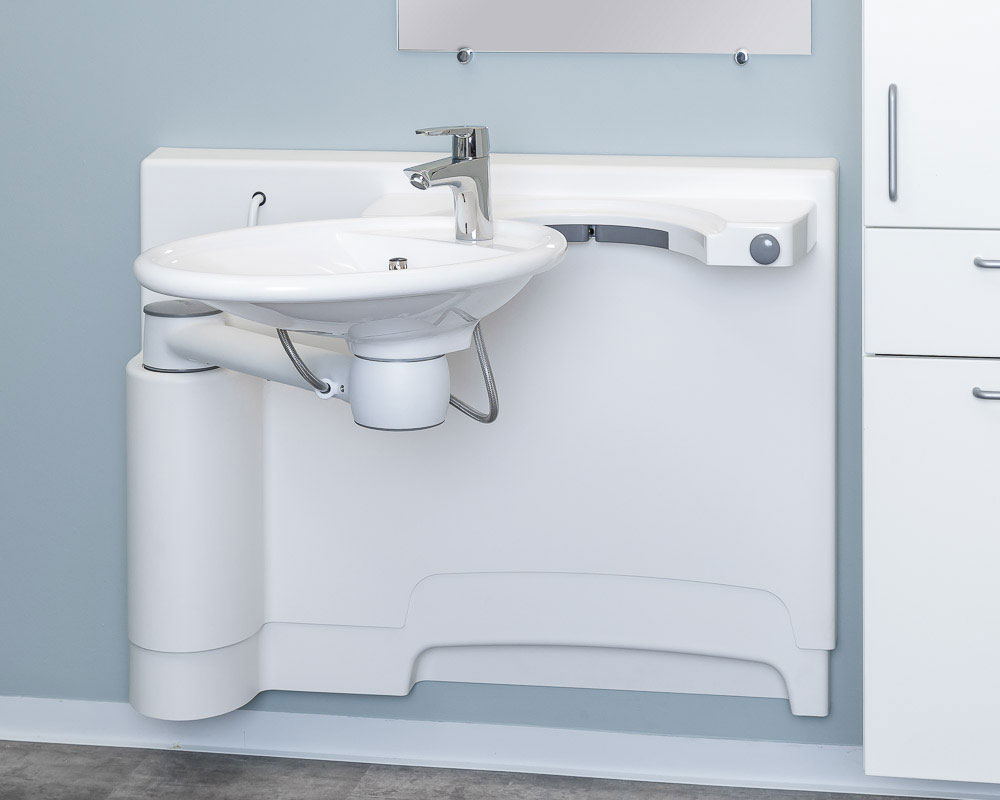

Swing Washbasin and dock-in.
INFORMATION
ITEM NO.
40-41110
USE
Wall Must
CATEGORY
Swing Washbasin
MANUFACTURED
Manufactured in accordance with the following standard: DS/ISO 17966:2016
HEIGHT ADJUSTMENT
- 15 cm without Dock-In
- 20 cm with Dock-In
SIZE
- Height adjustment 75-95 cm by means of a handle.
- Unit size with washbasin locked position: 101x66x70 cm
FLEXIBLE CONNECTING
The models comes with mixer tap, flexible connecting hoses and flexible waste as well as a handle.
MATERIALS
- Materials : Gelcoated composit. Aluminium. Stainless steel. Surface treated steel.
- Functional measurements :The arm swings 180 degrees. The washbasin swings 180 degrees
ADJUSTMENT RANGE
Height adjustment range 200 mm for Swing Washbasin with Dock-In
ACCORDING TO DS/ISO17966
2016, the maximum user weight has been fixed at 245 kg (540 lbs) when the wash basin is in the Dock-in and 80kg (176 lbs) when wash basin is out of the Dock-in
WASHBASIN
The washbasin has no overflow and no intergral trap – this can be purchased.
DOWNLOADS
↓ Ropox The Bathroom Of The Future
↓ Ropox Swingline Washbasin
↓ Ropox Installation Interfaces - Bathroom Products
↓ Ropox User & Mounting Manual - Swing Washbasin With Dock In
↓ Ropox User & Mounting Manual - Swing Washbasin Fixed Hight Or Manual Height Adjustment
↓ Ropox Accessory Kit - For Swing Washbasin
↓ Ropox User Manual Dock-in
CONSTRUCTION
- The wall must be made of a material suited for screw mounting and approved for damp rooms.

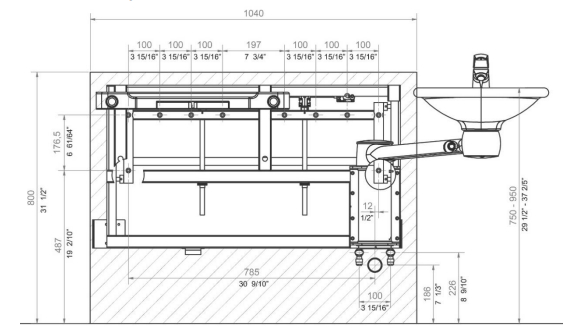

- The hatched area is the minimum area for reinforcement of the wall. Reinforcement from floor to ceiling is advisable
- Max. tensile load of upper screws : 120kg/screw (264lbs/screw)
- The washbasin is supplied with a set of 10 screws and rawlplugs suitable for mounting on a concrete wall. The fitter should always consider the material, condition and strength of the wall and use screws and rawlplugs suitable for the specific wall type.
A FLEXIBLE WASHBASIN THAT MAKES IT EASY TO WASH HANDS
- The swing washbasin is recommended for both seated and standing users. You can adjust the height and rotate it 180˚, and you can pull it to the user.

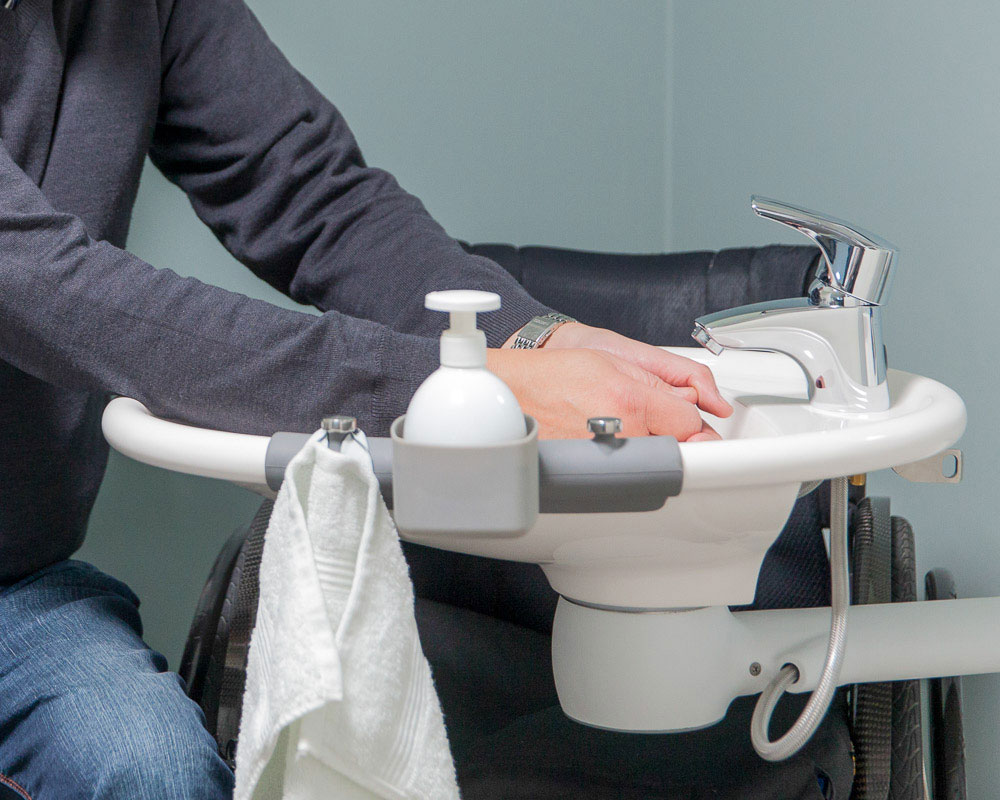

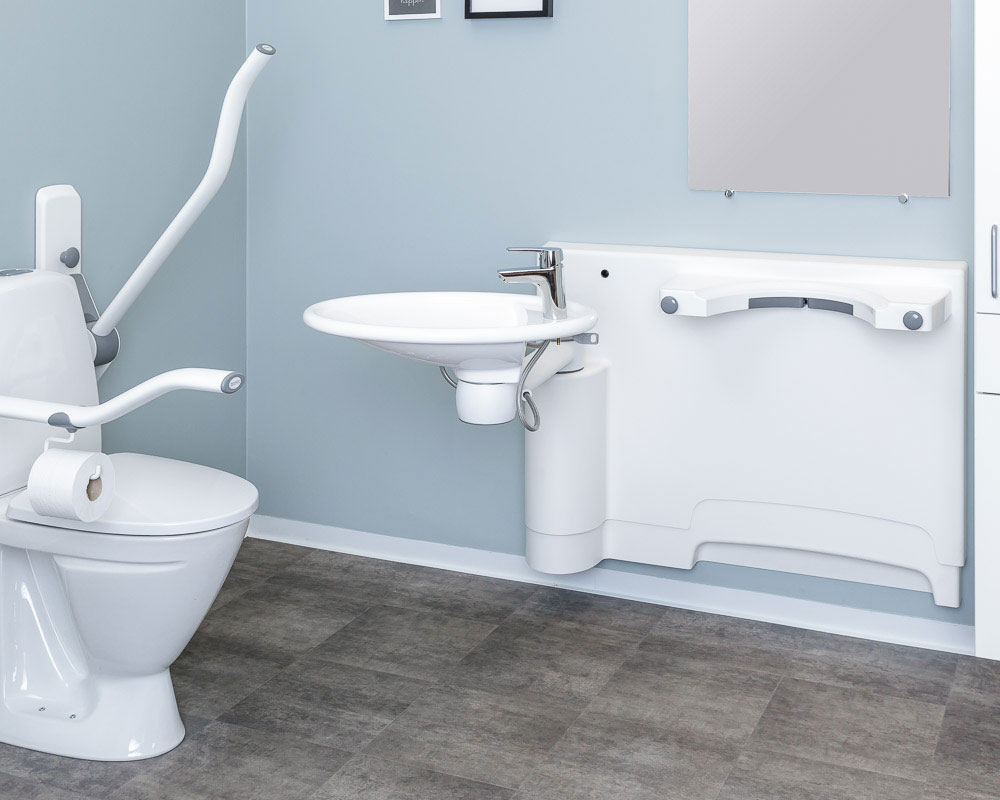

- Walking-impaired users are particularly content with this washbasin because it can be pulled to the toilet. This means that they do not have to get up to use it, but instead, they can safely wash their hands while seated on the toilet.
- The swing washbasin is also very practical for wheel-chair users. You can move the basin when required, e.g. push the washbasin to the corner when you need extra room for turning the wheelchair.
- The swing washbasins with a lifting unit can easily be adjusted in height when needed. The simple design without any dirt traps makes it easy to clean.
PLUMBING
- The drain hose is a flexible Ø32 (1 ¼”) hose.
- The water supply ends in 2 (two) 90° shut-off valves with ½” or 3/8” outside thread pointing downward (not included).
- The flexible water connection hoses from the washbasin end in Ø10 pipes. Adapter fittings from these pipes to the shut-off valves are available with Ropox and as standard plumbing components. If a location of the drain higher than the recommended positioning is required, there may be a risk of reduced draining from the washbasin.
- For purchase of adapters for connection to various standard installations, see ”Connection Adapters – Swing Washbasin”.
