Fischer SCN 16 Locking Clip
SCN 16 LOCKING CLIP
SCN 16 LOCKING CLIP
The fischer locking clip SCN is the easy-to-install and safe solution for fastening plastic insulating pipes and electric empty pipes. The locking clip is fixed to a wide variety of substrates using fischer screw and 2-component DuoPower plastic plug.
When pressing, the clip automatically embraces the pipe and locks it securely. The plastic is halogen- and silicone-free and can also be used under frosty conditions. The coupling system allows additional clips to be added to an already installed clip - without additional drilling. This saves installation time and money.
INFORMATION
OUTSIDE DIAMETER OF PIPE
16 mm
BRAND
Fischer
AMOUNT
100 pcs.
CLAMPING RANGE
16 mm
PRODUCTION
Made in United Kingdome
GTIN (EAN-CODE)
8001132012611
PIPE TO WALL DISTANCE
11 mm
PRODUCT TYPE
Locking Clip
DIMENSION OF SLOT
4.5 x 4.5 mm
TOP FEATURES
- Couplings on both sides allow clips to be coupled together.
- Flexible fixing with plugs and screws or 11 mm C-profile rails.
- made of high profile nylon, halogen free, silicone free, frost proof.
- Comfortable and safe installation through automatic and reopenable locking.
APPLICATION
-Plastic, empty pipes -Flexible and rigid electric tubes -Aluminium-, copper- and steel pipes
DIMENSIONS
- Height : 30 mm
- Length : 30 mm
- Width : 16 mm
BUILDING MATERIALS
- Concrete, Solid brick & Solid sand-lime brick
- Aerated concrete, Vertically perforated brick & Perforated sand-lime brick
- Plasterboard -Gypsum plasterboard and gypsum fibreboards
- Hollow blocks made from lightweight concrete
- Cavity floor slabs made from bricks and concrete or similar
- Natural stone, Chipboard, Solid panel made from gypsum & Solid brick made from lightweight concrete
FUNCTIONALITY

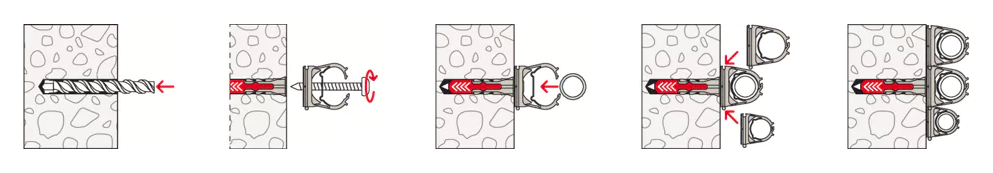

- The locking clip SCN is fixed in pre-positioned installation with a suitable plug and screw or in 11 mm C-profile rails.
- Due to the mechanical locking, the pipes are securely fixed with the clip.
-Installation temperature -20 °C + 60 °C -Temperature resistance when installed -40 °C to +80 °C.
ADVANTAGES
-When pressing, the locking clip SCN automatically embraces and locks the pipe, thus enabling convenient installation. -The integrated slotted hole allows for an easy and adjustable installation. -Flexible mounting with plugs and screws or with 11 mm C-profile rails. -The mechanical lock provides a secure and reopenable fixing. -The double-sided couplings allow several clips to be coupled together. This saves installation time and money. -The durable nylon material is halogen- and silicone-free, allows year-round use even under frost and thus ensures a high level of safety.
