Fischer RC IEC 12 Pipe Clip
RC IEC 12 PIPE CLIP
RC IEC 12 PIPE CLIP
The fischer pipe clip RC is an easy-to-mount solution for pipe fixings.
The pipe clip is secured in the drill hole with the, for example, fischer DuoPower or the fischer Hammerfix N 6.
When fixing in concrete and solid building materials, Hammerfix N can be used, when fixing in perforated and panel building materials, the DuoPower for example.
After installation, the plastic insulation pipes are inserted in the pipe clip. The pre-tensioning of the pipe clip holds the pipes securely. The fischer Pipe clip RC is ideal for fixing plastic insulation pipes easily.
INFORMATION
GTIN (EAN-CODE)
4006209581940
AMOUNT
100 pcs.
SUITABLE FOR IEC
12
CLAMPING RANGE
12 - 13 mm
DIMENSION OF SLOT
6 x 7 mm
PACKAGING
Folding box
APPLICATION
For fixing of : Flexible and rigid plastic insulating pipes
HIGH FLEXIBILITY
Assembly possible with fischer clip fixing SD, Hammerfix N or fischer DuoPower.
ADVANTAGES
- The pipe clip RC can be used with pre-installed clip fixing SD, with Hammerfix N 6 or in 11 mm C-shaped profile-rails, and thus allows for a flexible and cost-effective installation.
- Two additional pipe clips can be added to the sides of a pre-fixed pipe clip. This saves assembly time and materials.
- The 6 mm-long hole allows for the optimal alignment of the pipe fixing and ensures a more user-friendly installation.
- The long-lasting nylon material is halogen- and silicone-free. It can be used all year round, including during a frost. This ensures a high level of safety.
TOP FEATURES
- Compatible with 11 mm profile rails.
- Simple assembly due to a slot. This saves time during adjusting.
- Made of hight quality Nylon without halogens and silicone.
- Coupling upto three pipe clips. This saves on additional drilling.
TECHNICAL DRAWING
BUILDING MATERIALS
When using ClipFix SD :
-Concrete -Solid Pumice Block -Solid Sand-Lime Brick -Natural Stone With Dense Structure -Solid Brick
BRAND
Fischer
PRODUCTION
Made in United Kingdome
FUNCTIONALITY

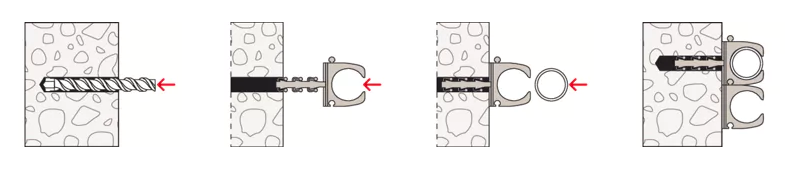

- Plastic insulation pipes are laid into the pipe clip. The pre-tensioning of the pipe clip holds the pipes securely.
- The pipe clip RC is adapted to be fixed with either clip fixing SD or Hammerfix N 6.
- Manually place the ClipFix plus SD directly into the drill hole. No additional screws are needed.
- The Hammerfix N is expanded when the nail is driven in, and holds by friction in the drill hole.
- Temperature resistance once installed from -20 °C to +80 °C.
