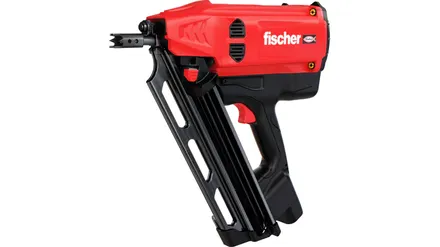

Fischer Gas Actuated Fastening Tool Fgw 90f
GAS ACTUATED FASTENING TOOL FGW 90F
GAS ACTUATED FASTENING TOOL FGW 90F
The fischer FGW 90F gas-actuated setting tool drives nails precisely into the wood substrate with 90-joule setting energy. Thus, up to three fastenings can be achieved into the working surface per second. The powerful battery lasts for 8,000 fixings per charge under normal conditions.
The wide range of nails is suitable for a variety of materials, such as solid wood, laminated timber, plywood as well as chipboard, fiberboard and veneer materials.
INFORMATION
GTIN (EAN-CODE)
4048962438048
ART.-NO.
560041
PRODUCTION
Made In Germany
APPLICATIONS
-Wood frame construction -Roof battens -External cladding -Stud work
-Fencing -Over boarding -Truss work -Flooring -Packaging
DOWNLOADS
↓ Data Sheet
↓ Cleaning Instruction
DIMENSIONS
390 x 108 x 381 mm
DIMENSIONS ACCESSORIES
- 90 Joules Setting Energy
- 3.8 Kg With Battery
- 34° Angle Of Magazine
- Capacity Of 60 Nails
CONTENTS
- 1 x fischer gas actuated fastening tool FGW 90F
- 1 x Protective cap
- 1 x Battery charger BC 7.2 V incl. charging plug for UK
- 1 x Li-Ion battery B 7.2 V 2.5 Ah
- 2x Hex wrench
- 1 x XL-BOXX
BUILDING MATERIALS
- Solid Wood
- Laminated Timber
- Plywood
- Chipboard
- Fiberboard
- Veneer Materials
FEATURES
ADVANTAGES
- The 90 joules power ensures correct penetration into the working surface with up to three fixings per second.
- Maintenance intervals after every 20,000 fixings, under standard conditions, ensure a long service life.
- The powerful rechargeable battery with Li-Ion power can be used for more than 8,000 fixings per charge. It is also suitable for the fastening tool FGC 100.
- The embedment depth of the nails can be easily adjusted to the application.
- Ring and smooth shank nails in different lengths allow universal use.
- The FGW 90F is supplied in the practical XL-BOXX, which is compatible with the L-BOXX.
FUNCTIONALITY
- The FGW 90F is suitable for a fast and reliable installation with up to three fixings per second and more than 1,100 fixings per fuel cell.
- For optimum installation, the nose piece of the tool must be positioned correctly on the working surface.
- The LED display indicates the status of the battery, which is fully charged after 90 minutes (under standard conditions). After a charging time of only 10 minutes, 300 more nails can be fixed.
- The FGW 90F will operate within the temperature range of -7°C to +50°C.
- The tool can be easily transported and stored with the adjustable hook.
INSTALLATION
APPLICATIONS
FENCING
Easy and exact nail depth adjustments for various applications.
ROOF BATTENS
The ability to use fixings in fast frequency enables to get the work done quickly - 3 per second.
EXTERNAL CLADDING
Protective cap to protect timber surfaces in visible areas e.g. external cladding.
STUD WORK
The FGW 90F has perfect balance in overhead fixings.
TIMBER FRAMING
For fast and reliable fixing in timber framing.
OVER BOARDING
The FGW 90F is suitable to cover insulation fills.
TRUSS WORK
High-grip nose for optimum precision while working.
FLOORING
For fixing boards to floors.
PACKAGING
The FGW 90F is suitable for numerous applications.
