THERMOSLATE SYSTEM WITH HOOK
THERMOSLATE SYSTEM WITH HOOK
THERMOSLATE generates renewable solar energy while untouching the beauty of the roof and natural slate.
The THERMOSLATE hook installation provides a perfect integration to roofs using 3.5mm thick slates and traditional fixings.

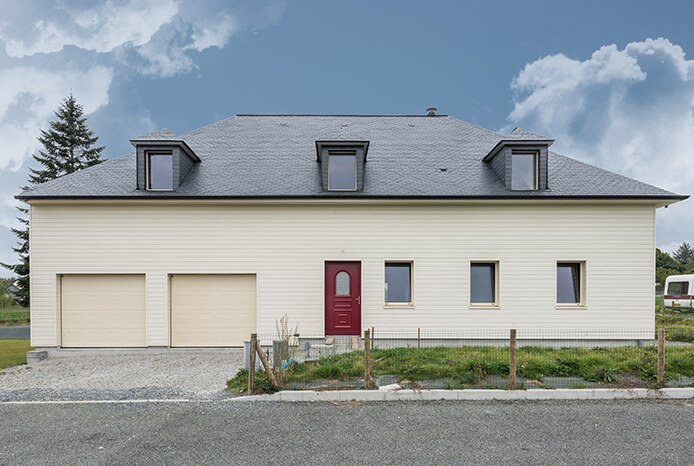

The result? A natural slate roof which has less environmental impact and an innovative invisible solar system.
INFORMATION
QUANTITY OF FLUID (M2 )
0,38L
WEIGHT M2 (EMPTY)
21 Kg
SLATE FORMAT (cm)
THS.4022.S11 : 40x22
PRODUCTION
Made In Spain
EXTERNAL DIMENSION
THS.4022.S11 : 2458x745x37
TOTAL AREA (M²)
THS.4022.S11 : 1,83
FIXINGS
-Visible -Hook
USE
Roofing
OVERLAP
THS.4022.S11 : 11
SLATE DIMENSIONS
- 32x22cm
- 35x22cm
- 40x22cm
FEATURES
- The THERMOSLATE® system with hooks is compatible with the most widely used natural slate formats, 22 cm wide and 32 cm length, ensuring perfect adaptation of the solar thermal collector to any roof.
- THERMOSLATE® solar collectors are completely imperceptible once properly installed.

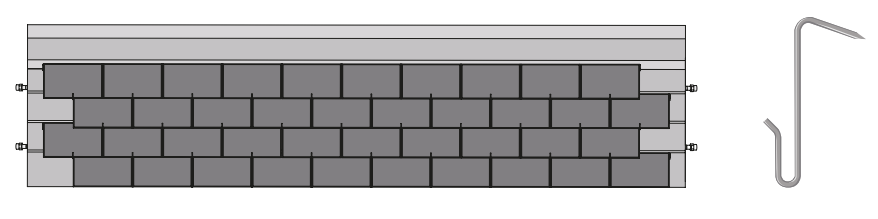

SOLAR COLLECTOR DETAIL | INSTALLATION WITH HOOK
THERMOSLATE® thermal solar collectors, with a natural slate finish and installed with a hook, are compatible for perfect integration on roofs using 22 cm wide slate formats with varying lengths.
The result is the combination of a traditional natural slate roof and an innovative solar capturing system with a perfect look.
CHARACTERISTICS
- THERMOSLATE is compatible with any accumulator and pump brand and model on the market. Likewise, it is also compatible with radiant flooring systems or low-temperature convectors (radiators of 45°C – 60°C)
- The THERMOSLATE® hook fixing system allows completely undetectable integration of the thermal solar collectors into any traditional natural slate roof. The stainless steel hooks facilitate perfect fitting of each of the slates. This means that, as well as taking advantage of the sustainability of renewable energies, THERMOSLATE® enhances the natural beauty of slate roofs.
