THERMOSLATE SYSTEM WITH NAIL
THERMOSLATE SYSTEM WITH NAIL
THERMOSLATE® enables you to take advantage of the efficiency of renewable energies without forgoing the elegant, sophisticated design of a natural slate roof.
The THERMOSLATE® solar thermal collector system, in natural slate installed with nails suits 50×25 cm format natural slate roofs perfectly.
THERMOSLATE® maintains the aesthetics and strength of 5 mm thick natural slate at the same time as becoming an active feature in the construction, with high added value.
INFORMATION
QUANTITY OF FLUID/M2
0,38L
WEIGHT/M2 (EMPTY)
20 Kg
SLATE DIMENSIONS
50x25cm
OVERLAP
10 cm
EXTERNAL DIMENSION
2267x743x37
NOMINAL COLLECTOR THICKNESS
35mm
FEATURES
The THERMOSLATE invisible nail fixing is available in the 50×25 format. This system integrates with the rest of the natural slate roof and is a completely invisible solar panel system.
TOTAL AREA (m²)
1,68
TOTAL CATCHMENT AREA (m²)
1,45
DOWNLOAD
↓ Data sheet
USE
Roofing
PRODUCTION
Made In Spain
FIXINGS
- Invisible
- Nail
CHARACTERISTICS

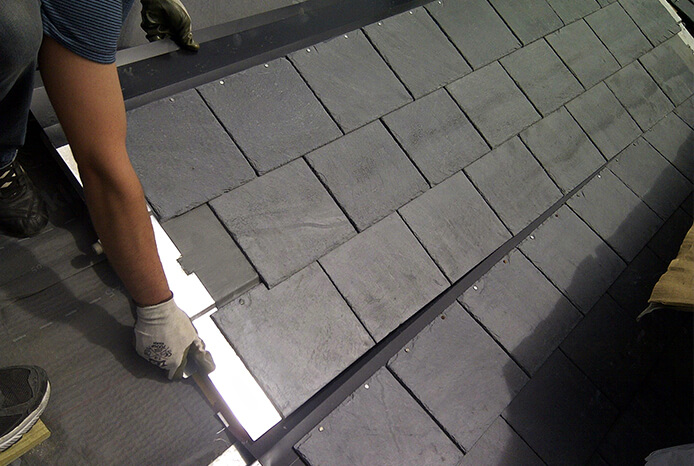

- The THERMOSLATE® with nails system is made up of CUPA PIZARRAS’ natural slate installed with an invisible fixing system.
- The nails are made from stainless steel and ensure perfect integration: they are totally concealed so avoiding any visual impact on the roof design.
