SERIES 7950 BI-FOLD DOOR
SERIES 7950 BI-FOLD DOOR

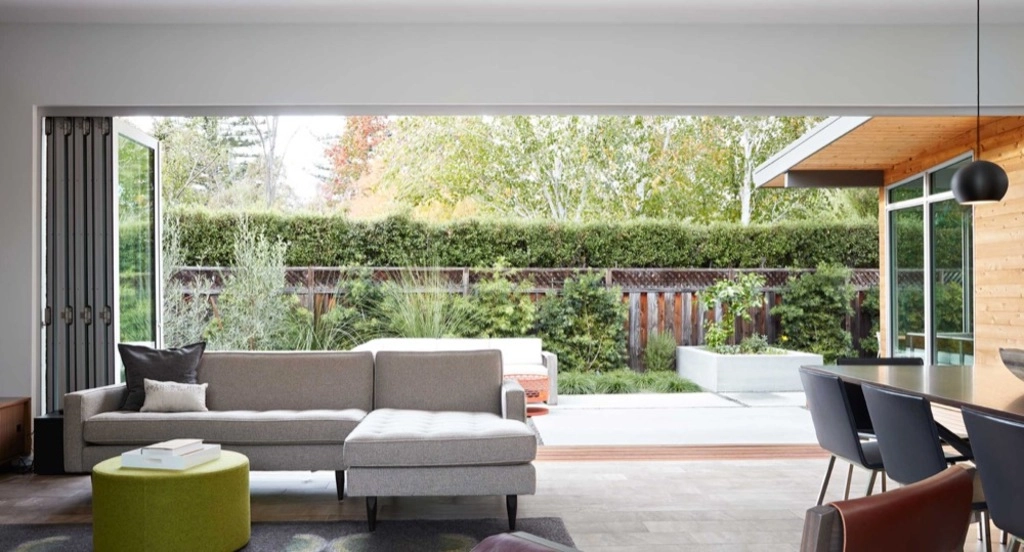

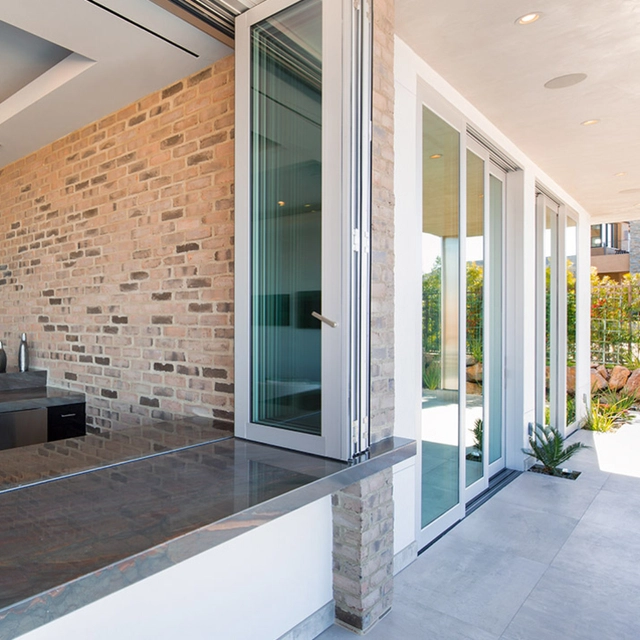

The Series 7950 Bi-Fold Door features large glass panels that smoothly fold and stack against side walls, creating extra-wide openings for indoor-outdoor commercial and living spaces.
Convenient interior or exterior folding configurations and optional swinging panels make access simple when you don’t want to open the entire bi-fold system. Even with extreme panel sizes, it is easy to operate, thanks to sealed stainless steel ball bearing rollers.
For strength against the elements, the door delivers a DP50 rating and is STC-rated for acoustic performance. The Series 7950 can be designed as a bi-fold window or door system in heights up to 12 feet in select configurations incorporating heavy-duty hardware.
INFORMATION
SIZES
Large panel sizes
FRAME DEPTH
5 7/8”
USE
External windows
CSA A440 AIR
A3
WATER RESISTANCE
7.5 psf
UNIFORM LOAD DEFLECTION
50 psf
UNIFORM LOAD STRUCTUR
75 psf
U-FACTOR (PER NFRC 100)*
0.30
CR (PER NFRC 500)*
58
TEST CONFIGURATION
144” x 96” 1L3R E3 Swing Out
CERTIFICATION
California’s Title 24 compliant
AIR INFILTRATION (PER ASTM E 283)
08 cfm/sf @1.57 ps
FORCED ENTRY RESISTANCE
- ASTM F842 Type A
- CAWM 300 Type I and AAMA 1304
FEATURES
- Industry-leading U-factors
- Single-track operation
- Multiple sill height options
- Premium Hardware
HARDWARE
Stainless steel head load carriers and hinges are available in standard and heavy-duty capacities for extreme panel sizes and heavy glass types. A hidden stainless steel multipoint lock secures the folding panels.
AAMA PRODUCT DESIGNATION (AAMA/WDMA/ CSA101/I.S.2/A440 DESIGNATION)
PG50- 144x96-SP
TYPE

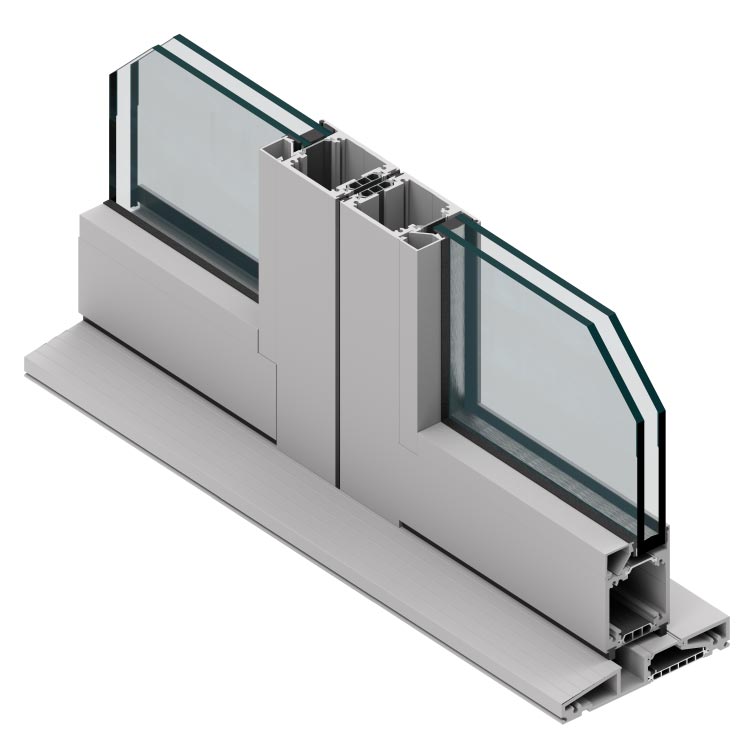

-Hardware - Swing Out - Flush Threshold

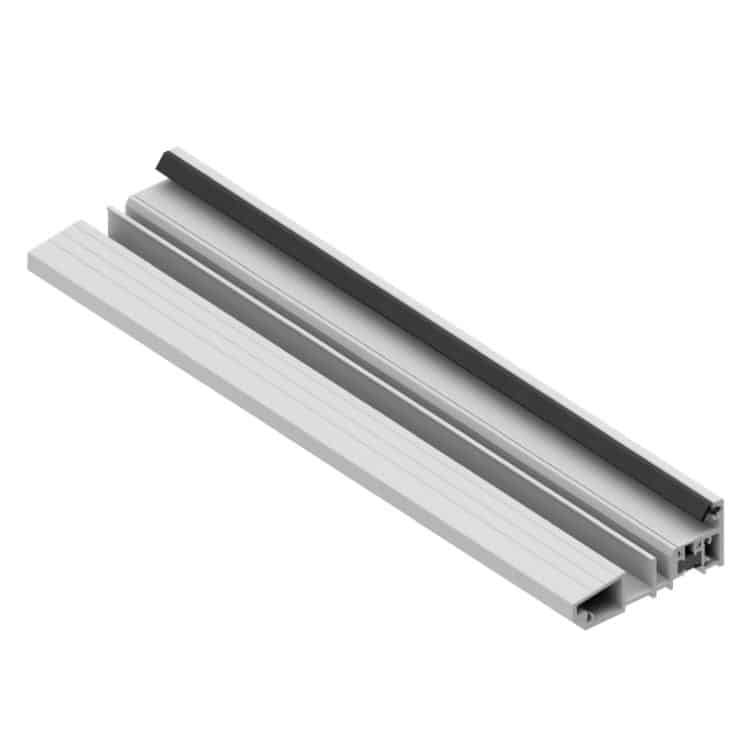

-Hi-leg Threshold - Swing Out

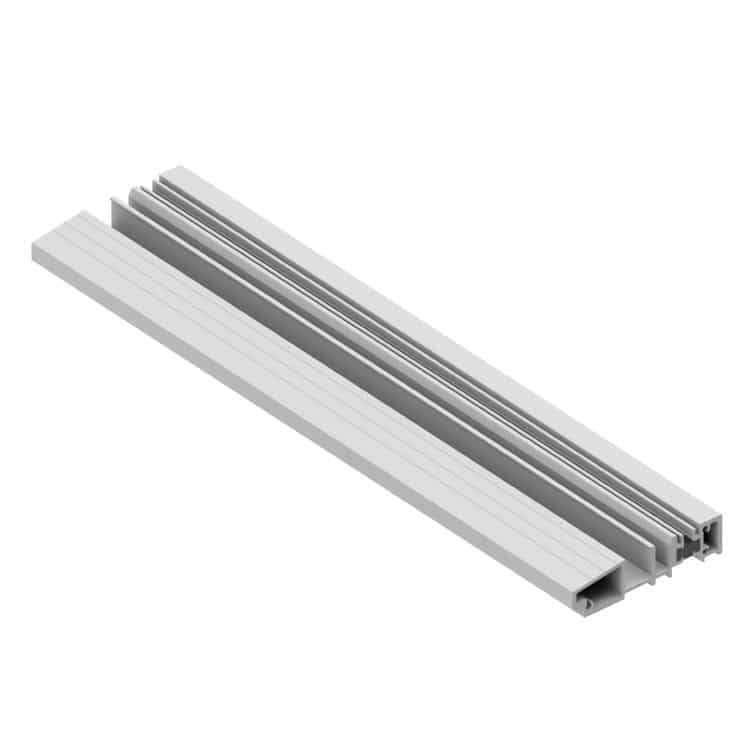

-Flush Threshold - Swing Out

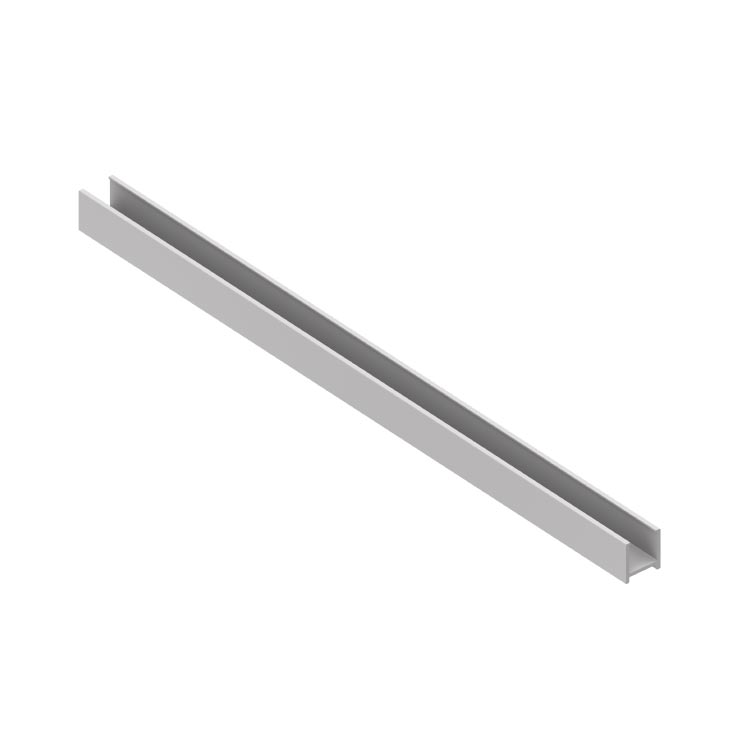

-U-channel Threshold - Swing In / Swing Out
ENERGY EFFICIENCY
A .30 U-value for standard low-E, argon-filled dual-pane glass from Cardinal IG gives the door excellent energy eff iciency. An aluminum extrusion utilizing Insulbar technology further improves energy performance. The door is compliant with California’s rigorous Title 24 requirements and can be customized in a variety of panel counts and configurations. The aluminum frame and panels are thermally broken to reduce heat and cold transfer. NFRC labeling is included to comply with energy code requirements.
OPTIONS
Top-load floor tracks come standard with the 2”-tall water-barrier sill, which safeguards against water intrusion. At just 0.958” tall, the optional flush sill lines up with most interior flooring. An optional U-track allows for a flush transition from room to room. The door includes three high-quality handles: the Dallas handle, located on all active panels; a D-shaped pull handle, at the bi-fold’s pivot points; and an inactive lock handle, at the door’s pivot points, which secures the panels with steel pins at the head and sill. The Dallas handle has a keyed cylinder.
FINISHES AND COLORS
Finishes are available in-stock or as designer selections, and they can be customized to match nearly any color. Split finishes are available in many combinations. Bronze Anodized and Satin Anodized come standard with a Class 1 coating thickness for increased smoothness and durability. Our designer colors include a high-quality paint finish that conforms to a minimum rating of AAMA-2605, currently the highest rating for organic finishes.
