MONOLITH D SERIES SINK COLLECTION
MONOLITH D SERIES SINK COLLECTION
The Type D series is an ADA-compliant, solid surface sink designed for use with wallmounted fixtures.
The 48” single user basin has a 12” countertop on both sides. This basin style is also available in two, three, or four-user lengths. Optional pipeskirts are avalible in three finishes.
INFORMATION
WARRANTY
Sinks carry a lifetime warranty on materials used.
MATERIALS
- Basin - solid surface
- Brackets - powder coated steel
USE
Bathroom Sink
DESIGN
Minimalist design
PIPESKIRT STYLE
FINISHES
- Corian Glacier white is our stock finish.
- The Monolith can be fabricated in any commercially available solid surface finish.
CONSTRUCTION
100% solid surface construction
SUITABLE
Suitable for wall-mounted fixtures
COLORS
BRAND
The Splash Lab
PRODUCT TYPE
Washbasins
FABRICATION
-CNC-machined and finished by hand -Los Angeles and British Columbia
FEATURES
-Pipeskirt options available -One trade install with modular bracket system
PRODUCT LENGTH
INSTALLATION REQUIREMENTS
- Wall Construction : Brackets included. Installer should ascertain that wall construction is sufficiently designed to support the Monolith.
- Wall Mounting : Must be fixed to a suitable wall substrate to allow for the correct use of The Monolith. The Splash Lab recommend that installers contact a specialist for advice to ensure the correct fixings are used for the location. Mounting hardware is not included with The Monolith.
- Plumbing : Connection to 1 1/4” waste outlet required. (one connection per user) Installer to provide water for taps. See separate datasheets for The Splash Lab sensor taps.

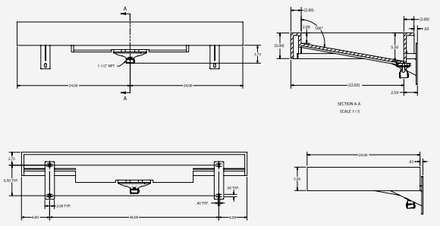

TECHNICAL DRAWING
DIMENSIONS- 48" - 1 USER
DIMENSIONS- 84" - 2 USER
DIMENSIONS- 120" - 3USER

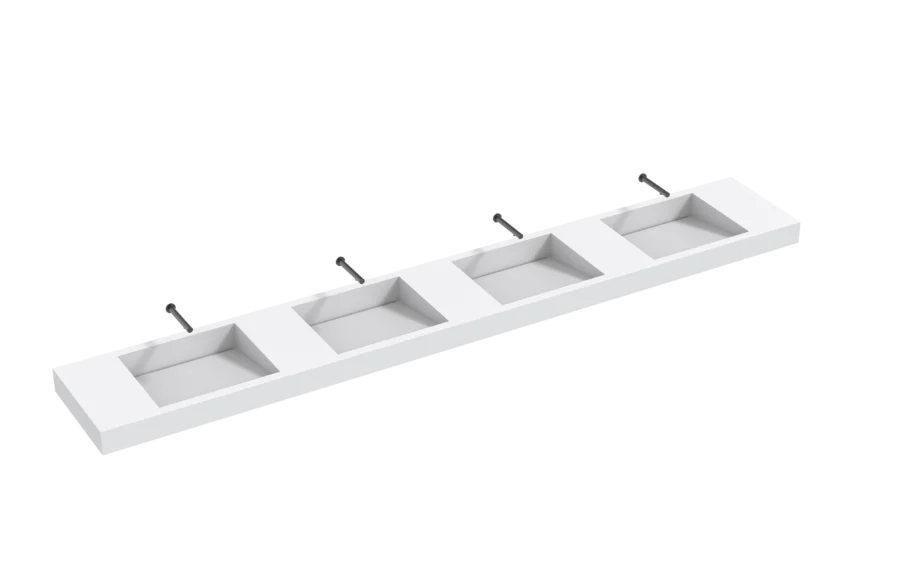

DIMENSIONS- 156" - 4USER
