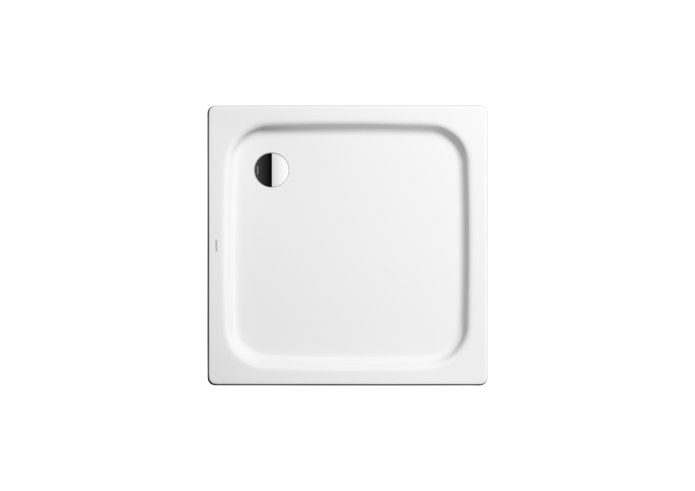

Kaldewei Duschplan Shower Trays Floor Level
DUSCHPLAN SHOWER TRAYS FLOOR LEVEL
DUSCHPLAN SHOWER TRAYS FLOOR LEVEL
Designed by Phoenix Design
The simplest things in life are often the most refreshing.
Like the DUSCHPLAN with a modern, timeless design and a depth of only 6.5 cm. This classic among shower trays can be easily installed in any bathroom.
INFORMATION
APPLICATIONS
Bathrooms
MODEL
392
PRODUCTION
Made in UK
USE
Interior
NET WEIGHT
27 kg
DESIGN
Modern
HEIGHT OF RIM
C4 : 32 mm
DEPTH INSIDE
C1 : 65 mm
DIMENSIONS
- External Length A1 : 1000 mm
- Internal Length A5 : 870 mm
- External Width B1 : 1000 mm
- Internal Width B5 : 870 mm
CHARACTERISTICS
- Easy to clean
- Hygienic
- Heat resistant
- Chemical resistant
- Retains colour over time
- Made from steel enamel
- Large selection of colours
- Eco-friendly manufacturing, recyclable
DIAMETER ANTI-SLIP
Ø 588 mm
WIDTH OF RIM
E5 : 65 mm
EXTERNAL RADIUS
R1 : 12 mm
GUARANTEE
30-year guarantee
FEATURES
- A classic among shower surfaces
- Modern, clear design with a depth of only 65 mm
- Waste cover integrated almost flush into the shower surface (only in combination with the KA 90 waste fittings)
DISTANCE BATH EDGE TO CENTRE OF WASTE HOLE
-F 2 -F 3 200; 200 mm
DIAMETER OF WASTE HOLE
F9 : Ø 90 mm
DOWNLOADS
↓ Data Sheet
↓ 2D and 3D data
VERSION
- Square
- Rectangular
TECHNICAL DRAWING
FORMAT
- Slabs
- Plates
- Panels
MATERIAL
- Metal
- Glass
- Composite Materials
DETAILS
STEEL ENAMEL
KALDEWEI steel enamel is extremely resistant, durable and sustainable. Robust steel and fine glass, two authentic, natural materials form an inseparable bond.
DESIGN
An exquisite, sustainable material like KALDEWEI steel enamel deserves a timeless design. Our bathroom objects will touch and delight you each day. In addition to our own creations, we rely on the expertise of renowned designers.
SUSTAINABILITY
We live and produce sustainability. Steel enamel is made from natural raw materials and is 100 percent recyclable after a long life cycle. That makes KALDEWEI steel enamel the most sustainable material in your bathroom!
