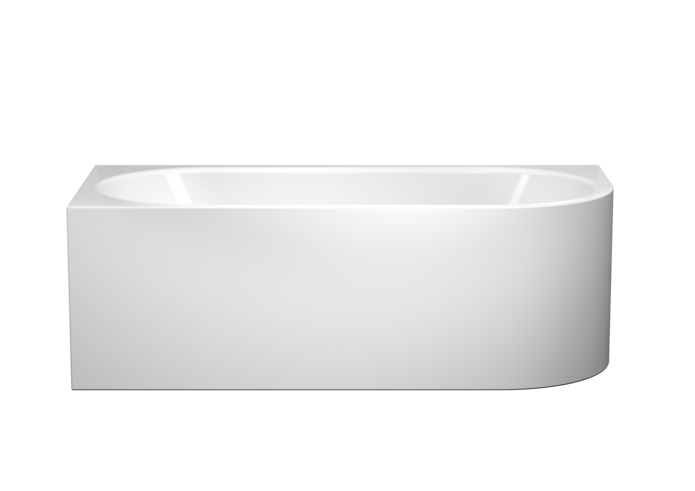

Kaldewei Meisterstück Centro Duo 1 Right
Meisterstück CENTRO DUO 1 RIGHT
MEISTERSTÜCK CENTRO DUO 1 RIGHT
Bathtub made of high-quality steel enamel with enamelled panelling on 2 sides .Specially developed for corner installation .Minimalist simplicity and unpretentious elegance are the hallmarks of this bathtub .Available in right and left versions. Refined with
the exclusive easy-clean finish .Enamelled waste cover and overflow knob integrated into the bathtub design (also available with filling function). Made of KALDEWEI steel enamel
features
STEEL ENAMEL
KALDEWEI steel enamel is extremely resistant, durable and sustainable. Robust steel and fine glass, two authentic, natural materials form an inseparable bond.
DESIGN
An exquisite, sustainable material like KALDEWEI steel enamel deserves a timeless design. Our bathroom objects will touch and delight you each day. In addition to our own creations, we rely on the expertise of renowned designers.
SUSTAINABILITY
We live and produce sustainability. Steel enamel is made from natural raw materials and is 100 percent recyclable after a long life cycle. That makes KALDEWEI steel enamel the most sustainable material in your bathroom!
INFORMATION
MODEL NO.
1127-4040
APPLICATIONS
Bathrooms
COLORS
Alpine White
EXTERNAL RADIUS
375 mm
DISTANCE BATH EDGE TO CENTRE OF WASTE HOLE
850 mm
DISTANCE CENTRE OF WASTE HOLE TO CENTRE OF OVERFL OW HOLE
307 mm
DISTANCE TOP EDGE TO CENTRE OF OVERFL OW HOLE
70 mm
EXTERNAL LENGTH (TOP)
1700 mm
INTERNAL LENGTH (TOP)
1580 mm
LENGTH
1700 mm
EXTERNAL WIDTH
750 mm
DIAMETER OF OVERFL OW HOLE
Ø 52 mm
WIDTH OF RIM (FOOT END; LONG SIDE)
60; 60 mm
WASTE CONNECTION DIAMETER
Ø 40/50
INTERNAL WIDTH (TOP)
630 mm
INTERNAL WIDTH (BOTTOM)
510 mm
DEPTH
485 mm
DEPTH INSIDE
460 mm
HEIGHT OF BATH
610 mm
FULL ANTI-SLIP
900 x 300 mm
DIAMETER OF ANTI-SLIP
Ø 435 mm
DIAMETER OF WASTE HOLE
Ø 52 mm
FULL ANTI-SLIP
900 x 300 mm
NET WEIGHT
99 kg
CHARACTERISTICS
-Made from steel enamel -Large selection of colours -Eco-friendly manufacturing -Recyclable -Easy to clean -Hygienic -Heat resistant -Scratch and impact resistant -Chemical resistant -Retains colour over time
FILL FI TTING CONNECTION
3/4"
TECHNICAL DRAWINGS
