Linvisibile Nicchio Technical Closures
Nicchio Technical Closures
NICCHIO TECHNICAL CLOSURES
Nicchio is the patented system of flush-to-the-wall room-dividing panels, able to satisfy differing needs to contain and close off areas.

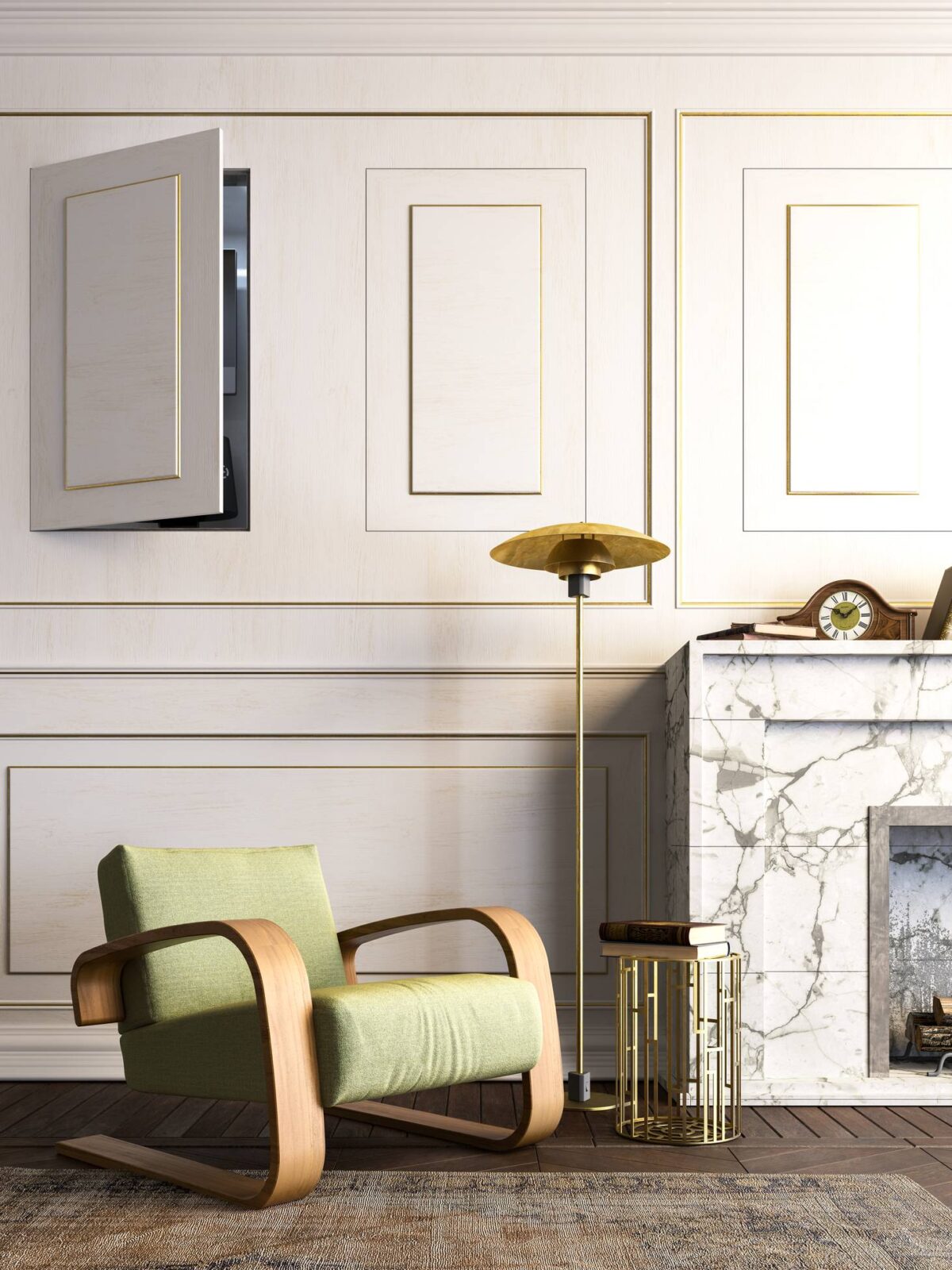

Nicchio is the ideal way of creating storage areas and wardrobe space, closing off trap doors, shutter boxes, recesses and dead zones, and concealing control panels, switchgear and IT installations and any other troublesome element.
Nicchio is perfect also in the field of Home automation to best cover and conceal the advanced technological systems applied to the domestic field.
INFORMATION
APPLICATIONS
- RInterior design
- Residential
- Office
- Hospitality
MATERIAL
Aluminium
BRAND
Linvisibile
DIMENSIONS AND PERSONALIZATIONS
The single leaf model is available in the following sizes:
- Width: from 300 mm to 700 mm (clear width)
- Height: from 300 mm to 2500 mm (clear width)
USE
-Room division -Partitions for: storage areas -Wardrobe spaces -Trap doors -Shutter boxes -Recesses -Concealing control panels
USE IN CONSTRUCTION
- Walls
- Facades
- Interior
- Partitions
CHARACTERISTICS
Flush-to-wall panels, without door frames or jambs, can be covered with almost any material (ex: ceramic or mirrors)
TECHNICAL FEATURES
Nicchio consists of –A wall-mounted extruded aluminium frame (EN AW 6060 alloy – Anticorodal 063) that replaces the door post (intrados-jamb) so that the panel may be perfectly aligned with the plaster thus eliminating door frames or jambs. The frame is a very sturdy tubular structure that adapts to any wall depth; supplied with perimeter stay clamps that facilitate fitting it to the wall, and with adjustable concealed hinges. –A 19 mm thick MDF panel, ennobled, edges 10/10.
FINISHES BASE LAYER
The finishes as the wall allows the most complete integration of the door in the wall. The doors becomes a single surface with the wall, creating a special effects of absolute continuity. The door disappears but it maintains a strong personality. The objective of hiding and masking passages in the wall is the fundamental concept of Linvisibile philosophy. Painting, plastering, decorating, any kind of finishing as the wall is allowed on Linvisibile’s products.
SHAPES AND OPENINGS
-Double- Leave Overlapping -Double- Leave overlapping -Trapzoidle -Double-Leave -Flaked -Multiple -Square -Nichoo -Pull- Left -Nichoo -Pull- Right -Open -Vs - Top -Nichoo -Left -Right
