ARRONDO SHOWER TRAYS FLOOR LEVEL
ARRONDO SHOWER TRAYS FLOOR LEVEL
Designed by Phoenix Design
The ARRONDO has a fine sense of proportions and aesthetics. This quadrant shower tray impresses with its minimalist design language based on the successful dialog between the basic geometric shapes of the circle and square.
Comfort is not neglected either, because the ARRONDO offers an exceptionally large standing area for plenty of freedom of movement when showering. Available in four dimensions as well as with shaped cover.
INFORMATION
LENGTH ACROSS CORNERS - EXTERNAL
D1 : 1254 mm
LENGTH ACROSS CORNERS - INTERNAL
D3 : 1023 mm
DOWNLOADS
↓ Data Sheet
↓ 2D and 3D data
EXTERNAL RADIUS
- R1 : 550 mm
- R2 : 23 mm
MODEL
870
USE
Interior
RADIUS
55 cm
APPLICATIONS
Bathrooms
WIDTH OF RIM
E5 : 65 mm
HEIGHT OF RIM
C4 : 32 mm
SIDE LENGTH
J6 : 350 mm
DEPTH INSIDE
C1 : 25 mm
FEATURES
-Generous floor space with lots of room when showering -Quarter-circle shower tray with a minimalist design language -Waste cover integrated almost flush into the shower surface (only in combination with the KA 90 waste fittings)
DIMENSIONS
- External Length A1 : 900 mm
- External Width B1 : 900mm
PRODUCTION
Made in UK
NET WEIGHT
20 kg
GUARANTEE
30-year guarantee
DIAMETER ANTI-SLIP
Ø 435 mm
WIDTH ACROSS CORNERS
- External : D2 : 1035 mm
- Internal : D4 : 855 mm
EDGE TO CENTRE OF WASTE HOLE
F2 : 190 mm
DIAMETER OF WASTE HOLE
F9 : Ø 90 mm
MATERIAL
- Metal
- Glass
- Composite Materials
FORMAT
- Slabs
- Plates
- Panels
CHARACTERISTICS
- Hygienic
- Easy to clean
- Heat resistant
- Chemical resistant
- Retains colour over time
- Made from steel enamel
- Large selection of colours
- Scratch and impact resistant
- Eco-friendly manufacturing, recyclable

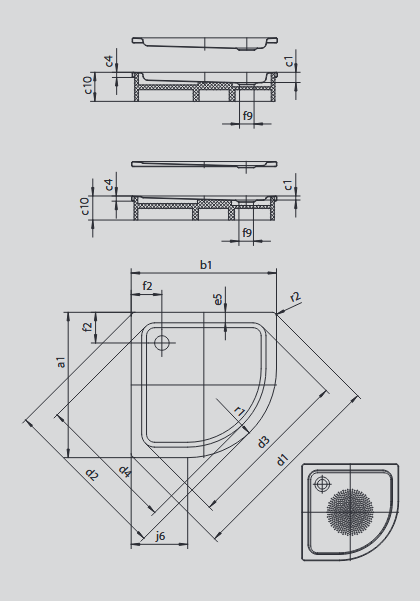

TECHNICAL DRAWING
DETAILS
STEEL ENAMEL
KALDEWEI steel enamel is extremely resistant, durable and sustainable. Robust steel and fine glass, two authentic, natural materials form an inseparable bond.
DESIGN
An exquisite, sustainable material like KALDEWEI steel enamel deserves a timeless design. Our bathroom objects will touch and delight you each day. In addition to our own creations, we rely on the expertise of renowned designers.
SUSTAINABILITY
We live and produce sustainability. Steel enamel is made from natural raw materials and is 100 percent recyclable after a long life cycle. That makes KALDEWEI steel enamel the most sustainable material in your bathroom!
