ASB LUMIFLEX Flooring
ASB LUMIFLEX FLOORING
ASB LumiFlex – One of the most exciting surfaces available
ASB LumiFlex is a full video floor.
The entire floorspace is a multi-functional monitor. The floor was designed to transform any space into a unique visual experience.
Its patented glass surface is one of the most innovative flooring surfaces ever made and can be used for a variety of solutions ranging from sports to concerts, retail to trade shows
FEATURES
ANYTHING IS POSSIBLE

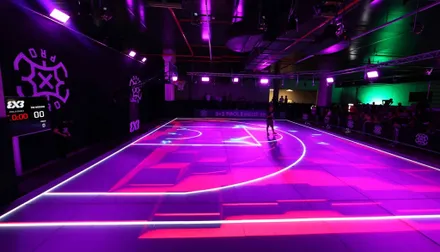

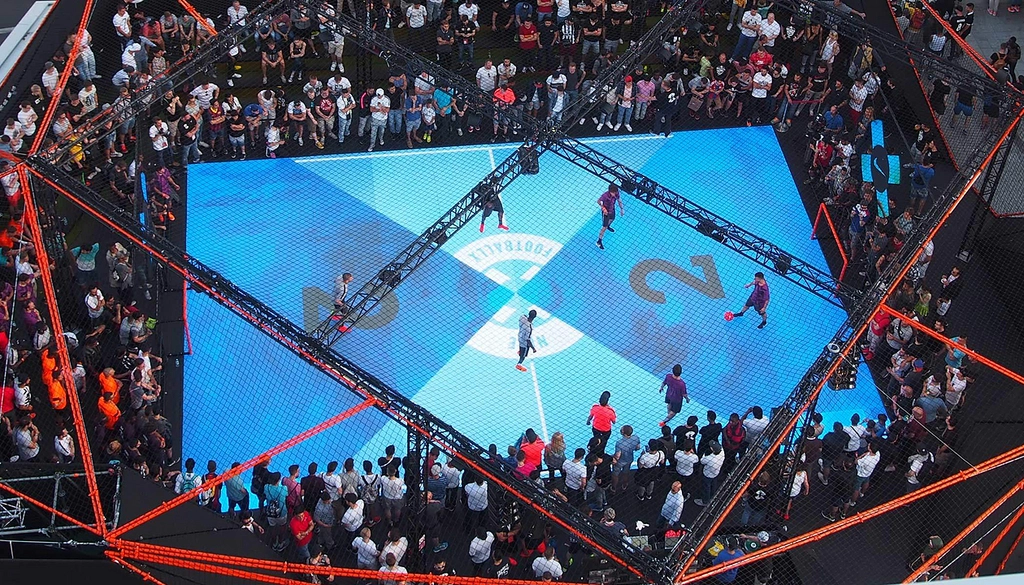

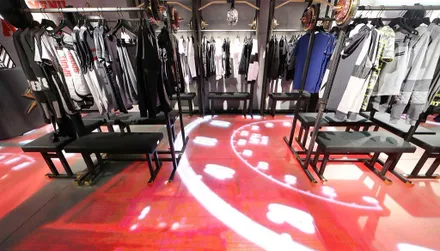

-The ASB LumiFlex floor offers an entirely new and revolutionary use of any available floorspace. We have used the full video floor for exhibitions, retail, high-end sporting events, personal training applications, marketing stunts and permanent installations in highly-frequented areas. -Especially the application of the ASB LumiFlex floor in atriums of shopping malls or hotels and its use at high-ranking sporting- or other events such as concerts or new product presentations, offers a new, high-value advertising space and a futuristic experience. Contact ASB for further information about the possibility of the latest tracking systems in combination with the ASB LumiFlex floor. Interactive training, advertising and game solutions – ASB can make your vision of an interactive system become reality.
VERSATILE AND ADAPTABLE
The ASB LumiFlex acts as a plug-and-play screen. Configurable in different shapes and sizes and controlled via HDMI, the ASB LumiFlex floor is available as a 4.8 mm pixel pitch or a 3.9 mm pixel pitch.
Along with the ASB MultiSports floor, the ASB LumiFlex meets the performance criteria for professional sports events. The floor can be installed permanently and is available as a portable solution engineered for fast installation and removal. In addition to this, ASB LumiFlex can be supplied as an elastic or as a rigid system.
INFORMATION
LED PANEL SIZE
500 mm x 500 mm x 88 mm
INPUT POWER
- AC100-240V
- 50∼60Hz
JOINTS
Silicon joints attached to glass panels.
GLASS TYPE
Laminated two layer safety glass panels built from two 5 mm tempered security glass sheets, laminated with a 1.52 mm thick PVB - foil.
LIFETIME
Min. 100,000 Hours
SH RATE
3,840 Hz
THERMAL DISSIPATION AVG.
130 W/m²
GLASS DIMENSIONS
- Glass panel size portable: 2m x 1.5m
- Fixed installation: 3 x 2m
SPORT PERFORMANCE
- Meets and exceeds EN 14904:2006
- FIBA and IHF certified
POWER CONSUMPTION MAX
570 W/m²
OPERATING TEMPERATURE
-20° ∼ 50° C
GLASS SURFACE
Special etching on the upper surface of the glass panels to prevent light reflection. Burned in ceramic dots for slip resistance.
POWER CONSUMPTION AVG
190 W/m²
POWER CONSUMPTION AVG
190 W/m²
CONNECTION
- Power : Neutrik (IP65)
- Data : EtherCON (IP65)
WARRANTY
- ASB GlassFloor 10 years
- Electronic components 2 years.
BRIGHTNESS
- 4,500 nit
- 4,500 nit
COMPATIBILITY
- synchronous DVI
- VGA
- SDI
- HDMI plug and play
