Panoramah!® Ah!um Windows
AH!UM Windows
AH!UM WINDOWS
Ah! ultra-minimalist is based on the revolutionary vacuum insulating glass. This technology allows for 12mm total thickness glass to achieve triple glazing performance.
By reducing glass thickness the overall aluminium structure of the window diminishes proportionally, resulting in an extremely slim and minimal system.
Also, by using vacuum insulating glass, the vertical sightlines are reduced to an astonishing 15mm, even less than the initial systems based on standard double insulating glass.
The system can achieve pane surfaces up to approximately 4.5m² and allows for the introduction of a wide range of accessories.
INFORMATION
FIXED
Fixed system, with a fixed frame that cannot be opened. Not designed to ventilate but to to let in natural light. Designed to match other panoramah! openable solutions.
AIR TIGHTNESS
Class 3
WIND RESISTANCE
Class B3
WATER TIGHTNESS
Class 5A
SOUND INSULATION
37dB
APPLICATIONS
- Residential
- Commercial
- Restaurants
- Hotels
- Corporate
SLIDING
This sliding system, with limitless number of rails, opens horizontally and with our removable bearing profile system, allows to slide large panels effortlessly and in a single, gentle movement.
PRODUCT TYPE
Windows System
SECURITY
RC2
THERMAL COEFFICIENT
Uw = 0.724W/m².K (Ug = 0.48W/m².K)
USE
- Frameless
- Hurricane Tested
- Insulated Sliding Doors And Windows
CHARACTERISTICS
Aluminum structure, self supporting glass, limitless number of rails, wind zone - design pressure : HVHZ4 - 50 psf, performance class : CW, thermal insulation up to 0.816W/m².K, sound insulation: 41 dB
FORMAT
- Sliding
- Fixed
ACHIEVEMENTS
Red dot 2018
CERTIFICATION
HVHZ4 | NFRC | ISO 9001:2015 Quality Certified

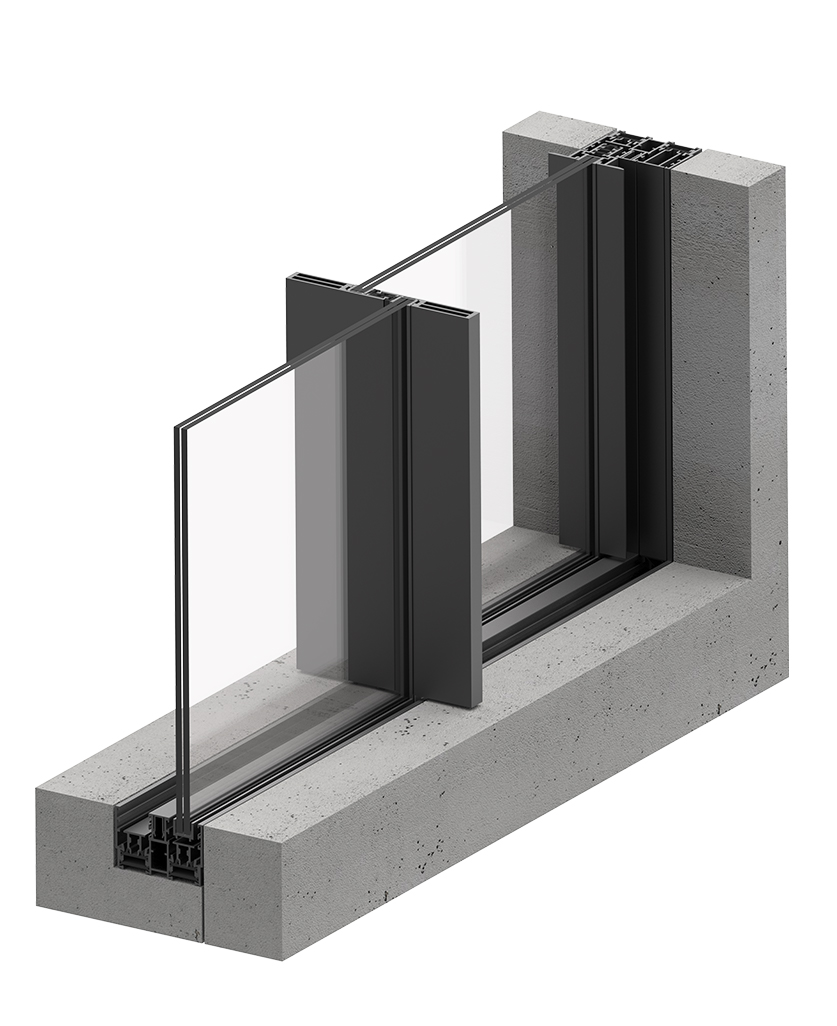

WINDOW ANATOMY
