CUPACLAD® 101 LOGIC RAINSCREEN CLADING
CUPACLAD® 101 LOGIC RAINSCREEN CLADING
The CUPACLAD® 101 LOGIC system is part of the CUPACLAD® 101 series, made up of systems with invisible fixings that make our natural slate the main attraction of a facade.
The CUPACLAD® 101 LOGIC rainscreen cladding system gives any facade balance, combines ideally with other materials and flaunts natural slate’s texture and sheen.
CHARACTERISTICS
CUPACLAD SLATE CLADDING
CUPACLAD natural slate is specially selected from among our 20 quarries for its technical properties and is subjected to specific quality controls to guarantee exceptional performance in any facade.
CUPACLAD ensures quick and easy installation thanks to the greater regularity and flatness of the slates, which are delivered with the holes made to match the selected CUPACLAD® system. Even its packaging, which is smaller and lighter, has been designed to facilitate and shorten installation times.
SUSTAINABLE
A life cycle analysis, which allows you to analyse the overall environmental impact of a product, confirms CUPACLAD® as the ecological option for facade cladding, thanks to the use of natural slate instead of prefabricated products.
EFFICIENT
Developed with architects and installers to achieve exceptional performance, CUPACLAD® systems are a safe bet.
EFFICIENT AS A RAINSCREEN CLADDING
Now considered the most efficient system for construction envelope purposes.
COMPLEMENTARY TO EXTERNAL INSULATION SYSTEMS
Reducing energy consumption and helping to keep the building cool in summer and temperate in winter.
LIGHTWEIGHT AND VERSATILE
Compatible with any facade design and lighter than any other natural stone system.
CONTEMPORARY DESIGN
Different options and combinations of formats created by our designers alongside Danish architects.
ENVIRONMENTALLY FRIENDLY AND SUSTAINABLE
Natural slate is only subject to extraction and mechanical transformation; there are no chemical or heating processes involved as with alternative materials.
QUICK AND EASY TO INSTALL
CUPACLAD® reinvents the traditional technique for placing natural slate, offering greater simplicity and significant savings in installation times.
HIGHLY DURABLE
Tectonic slate with more than 100 years of durability, high resistance, fireproof and waterproof.
MAINTENANCE FREE
CUPACLAD® systems do not require any additional treatment and their color and properties remain unchanged over the years.
MODERN
Thanks to its unique, natural and modern design, the CUPACLAD® system redefines the aesthetics of slate facades.
ENERGY SAVINGS
Thermal efficiency is increased due to the cooling effect in summer and greater heat retention in winter.
ELIMINATION OF HUMIDITY
Rainwater penetration is greatly reduced and any moisture is removed through the constant ventilation, reducing the risk of any condensation.
ESTRUCTURAL MOVEMENT REDUCTION
The air cavity avoids temperature variations resulting in less pronounced structural movements. This reduces the risk of cracks and other structural issues.
DURABILITY
The cladding material is kept dry due to continuous ventilation. Many issues related to humidity (efflorescence etc…) are reduced resulting in a longer life span of the installation.
THE EFFICIENCY OF A RAINSCREEN CLADDING
Rainscreen cladding is a construction solution widely used and popular amongst Architects and developers worldwide. Now considered the most efficient system for construction envelope purposes. The combination of a ventilated system together with an insulation system gives numerous advantages in terms of thermal and acoustic properties. It avoids thermal bridges and condensation issues.
INFORMATION
101 SERIES INSTALLATION
Slates are fixed using our specially designed screws self-drilling to ensure optimal installation while remaining completely invisible to minimize design impact. Screws are made of stainless steel with a large flat head that enables an easier and more secure fixing.
SLATE SIZE
40x20cm
SLATES
16.7 m2
FIXINGS
- Invisible
- Exclusive Screw
USE
- Exterior Cladding
- Rainscreen System
APPLICATIONS
- Residential
- Commercial
- Hospitality
FORMATS
- Slabs
- Plates
- Panels
TYPE OF STONE
Slate
PRODUCTION
Made in Spain
WEIGHT/M2 (SLATE)
≤30 kg/m2
NOMINAL THICKNESS
7.65 mm
QUALITY CERTIFICATIONS
Our comprehensive quality team selects the perfect slate for each system based on wind, bending and impact tests to guarantee performance on the facade. Our Exclusive Cladding Range is underwritten by the highest European quality standards.
BRAND
Cupa Pizarras
PROPERTIES
- Thermal Insulation
- Natural
DETAILS
The CUPACLAD® 101 LOGIC system is made up of 40×20 cm slates installed horizontally using invisible fixing systems. The CUPACLAD® 101 series systems share a single fixing system with self-drilling screws specially designed by our engineers to ensure optimum slate rainscreen cladding installation, but remaining totally invisible to avoid impacting the design. The screws are made from stainless steel and feature a large diameter flat head to ensure and facilitate proper fixing of the slate.
101 SERIES

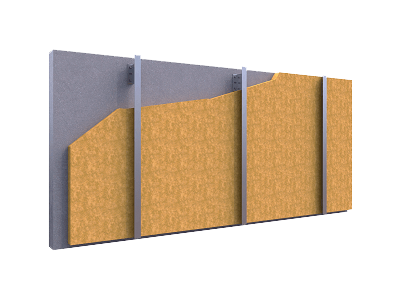

- Fixing the secondary substructure and the insulation material
- Fixing the CUPACLAD® 101 horizontal profiles
- Fixing the slates with the self-drilling CUPACLAD® 101 screw
Fixing the CUPACLAD® 101 horizontal profiles
DESIGN
CUPACLAD® DESIGN
Innovative Rainscreen Cladding Concepts
Combining new shapes, sizes and unique combinations to create exclusive façade designs. The possibilities are endless with CUPACLAD.
