Saniflo Sanivite
Sanivite
SANICUBIC 2 VX
Ideal For Kitchen, Bath, Outdoor Bbq Kitchen Or Laundry
- Sanivite+ Has Up To Four Inlet Connections
- Handles Water Temperature Of Up To 60 Degrees For Short Periods( 5min)
- Flow Rate Of 110 L/min
The Sanivite + enables you to install a utility room or an island within a kitchen. With four inlets, you can include a basin, bath, washing machine, dishwasher or sink in your new room with just one Saniflo unit. It is quieter and more efficient than other products on the market. It can be easily concealed within kitchen units or behind an accessible panel for easy servicing and maintenance.
It discharges through 32mm pipework. A Sanialarm can be fitted to this product for added peace of mind if required.
information
BRAND
Saniflo
VOLTAGE
220-240 V
FREQUENCY
50 Hz
MOTOR POWER
400W
MAXIMUM ABSORBED CURRENT
2 A
SHOWER TRAY HEIGHT
150 mm
MAX. FLOW RATE
88L/min
NUMBER OF ENTRIES
4
IP RATING
IP44
MAX. HEAD (Q0)
5 m
NOISE LEVEL
42 dB(A)
ELECTRICAL CLASS
I
SWITCHING HEIGHT
95 mm
WEIGHT
6.4 kg

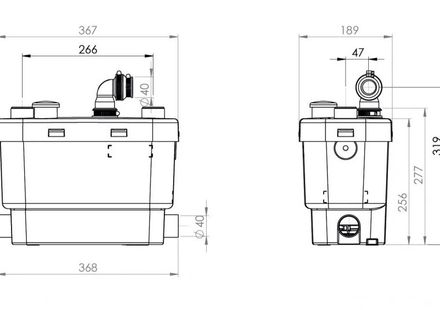

DIMENSIONS
- Lenhgt : 373
- Height : 275
- Width : 185

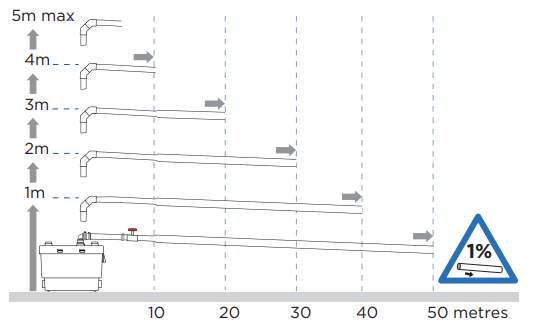

VERTICAL/HORIZONTAL PERFORMANCE
Increase size of horizontal run by one pipe size after 5m. All horizontal pipework requires a minimum of 1:100 fall.
FLOW RATE PERFORMANCE CHART
Discharge height (m)
