Eurekalighting Radar Ceiling Suspended
RADAR CEILING SUSPENDED
RADAR CEILING SUSPENDED

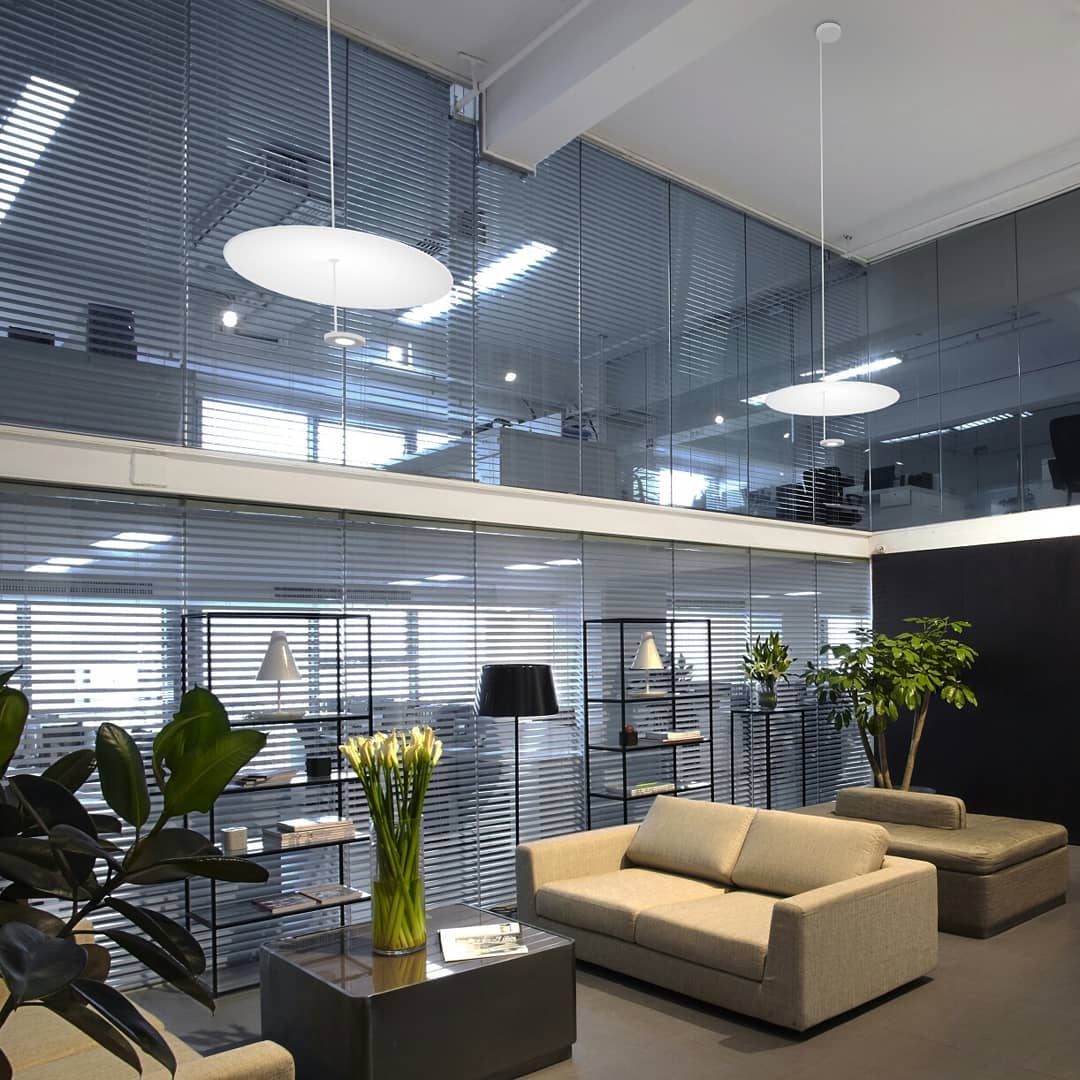

Radar is designed with an imposing softly curved and brightly illuminated cupola that acts as a reflector and channels light downwards.
A trendy and practical solution for high ceilings or for defining a lower illuminated space.
INFORMATION
VARIOUS LENGTHS
LED ENGINE
A custom made LED engine with standard 0-10V or phase dimming.
FINISH
- Black Fine Texture
- White Fine Texture
MODEL
4028 : Beacon
CERTIFIED
C-CSA-us
WARRANTY
5 years
LIGHT SOURCE
LED : Regular Output
HEATSINK
- White
- Black Diecast Aluminum
VOLTAGE
- 120V : 120 VOLT
- 277V : 277 VOLT
LED DRIVER
Constant Current 900mA, UL Recognized
COLORS
- Black
- White
INSTALLATION
Simplified installation featuring a hook on stem system, a keyhole locking mechanism and a magnetic canopy without any visible fasteners.
SYSTEM WATTAGE
37 W Total
DELIVERED LUMENS
2077 lm (4000k)
AVAILABLE LIGHT SOURCE
- Led.32.30.DP : 32w, Led 3000k (Warm) Phase Dimming 120V
- Led.32.30.DV : 32w, Led 3000k (Warm) 0-10v Dimming 120-277V
- Led.32.35.DP : 32w, Led 3500k (Natural) Phase Dimming 120V
- Led.32.35.DV : 32w, Led 3500k (Natural) 0-10v Dimming 120-277V
- Led.32.40.DP : 32w, Led 4000k (Neutral) Phase Dimming 120V
- Led.32.40.DV : 32w, Led 4000k (Neutral) 0-10v Dimming 120-277V
STRUCTURE
Custom die cast aluminum heatsink with steel stem and canopy featuring a white or black architectural grade fine texture finish. Thermoformed acrylic reflector with white opaque frosted finish.
DIMENSIONS
- Height : 355mm 14.00"
- Width : 914mm 36"
COLOR TEMPERATURE
- 30 : 3500K
- 35 : 3000K
- 40 : 4000K
DIMMING OPTION
-DV : 0-10V Dimming (120-277V)
-DP : PHASE Dimming (120V Only)
STEM LENGTH
- 24 : 24" Stem
- 30 : 30" Stem
- 36 : 36" Stem
CRI
83 CRI (Typical )
LIGHT DISTRIBUTION
The highly illuminated reflector makes the luminaire decorative yet functional as most of the light is reflected downward.
