VISION™ SS RAILING SYSTEM
VISION™ SS RAILING SYSTEM

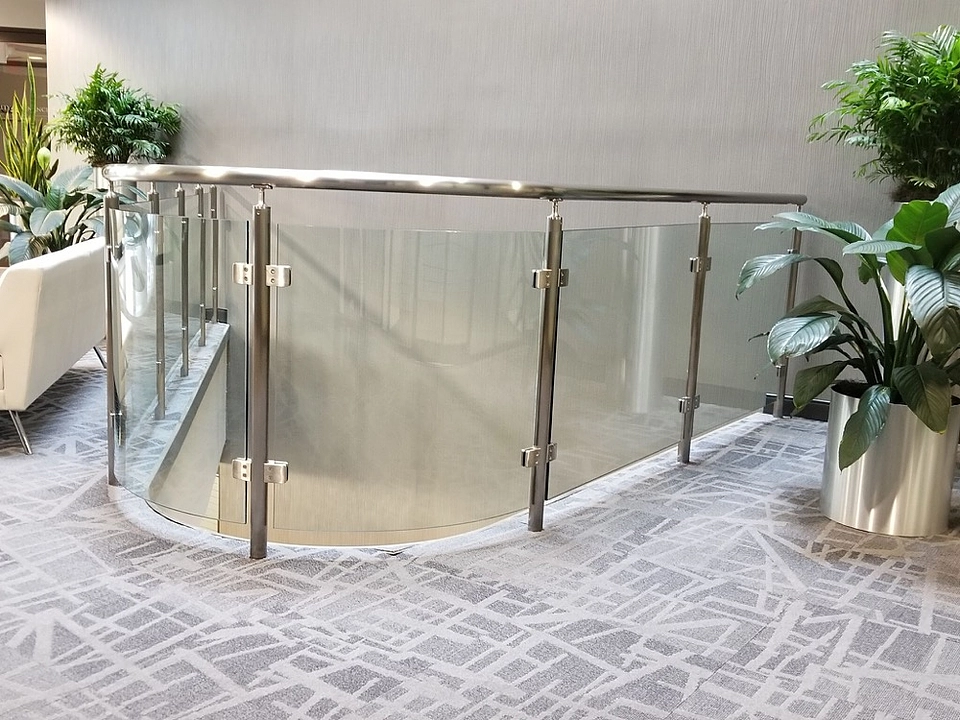

VISION™ railing is a stainless steel railing system with “in-line” panel clips that support the infill panel available in 304 SS (standard) or 316 SS (optional).
Although the standard infill is glass, metal infills in stainless steel are available in wire mesh and perforated designs, with 304 SS as standard or 316 as an option. Acrylic and other custom infill materials are also available.
Glass or other infill panels are retained by 4 rounded panel clips. Glass panels will have holes for the bottom 2 clips.
Glass infill is available in 3/8” monolithic or 7/16” laminated glass. Assist rails in stainless are available for stairs or for level railing as on option.
INFORMATION
PRODUCTION
Made in United States
FASTENERS
Stainless Steel 304 Alloy
PANELS
Metal Infill Panels
POST SPACING
Determined by site conditions.
MOUNTING
Determined by site conditions.
HEIGHT WALKING SURFACE
42”
CODE COMPLIANCE
U.S. International Building Code 2009/2012/2015/2018 standards specific to guardrails, handrails and infill panel materials including glass.
BASE FLANGES
Internal Flange Steel with 304 or 316 SS Cover Plate
FITTINGS
- 304 Stainless Steel
- 316 Stainless Steel
DOWNLOADS
↓ Data Sheet
↓ Specifications
USE
- Handrails
- Guardrails
-Balconies
RAILS
- 304 or 316 SS
- 1.9” OD, .120” Wall Thickness
- #4 Polished Finish Standard
POSTS
- 304 or 316 SS
- 1.9” OD, .120” Wall Thickness
- #4 Polished Finish Standard
APPLICATIONS
-Multifamily Residential -Industrial -Hospitality -Educational -Institutional -Commercial
CERTIFICATION
-Meets IBC and ADA codes, U.S. International Building Code 2009/2012/2015/2018 standards specific to guardrails -Handrails and infill panel materials including glass
TECHNICAL DRAWING
- Vision™ Stainless Steel Railing Level
- Vision™ Stainless Steel Railing Stair
CHARACTERISTICS
- Stainless Steel
- In-line Panel Clips
- Choice Of Infill Panels
- Ideal In Commercial Projects
PERFORMANCE REQUIREMENTS
All railings shall be supplied to conform to applicable sections of the following codes:
- ADAAG
- International Building Code
