Hansgrohe Vernis Blend
HANSGROHE VERNIS BLEND
HANSGROHE VERNIS BLEND

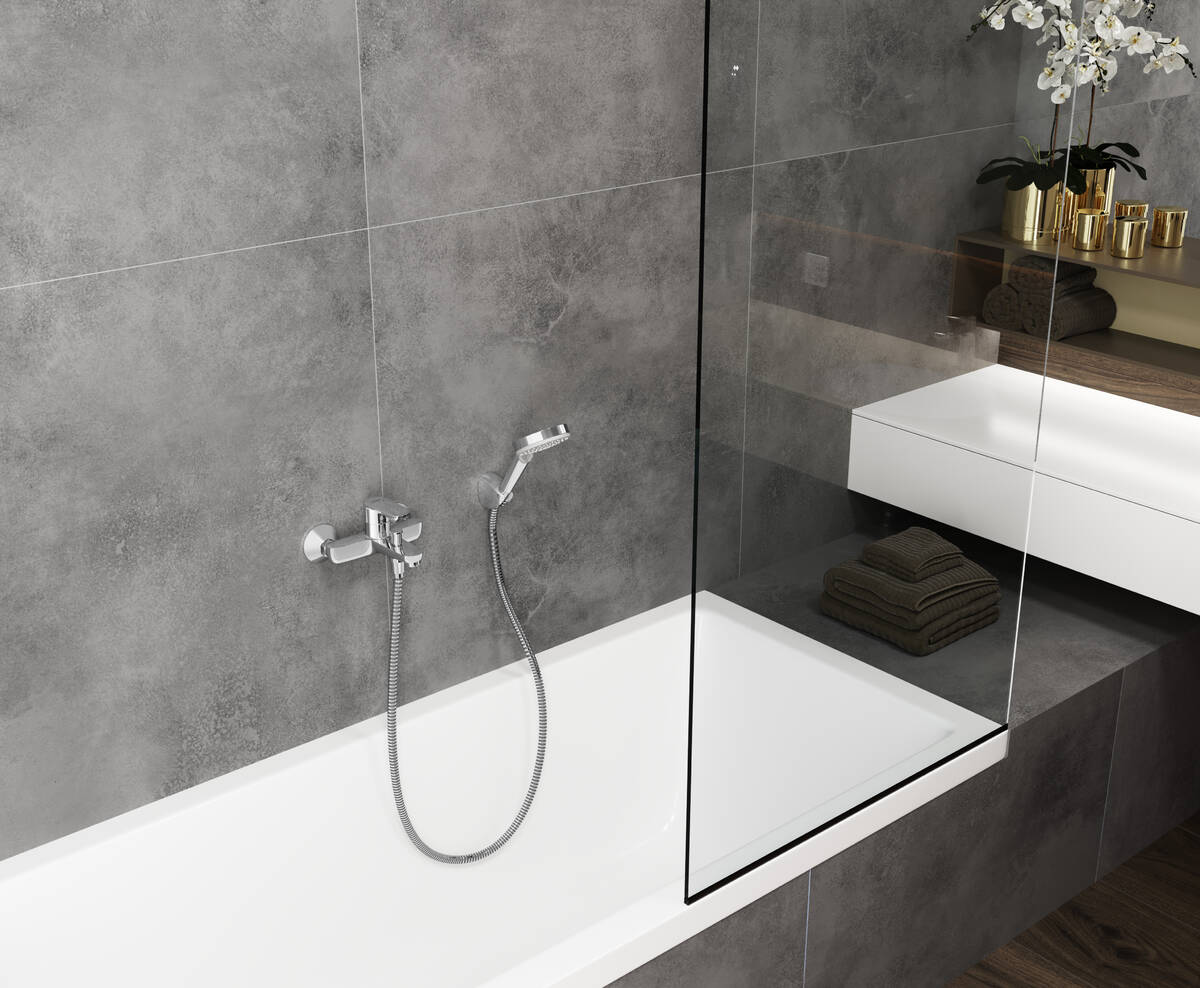

Single lever bath mixer for exposed installation
INFORMATION
FUNCTIONS
2
PROJECTION
171 mm
MAXIMUM FLOW RATE AT 3 BAR
22.5 l/min
APPLICATIONS
Bathrooms
ADJUSTABLE
Temperature Limitation Adjustable
CONNECTION TYPE
S-shaped connections
RESETTING
Diverter With Automatic Resetting
MAX. OPERATING PRESSURE
10 bar
FINISH
- Chrome
- Matt Black
USE
Shower sets
CENTRE DISTANCE
150 ± 12 mm

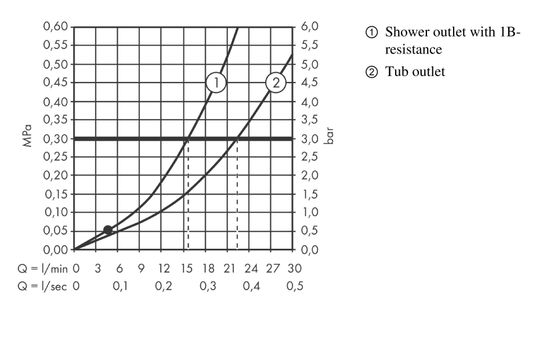

FLOW RATE FOR BATH SPOUT AT 3 BAR
22.5 l/min
FLOW RATE OF HAND SHOWER AT 3 BAR
15.7 l/min
CERTIFICATES
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
MODEL NO.
- 71440000
- 71440670
SPRAY TYPE MIXER
Normal Spray
SILENCER
With Silencer
HEATERS
Suitable For Continous Flow Water Heaters
MIN. OPERATING PRESSURE
1 bar
CONNECTION DIMENSION
DN15
CARTRIDGE
Ceramic Cartridge
TECHNICAL DRAWINGS
