Bette BetteLoft - Bathtubs
BETTELOFT - BATHTUBS
BETTELOFT - BATHTUBS

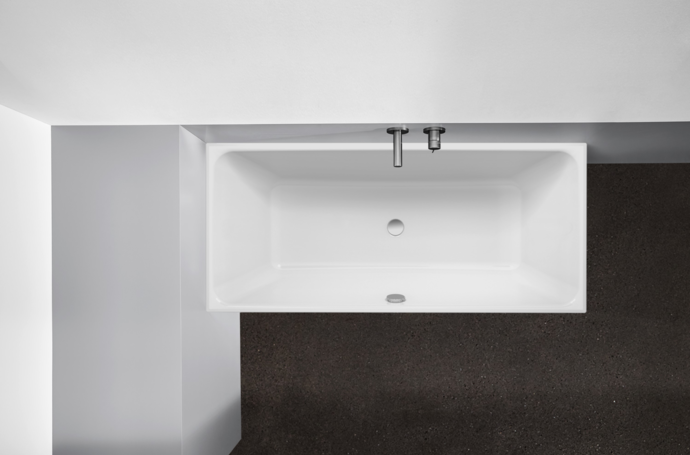

The BetteLoft fitted bath is based on the fundamental design of four tapered surfaces that meet up together. Delicate side edges form the generous interior, and provide a particularly high level of reclining comfort.
The 8-mm folded edge is perfect for flush installation. Perfect craftsmanship and an extremely small corner radius underline the expressive character of this minimalistic design.
INFORMATION
PRODUCTION
Made in Germany
USE
Bathing
MATERIAL
Glazed Titanium Steel
APPLICATIONS
- Residential
- Hospitality
CHARACTERISTICS
- Sustainable
- Minimalist Design
- 8mm Flush Edge Fit
FUNCTIONS
2-Seater Bath
SHAPE
Rectangular
WARRANTY
30 Year
INSTALLATION
For professional installation we recommend the use of the original bath feet B23-1500. Available with matching washbasin BetteLoft.
CAPACITY
156 liters
INSTALLATION TYPE
Fitted
WEIGHT
45 kg
TECHNICAL ADVICE
Due to the folded edge, standard commercially available bath anchors cannot be combined. We therefore recommend the BetteWallBracket (item no. Z0008669) for mounting.
LYING DIMENSION
1223 mm
EDGE HEIGHT
8 mm
CORNER RADIUS
8 mm
DRAIN DIAMETER
52 mm
DESIGN
Tesseraux+Partner
SCOPE OF DELIVERY
Including noise-reducing sound-dampening pads.
GLOSSY COLORS
-White 000 -Agais 009 -Caramel 046 -Key West031 -Misty Pink010 -Black 056 -Bleu Pastel 116 -Carneol 096 -Elfenbein 014 -Sorentoblau 067 -Moss Green 016 -Kaspischgrun 112 -Bermuda Blue 023 -Calypso 011 -Evergreen 115 -Azalee 130 -Natura 038 -Grun 198 -Camel 098 -Ruby Red 057 -Flamingo 21 060 -Misty Blau 049 -Pearl 053 -Sunset 013 -Capri 015 -Curry 040 -Flieder 124 -Reflet Grau 044 -Kashmir 090 -Pergamon 001 -Manhattan 002 -Bahama Beige 003 -Star White 287 -Midnight 790 -Torre 148
MATT COLOURS
-Snow 440 -Blue Stain 418 -Ebony 035 -Edelweib 004 -Crocus 043 -Flanell 008 -Flanell 048 -Jasmin 006 - Stella 021 -Magnolia 077 -Chinchilla 029 -Chantoung 646 -Griss Stain 225 -Montblanc 756,140 -Vanille 144

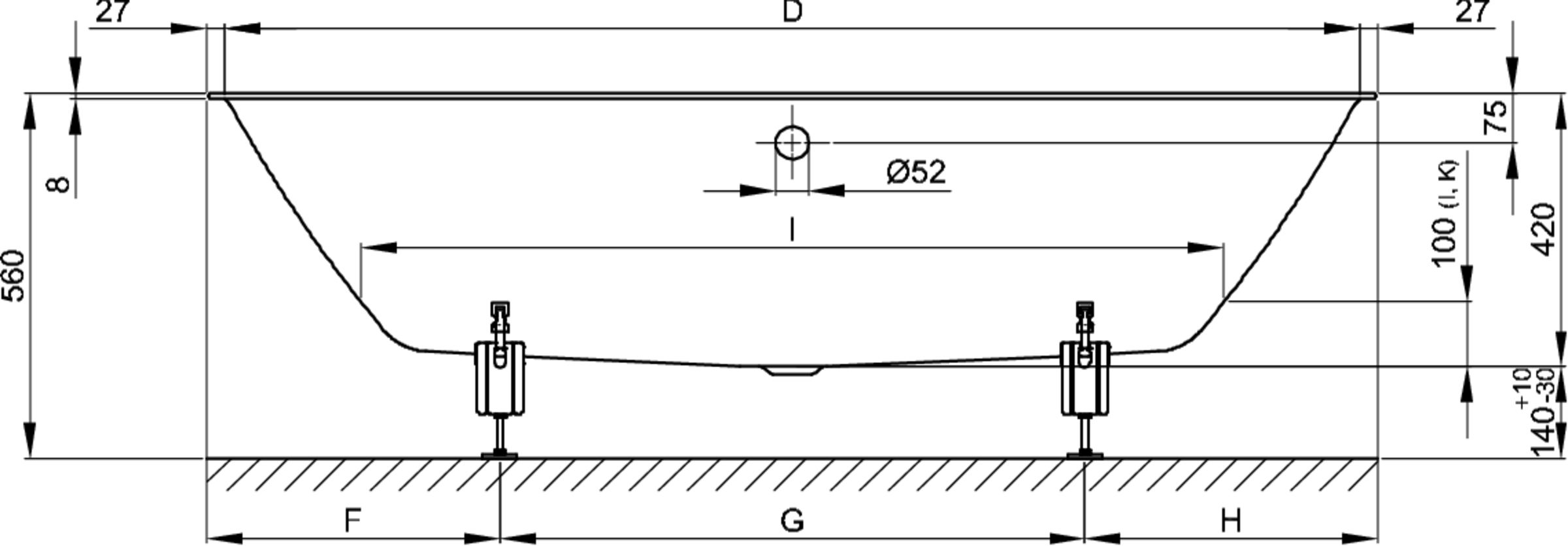

DIMENSIONS
| ARTICLE NO | MM | A | B | D | F | G | H | I | K | N | VOLUME |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3171 | 1700 × 800 × 420 | 1700 | 800 | 646 | 450 | 800 | 450 | 1223 | 518 | 445 | 156 litre |
| 3172 | 1800 × 800 × 420 | 1800 | 800 | 1746 | 450 | 900 | 450 | 1327 | 521 | 445 | 173 litre |
| 3173 | 1900 × 900 × 420 | 1900 | 900 | 1846 | 480 | 940 | 480 | 1426 | 620 | 455 | 235 litre |
DOWNLOADS
CAD-FILE 2D
↓ DWG | 138.27 KB
↓ DXF | 452.66 KB
DRAWINGS (UNMEASURED)
↓ EPS | 199.6 KB
↓ Technical Drawing
