DURAGRILLE™ ROLLING SECURITY GRILLE DOORS
DURAGRILLE™ ROLLING SECURITY GRILLE DOORS
When security and visibility are primary considerations, choose Raynor’s attractive DuraGrille rolling security grille doors.
The grille pattern, available in straight or brick, offers an unobstructed view of displays and merchandise. DuraGrille rolling security grille doors offer protection against theft and vandalism, all with a contemporary look.
DuraGrille security grills are ideal for storefronts; interior applications, such as concessions, cafeterias, and retail shops; parking garages; and retail environments such as pharmacy, front end, and back end theft.
FEATURES
GRILLE
Offered in a contemporary brick pattern or traditional straight pattern (shown), grilles are constructed of 5/16” mill-finished aluminum rods with 9″ center-to-center interlocking links.
COUNTERBALANCE SYSTEM
A torsion-spring-operated system, enclosed in a structural steel barrel, effectively counterbalances the security grille for a minimum of 15,000 cycles. Higher cycle torsion springs are also available.
SECURITY LOCKS
Manually-operated grilles are provided with slidebolt locks. Other locking options are available.

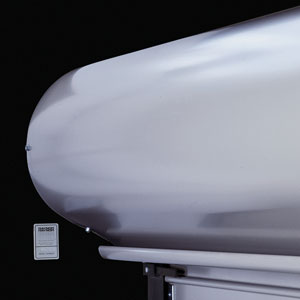

CURTAIN HOOD
Optional curtain hood has rolled edges and is formed from 24-gauge, hot-dipped galvanized steel, or aluminum.
AUTO LOCK
Auto lock prevents the curtain from being forced open.
ALUMINUM GUIDES
Extruded aluminum guides are lined with a replaceable wool pile strip to reduce wear and provide quiet operation.
BOTTOM BAR
An extruded aluminum bottom bar reinforces the curtain and provides smooth operation.
INCREASED SECURITY
6” center-to-center link spacing provides added protection.
HEAD PLATE COVER
Head plate covers are offered for an attractive, finished appearance and help to protect your investment by keeping out dust and grime.
MOTOR COVER
Motor covers are helpful for noise reduction and provide an attractive look.
INFORMATION
USE
Security Grille
PRODUCTION
Made in Italy
MAXIMUM SIZE
- Width : 35"
- Height : 24"
PATTERN
- Straight
- Brick
COLOR
- Mill
- Clear Anodized
- Bronze Anodized
BRAND
Raynor
PRODUCT TYPE
Rolling Grille Doors
GRILLE SIZE
5/16"Aluminium rods with interlocking Aluminium Links
MATERIAL
Aluminium
MODELS
-GBA -GSA
HARDWARE & ACCESSORIES
-Miscellaneous Parts : Curtain Stops, Hood Support
-Nuts & Bolts : Headplate Bolts, Lag Screws, Thread Cutters, Masonry Anchors, Hood Screws, Drive Pins
-Lock : Locking Bars, Hand-Chain Lock, Thumb Turn Lock, Cylinder Lock or Auto Lock
FINISH
-Standard Mill finish. -Upgrade to a bronze anodized or clear anodized finish for a brighter appearance and increased durability.
ENCLOSURES
-Hood : Type: Round or Square; Material: Steel (24 ga.) or Aluminum (.04″)
-Color & Finish : Gray, Clear Anodized, Bronze Anodized
GUIDES
-Mounting : Face or Jamb
-Guide Constuction : Hot-Rolled Steel Angle or Extruded Aluminum
-Jamb Constuction : Steel, Wood, Masonry or Non-masonry
-Wear Strips : Wool Pile
DOOR
-Type : Commercial Rolling Grille Door
-Model : DuraGrille STANDARD
-Mount : Interior or Exterior
-Configuration : Single Door
-Operation : Manual, Hand Chain, Crank-Operated, Through-Wall Motor: Bracket Mount, Wall Mount
-Drive : Left or Right Hand
-Bottom Bar : Extruded Aluminum
COUNTERBALANCE SYSTEM
-Type : Torsion Spring System (Standard or High-Cycle)
-Head Plates : Thickness: 3/16″, 1/4″, 3/8″
-Barrel : Size: 4″, 6″, 8″, 10″
-Springs : Inside Diameters: 2-7/8″, 4-9/16″, 4-7/8″, 6-1/4″, 8-3/8″; Configuration: Single, Duplex
-Bearing Plug Assembly : Removable: 4″ or 6″; Welded: 8″, 10″
-Shafts : Solid Shaft: 1″, 1-1/4″, 1-1/2″, 1-3/4″, 2″
-Ring-Splits : 4″ Pipe: 7″, 7-1/2″, or 8″ Ring; 6″ Pipe: 9″ Ring
SPECS & DRAWINGS
STANDARD DRAWINGS - INTERIOR FACE MOUNT (N)
| SHEETS | DRAWINGS | |
|---|---|---|
| Manual Operation | DWG Drawing | |
| Chain Operation | DWG Drawing | |
| Crank Operation | DWG Drawing | |
| Motor Operation | DWG Drawing |
STANDARD DRAWINGS - BETWEEN JAMB MOUNT/UNDER LINTEL (J)
| SHEETS | DRAWINGS | |
|---|---|---|
| Manual Operation | DWG Drawing | |
| Chain Operation | DWG Drawing | |
| Crank Operation | DWG Drawing | |
| Motor Operation | DWG Drawing |
STANDARD DRAWINGS - FACE-MOUNTED/UNDER LINTEL (J1)
| SHEETS | DRAWINGS | |
|---|---|---|
| Manual Operation | DWG Drawing | |
| Chain Operation | DWG Drawing | |
| Crank Operation | DWG Drawing | |
| Motor Operation | DWG Drawing |
STANDARD DRAWINGS - BETWEEN JAMB ONLY (J2)
| SHEETS | DRAWINGS | |
|---|---|---|
| Manual Operation | DWG Drawing | |
| Chain Operation | DWG Drawing | |
| Crank Operation | DWG Drawing | |
| Motor Operation | DWG Drawing |
