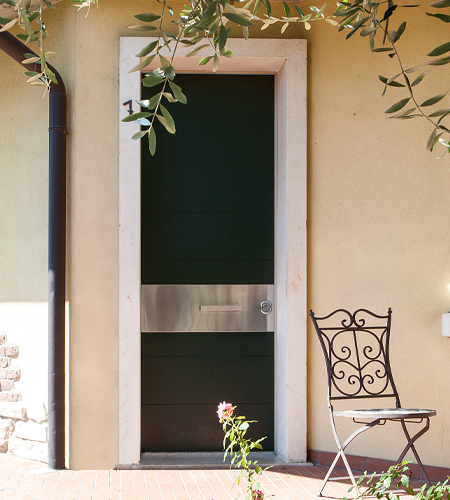

Oikos Evolution Door With Exposed Hinges
EVOLUTION DOOR WITH EXPOSED HINGES
OIKOS EVOLUTION DOOR WITH EXPOSED HINGES
Armored Door With Visible Hinges
Classical aesthetics interpreted with wood, colors and refined workmanship to enhance the safety door in a wide range of shapes and sizes.
It can be realized according to a drawing, with the fitting of armored glass, as a multi-leaf solution, complemented by a side panel or a transom window. Maximum performance in terms of break-in protection, thermal insulation, acoustic insulation, air/water/wind resistance is always guaranteed.
INFORMATION
SHAPE AND SIZES
Wide Range Of Shapes And Sizes
PRODUCTION
Made in Italy
COVERING
Wide Choice Of Coverings
USE
Armored Door With Visible Hinges
INSULATION
- High Thermal Insulation
- Evolution 3TT on Request
ELECTRONIC LOCK
Motorized electronic lock with integrated Arckey system, access control on request.
MAXIMUM PERFORMANCE
- Air Resistance
- Water Resistance
- Wind Resistance
CHARACTERISTICS
- Thermal Insulation
- Acoustic Insulation
- Motorized Electronic Lock
- Air/water/wind Resistance
- Break-in Protection
COVERINGS
- Line Smooth
- Line Carved
- Line Tekno
- Line Legno Vivo
- Line Heartwood
- Line Pantographed
HINGES
Exposed
APPLICATIONS
Residential
SHAPES
Evolution is available in the versions with single leaf, arched, with double leaf, with transom window or with side panel.
SPECIFICATIONS
| PERFORMANCE | STANDARD | UPON REQUEST |
|---|---|---|
| Break-in Resistance | Class 3 | Class 4 |
| Thermal | 1.8 | 1.6 - 1.2 - 1.0 |
| Acoustic | 40 DB | 45 DB |
| Air | 2 | Mose Kit 4 / Dam Kit 4 |
| Water | - | Mose Kit 5A / Dam Kit 5A |
| Wind | 4C | Mose Kit 5C / Dam Kit 5C |
| Fire | - | EI 30 / EI 45 / EI 60 / VKF EI 60 |
| Hurricaneproof | - | - |
COVERING
-Line Smooth -Line Carved -Line Tekno -Line Legno Vivo -Line Heartwood
COVERING - LINE PANTOGRAPHED
FEATURES
TOUCHPAD
The leaf opening can take place by entering a code on a touch screen support.
SMARTPHONE
Door opening via smartphone and manageable through the Oikos Tech App.
CARD READER
The Arckey system foresees, as a complementary system to the door opening, the use of the Oikos Card to be placed directly next to the leaf.
FINGERPRINT READER
Opening the entrance can be done simply through fingerprint recognition. Integrated in the door and minimal in terms of aesthetics and functionality, the fingerprint reader does not require keys or magnetic cards but only the use of the finger.
ARCKEY SYSTEM
The Oikos Arckey App is the integrated access management system that allows the electronic opening directly from a smartphone. The opening of the door with remote button, the user management, and the control of access flows are just some of the functions allowed by the management through App. The Arckey App can be downloaded for free from the App Store (iOS) or from Google Play (Android).
EVOLUTION 3TT
The door with both classic and modern aesthetics realized with a heat barrier frame and leaf. Exponential increase in thermal.
LAMINATED GLASS WITH DOUBLE CERTIFICATION
In doors with glass fitting, in glass transom windows, in glass side panels combined with Oikos doors, only panes with double bullet-proof and sledgehammer-proof certification, with double-glazed frame and with double safety glass, are always used.
EVOLUTION IN CLASS 4
It is the ability to withstand break-in attempts measured by applying stresses with static and dynamic loads and simulating break-in attempts carried out with manual and electric tools such as a hammer, chisel, ax, shear, electric drill, etc. for a maximum test time duration of 30 minutes.
FLOOR CLOSING ELEMENT-MOSE KIT
The use of the Mose threshold is necessary when you want to obtain maximum performance and the installation site features a non-homogeneous floor.
FLOOR CLOSING ELEMENT-DAM KIT
The ultimate solution in terms of invisible threshold performance! The Dam kit allows a high isolation from external agents totally eliminating architectural barriers. Solution installable only when there is a homogeneous plan.
FLOOR CLOSING ELEMENT-FLOOR SECTION WITH STEP FLUSH WITH INTERNAL WALL
The solution of the step flush with the wall is achieved through the pressure of a gasket under the door which, compressed on the step of the threshold of the house, allows excellent insulation from atmospheric agents.
FLOOR CLOSING ELEMENT-STANDARD DRAUGHT EXCLUDER
A floor device that, when the door is closed, correctly insulates a room from cold air draughts, smoke, dust and noise, contributes to greater living comfort and also guarantees savings in the energy needed for air conditioning. The draught excluder perfectly closes the gap between the leaf and the floor.
BENEFITS
AMPLE ROOM FOR CUSTOMIZATION
Available in the versions with single leaf, arched, with double leaf, with rectangular or arched transom window, with single or double side panel. All shapes and solutions can be supplied with pull opening.
OUTDOOR COVERINGS WITH 15 AND 12-YEAR WARRANTIES
The new water-based painting cycle provides significant benefits: 15-year warranty for outdoor lacquered Coverings 12-year warranty for outdoor coverings with a transparent varnish.
THE LOCK FOR ARCHITECTURE SERVICE
Integrated access management system with electronic opening through Oikos Arckey App,
OWNER'S KEYS
All Oikos doors are supplied with a building site key to be used for the production checks and by the technical staff entrusted with the installation, as well as with the owner's keys, sealed inside a special box.
EVOLUTION 3TT
Evolution 3TT is the first safety door with a heat barrier frame for cutting-edge houses, which ensures an extremely high thermal insulation value, high performances in terms of air, water and wind tightness, as well as a radical reduction in the formation of condensation. Available with Standard or Plus heat barrier threshold, it is also suitable to be installed in buildings with CasaClima GOLD energy certificate.
FINISHES
INTERNAL WOODS
MATERICI
EXTERNAL WOODS
LEGNO VIVO
LACQUERED
OPEN PORE LACQUERED
POLISHED GLASS
MATT GLASS
LAMINAM
ALUMINUM
METALLIC LACQUERED
FASHION
