Saniflo Sanicondens Pro V.02
Sanicondens Pro V.02
SANICONDENS PRO V.02
The Sanicondens® Pro is specifically designed for disposal of condensate from air conditioning units, refrigeration units, ice machines and dehumidifiers.
Includes a non-return valve and 6 m flexible discharge pipe.
- Quiet < 45 dB(A)
- Compact
- Easy to install
INFORMATION
WORKING WASTE WATER TEMP
35°C/Max 80°C (intermittent)
VOLTAGE
220-240 V
MAX. HEAD (Q0)
15 m
OUTLET DIAMETER
8-10 mm
INLET PIPEWORK
28 mm
CHARACTERISTICS
- Compact
- Quiet operation
- Reliable
APPLICATION
- Air conditioning units
- Refrigeration units
- Ice machines
- Dehumidifiers
IP RATING
IP20
MOTOR POWER
60 Watts
WORKING TEMPERATURE
Working Temperature Of 35°c
VOLTAGES
220-240 V/50 Hz
MAX. HEAD (Q0)
4.5 m
DISCHARGE LENGTH
50m
MAXIMUM ABSORBED CURRENT
0.52 A
ELECTRICAL CLASS
I
MAX. POWER CONSUMPTION
60 W
NUMBER OF ENTERIES
2
WEIGHT
2 kg
MAXIMUM FLOW RATE
6.2 L/min
TANK VOLUME
2.2 L

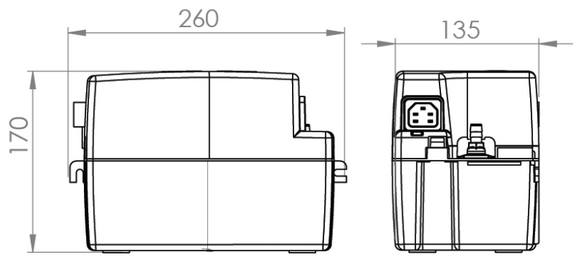

DIMENSIONS
- Width : 260
- Height : 169
- Depth : 143 mm
FREQUENCY
50 Hz
NOISE LEVEL
< 45 dB (A)
WHY CHOOSE THIS PRODUCT?
- 2 L Tank
- Two Entry Points
- Will Handle Temperatures Up To 80°c For Short Periods (5 Minutes).
- Supplied With 2 M Of Electric Cable And 6 M Of Discharge Pipe
- High Level Alarm Connectivity
DISCHARGE PIPEWORK
8/11 mm
MAXIMUM POWER OF ASSOCIATED GAS BOILER
50 kW
MAX. TEMPERATURE OF THE PUMPED LIQUID (5 MIN)
80°C (S3 15%)
