BV 75 WINDOW & DOOR SYSTEM
BV 75 WINDOW & DOOR SYSTEM

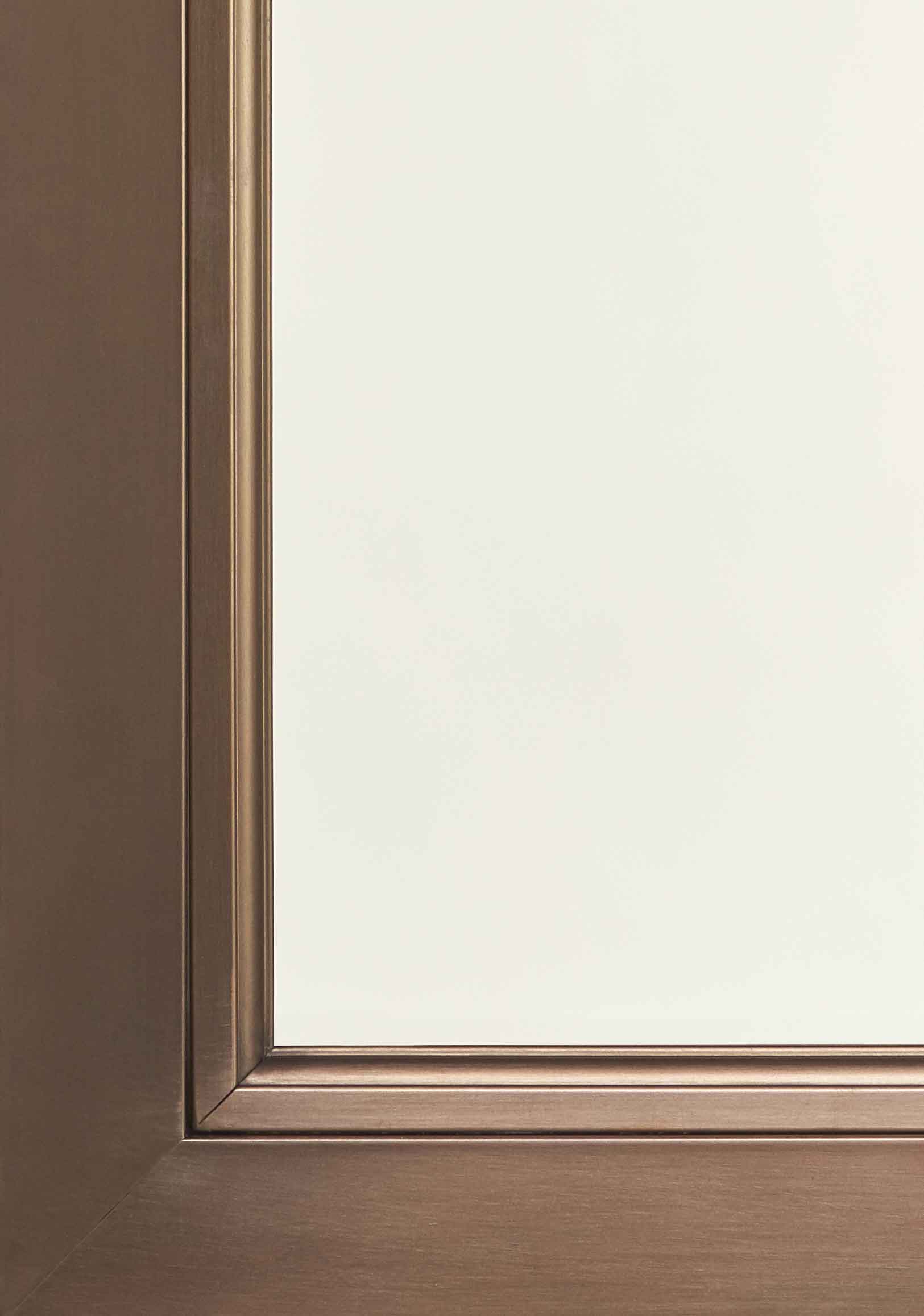

Minimal, externally bevelled to shape wood in precious metals. The beveled angled shapes of the sash externally and the glazing bead internally, are symmetrical with the glass, perfectly centered on the frame, hence characterizing the frame by giving the external elevation the same depth and aesthetics as the internal one.
NFORMATION
BRAND
Secco
GLAZING
40 mm.
VARIES BASED
70 to 84 mm
THICKNESS
27 to 62 mm,
CHARACTERISTICS
- Sustainability
- Choice Of Materials
- Thermal Break
- Heat And Sound Insulation
APPLICATIONS
- Residential
- Commercial
USE
- Doors
- Window
HINGES
To better integrate into the window frame, the hinges are slender, minimal and provided in the same finishes as the frame. In tilt and turn, the hinges can be concealed
Stainless Steel Corten Steel
Stainless Steel Corten Steel
MATERIALS
- Galvanized Steel Varnished
- Stainless Steel Scotch Brite Burnished
- Corten Steel Oxidized
- Brass Natural Burnished
GLAZING BEAD
The small profiles placed in front of the glass to fix it are also design elements of the frame and are produced in the same finishes as the window
HANDLES
Discrete, geometric, minimal and in the same finishes as the frame, the handles integrate perfectly into the frame
Stainless & Corten Steel
Stainless Steel Brass..
Stainless Steel Brass
DRAWINGS
WINDOW INWARD OPENING - EN 14351-1:2016 MAXIMUM CERTIFIED PERFORMANCE
- EN 12207Air Permeability :: 4
- EN 12208 Water Tightness : 8A
- EN 12210 Wind Load Resistance : C4
WINDOW OUTWARD OPENING - EN 14351-1:2016 MAXIMUM CERTIFIED PERFORMANCE
- EN 12207 Air Permeability : 4
- EN 12208 Water Tightness : 8A
- EN 12210 Wind Load Resistance : C4
WINDOW TILT AND TURN - EN 14351-1:2016 MAXIMUM CERTIFIED PERFORMANCE
- EN 12207 Air Permeability : 4
- EN 12208 Water Tightness : 8A
- EN 12210 Wind Load Resistance : C4
DOOR INWARD OPENING - EN 14351-1:2016 MAXIMUM CERTIFIED PERFORMANCE
- EN 12207 Air Permeability : 3
- EN 12208 Water Tightness : 1A
- EN 12210 Wind Load Resistance : C1
DOOR OUTWARD OPENING - EN 14351-1:2016 MAXIMUM CERTIFIED PERFORMANCE
- EN 12207 Air Permeability : 3
- EN 12208 Water Tightness : 1A
- EN 12210 Wind Load Resistance : C1
