ECOPILE VINYL PILING
ECOPILE VINYL PILING

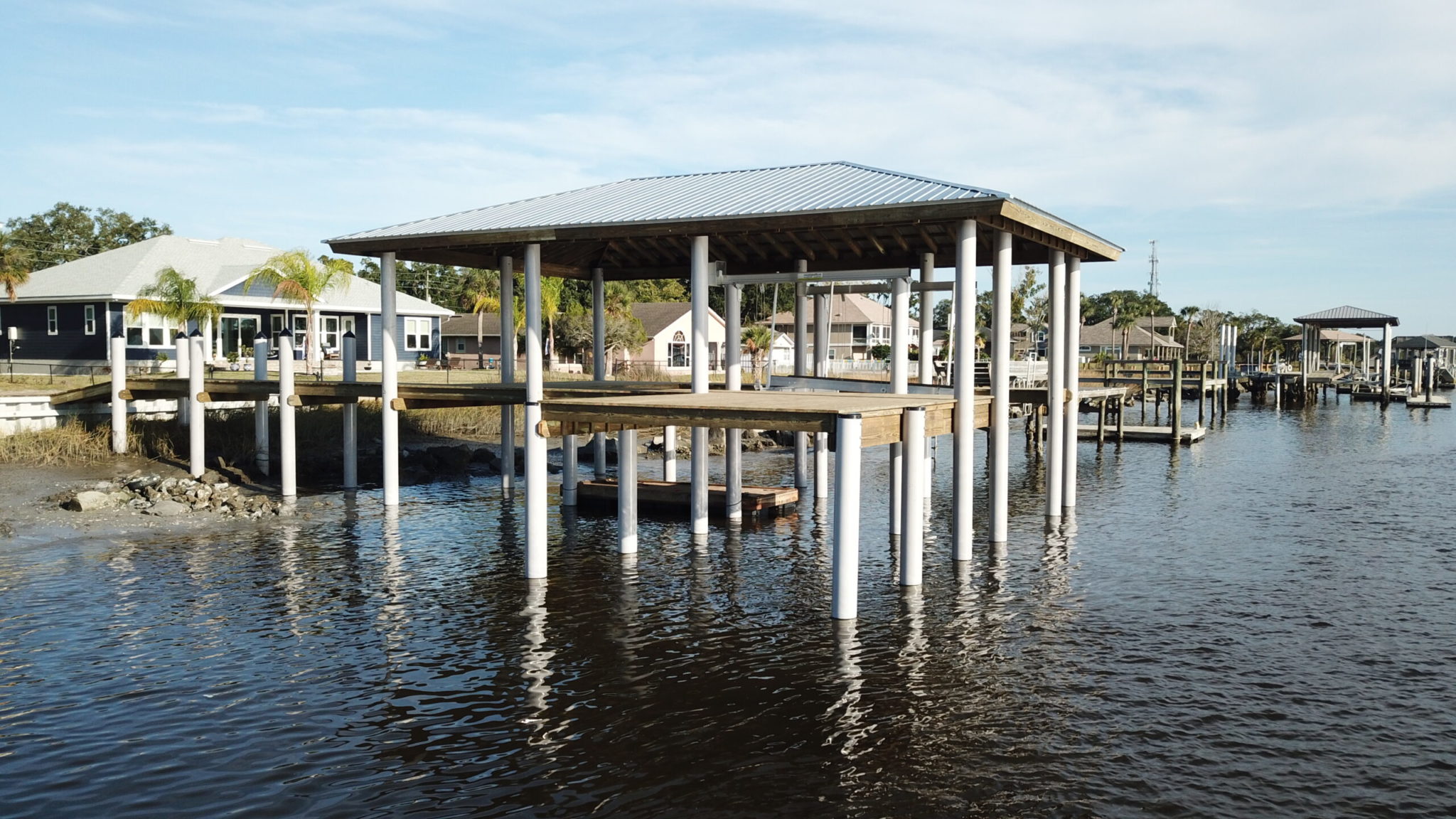

Designed with the marine contracting industry in mind, the EcoPile is the most economically and environmentally friendly composite marine piling to date.
EcoPile vinyl composite piling is totally impervious to wood-boring organisms, has a much longer lifespan than treated lumber, and is UV/IR resistant.
INFORMATION
FIRE PERFORMANCE
- Flammability Oxygen index : 0.45 ASTM D 2863
- Ignitability Index : 2 AS 1530 (tested as a tube)
- Smoke Produced Index : 8 AS 1530 (tested as a tube)
- Flame Spread Index : 0 Does Not Support combustion
USE
Piling
APPLICATIONS
Marine Constructions
MANUFACTURER
Shoreline Plastics LLC
TYPE OF PLASTIC
PVC
GUARANTEE
25 Year
MOLECULAR WEIGHT
65 k Value
RELATIVE DENSITY
1.47
CELL CLASSIFICATION
N/A
INHERENT VISCOSITY
0.91 DL/gm
RELATIVE VISCOSITY
2.15 DL/gm
DIELECTRIC STRENGTH
14-20 kV/mm
SURFACE RESISTIVITY
0 13 _ 10 14 Ohm
THERMAL PROPERTIES
- Softening Point : 120 C
- Max continuous service Temp : 65 C
CHARACTERISTICS
-Weather resistant -PVC and fiberglass material -Internal web structure -Extremely durable and long-lasting
PROPERTIES
- UV Protection
- Synthetic
RESISTANT
- UV Resistant
- IR Resistant
FEATURES
- Boat Friendly
- Cost Effective
CHEMICALS
100% Free Of leaching Chemicals
VOLUME RESISTIVITY
10 16 Ohm.cm (60% RH)
DISSIPATION FACTOR
0.015-0.020 at 20 0
C
DIELECTRIC CONSTANT
3.4-3.6 at 25 0 C (60Hz)
ORGANISMS
100% Resistant To Wood-Boring Organisms
RECYCLABLE
100 %
MAINTENANCE
Free
DOWNLOADS
↓ Data Sheet
↓ Warranty
↓ Report
↓ Brochure
MATERIALS
- Raw Material : Polyvinyl Chloride (PVC)
- Co-extruded Material : UV Protected PVC Capstock
- Extruded Material : Ridged PVC compounded with Stranded/Chopped Fiberglass
MECHANICAL PROPERTIES
| PROPERTIES | VALUE |
|---|---|
| Impact Strength: Notched Izod | 110 J/m 23 deg C zASTM D-256A |
| Impact strength: Unnotched Izod | 270 J/m 23 deg, C ASTM D-256 |
| Tear strength: | 750-1000 lb ft/in ASTM D-624 |
| Hardness: | 88, Shore D durometer |
| Coefficient of Friction: | 0.3 µs, PVC to PVC |
| Tensile Strength @ Break: % | 2%, ASTM-D 638 |
| Tensile Stress @ Yield: | 103, 103 MPa , ASTM D 638 |
| Tensile Modulus: | 9650 MPa, ASTM D638 |
| Flexural Modulus | 9310 MPa, ASTM D790 |
DETAILS
NEVER CHANGE YOUR PILINGS AGAIN
As more and more states across the US continue to ban or reduce the allowance of treated lumber in water, the usefulness of wooden pilings is steadily dropping due to less protection and higher susceptibility to weathering.
In recognition of this, the EcoPile was engineered and designed to not only surmount the harsh marine environment, but to outlast all other existing pilings.Gone are the days of continuously replacing wooden pilings over your marine structure's lifetime when you switch to EcoPile. With the EcoPile's unparalleled durability backed by a 25-year limited warranty, you will never have to worry about repairing or replacing your marine pilings again.
INTERNAL WEBBING FOR INCREASED STRENGTH
Unlike many other hollow pilings, the EcoPile contains an internal hexagram truss system to significantly increase the pilings’ strength and rigidity. The intertwined webbing of these triangles work together to create a stronger, more sturdy piling. In addition, the hollow spaces between the triangles allow for you to run wiring or plumbing through the EcoPile.
PVC & FIBERGLASS COMPOSITE FOR INCREASED WEATHER RESISTANCE
During the manufacturing process, chopped fiberglass is added to the rigid PVC. These fiberglass additives make the EcoPile stronger, enhances its impact resistance, and creates an outer layer that is UV/IR resistant. The outer layer also helps keep the piling cool to the touch during sunny days, and boosts its resistance to weathering overtime.
GROOVED RETENTION RINGS TO REDUCE SETTLING
To ensure the piling is properly secured in place, the bottom segment of the EcoPile is threaded so that sand can freely grip the piling. The additional surface areas from the grooves and aforementioned webbing lends to making the EcoPile very resistant to settling. Furthermore, these threaded grooves ensure the EcoPile locks into the ground and prevent it from being pulled during severe weather storms.
