UNIVERSAL HINGES PUSH SYSTEM
UNIVERSAL HINGES PUSH SYSTEM
Standard Application, Half-Inset Doors, Doors With Moulded Profiles

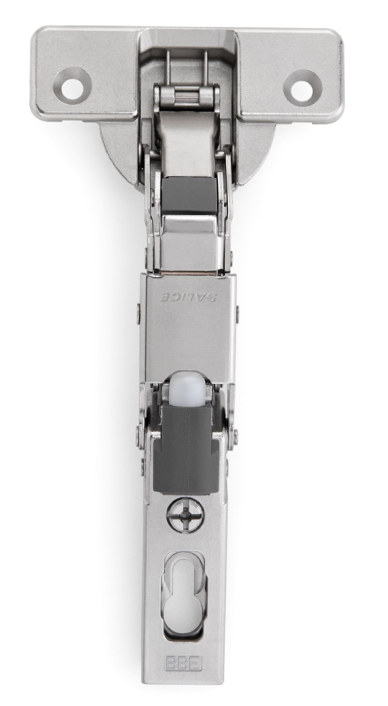

Hinges equipped with a special spring for the opening of handle-less doors

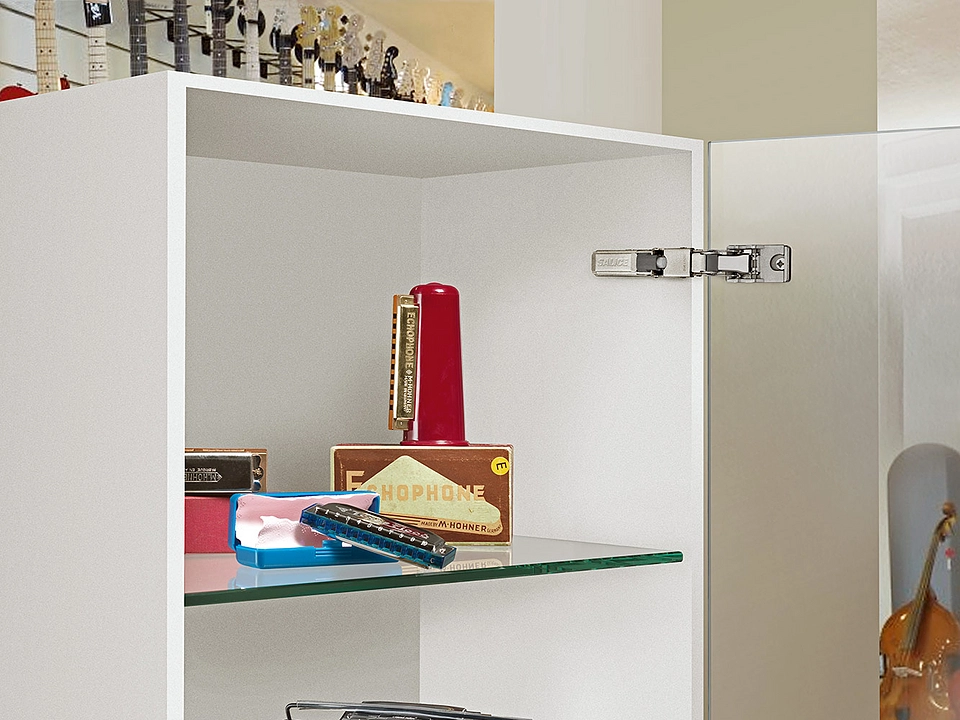

The universal hinge has been developed to provide a solution to most applications in the field of furniture doors. The Push-System is a self-opening system for the doors of all types of handleless furniture.
It consists of a series of self-opening hinges, release devices that can be fitted to the top, base or side panel of the cabinet, and retaining catches to be fitted to the back of the door.
INFORMATION
TRADITIONAL SERIES
Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.
USE
Cabinets
METAL CUP
9 mm Deep
DIMENSIONS OF THE 35 MM CUP
- Height 1 : 37 mm
- Height 2 : 20.5 mm
- Width : 66 mm
DETAIL
Universal hinges can provide a solution to a number of special applications, which include half-inset doors and doors with moulded profiles.
HINGS
Push hinges are equipped with a special spring that acts to open the door independently of the release device.
MOUNTING PLATES
- Series 200 mounting plates.
- Snap-on assembly on Domi mounting plates.
- Symmetrical and asymmetrical bright nickel plated steel or die-cast
- Positioning with pre-determined stop on traditional Series 200 mounting plates.
VERSIONS
UNIVERSAL H=HINGES
110° Opening
DRILLING DISTANCE ON DOOR
From 3 to 18 mm
CHARACTERISTICS
-Compatible with all Salice mounting plates -Fully adjustable in three directions -Precise calibrated adjustment
APPLICATIONS
Furniture Doors
CUP DIMENSION
35 mm
GRAPH
- Constant “L” value of 0.7 mm (it does not change during side adjustment).
- Approx. number of hinges required according to the door dimension and weight
ADJUSTMENTS
- Height adjustment ±2 mm.
- Anti-sliding safety stop.
- Compensated side adjustment from -1.5 mm to +4.5 mm.
- Depth adjustment with Series 200 mounting plates +2.8 mm.
- Depth adjustment with Domi snap-on mounting plates from -0.5 mm to +2.8 mm.
TECHNICAL INFORMATION
These hinges can provide a solution to a number of special applications, which include half-inset doors and doors with moulded profiles.
- 9 mm deep metal cup.
- 110° opening. To limit the opening of the hinge, see page 17 chapter “Accessories”.
- Possible drilling distance on the door (K): from 3 to 18 mm. Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates.
COMPONENTS
COMPONENTS
- DPMSNB
- DPMSNG
- DP28SN9
- DP38XX91
- DP39XXG
- DPASNB
- DPASNG
DPMSNB
DPMSNG
DP28SN9
DP38XX91
DP39XXG
DPASNB
- ø 10 mm, 40 mm length. Beige / Grey
- Release device to be used to increase the magnetic holding strength.
It must always be used together with the DPM. The suggested position of the DPM is the point of pressure on the door. The DPA can be positioned at any point along the opening edge of the door.
