RABEL 8400 MINIMAL WINDOW

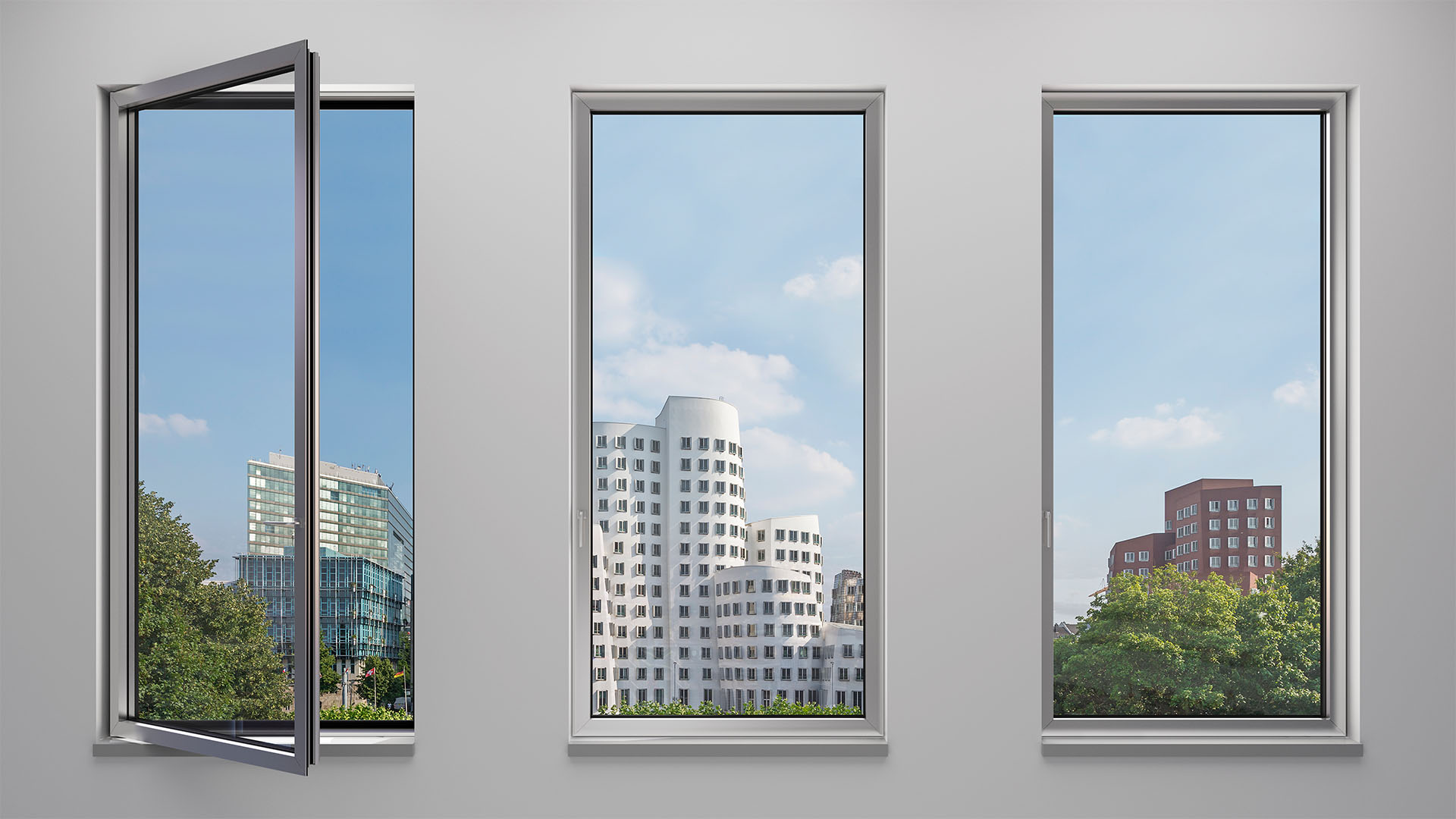

RABEL 8400 MINIMAL WINDOW CASEMENT SYSTEM
Minimal / Super Slim Window Casement System
The Rabel 8400 is a very slim / Minimal super thermal casement window system complementing the aesthetics of slim sliding in minimalistic buildings.
Having an outer visible face width measuring 31mm it was possible to create an invisible opening window. Its minimal dimensions allow for composite constructions while still keeping a 31-35mm face width lines.
Through its innovative design a hidden drainage system has been achieved thus eliminating visible holes or plastic caps on the face of the profiles. Special provision has also been made to allow wall connection with and without the need of an architrave.
On the outer side, the sealing joint has also been engineered so that no sealing materials are visible. To enhance aesthetics most of the glazing bit intersections have been eliminated by design.
As a standard, the system is supplied with a concealed mechanism coupled with a wide selection of handles. All common typologies have been accommodated and they are available in square design. Optionally it can be upgraded to incorporate a burglary resistant multipoint perimeter locking system and a choice of safety and acoustic glasses types, reaching up to 51 dB of sound insulation.
INFORMATION
PRODUCTION
Made in Cyprus
USE
Casement Window
MATERIAL
Glass
TYPE
Hinged Concealed
LOCKING POINTS
Max. 9
SEALING TYPE
3 Gaskets
GLAZING WIDTH POSSIBILITIES
32 mm
FRAME HEIGHT
38 mm
FRAME DEPTH
84 mm
WEIGHT PER SASH
Max. 150 kg
INTERNAL FRAME-TO-SASH
49 mm (Visible Face Impression)
EXTERNAL T-JOINT-TO-SASH
36 mm (Visible Face Impression)
DESIGN
Square
EXTERNAL FRAME-TO-SASH
31 mm (Visible Face Impression)
INTERNAL T-JOINT-TO-SASH
49 mm (Visible Face Impression)
SASH HEIGHT
- 49 mm
- Max : 2.4 mm
THERMAL BREAK WIDTH
- 17 mm
- 20 mm
PROPERTIES
- Acoustic Insulation
- Thermal Insulation
APPLICATIONS
- Residential
- Commercial
PERFORMANCES
Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) : ā„ 1.2 W/(m2K)
CHARACTERISTICS
A Super Slim minimal casement window 31mm that can replace or complement super slim sliding.
