MOUNTING SOLUTIONS FOR HAVER ARCHITECTURAL MESH
MOUNTING SOLUTIONS FOR HAVER ARCHITECTURAL MESH
In order to integrate your wire mesh cladding into your building project in a technically as well as visually flawless way, it is important to use the right fastening technique.
With over 20 years of experience in the processing of stainless steel mesh in the architectural sector, we have developed standardised fixings for architectural mesh and are confident: there is a suitable fastening solution available for your project.
INFORMATION
USE
Interior
FORMAT
Mesh
APPLICATIONS
-Wall Coverings -Partitions -Fixings To A Facade -Ceiling
MATERIAL
Type of Metal : Stainless Steel
PROPERTIES
Acoustic Insulation
PRODUCTION
Made in Germany
BENEFITS
- High quality appearance
- Protection of technical installations
- Ventilation systems
- Large mesh panels
- Improve acoustics
- Fire resistance
WIRE & CABLE MESH FACADES
MOUNTINGS FOR WIRE AND CABLE MESH FACADES
HAVER Architectural Mesh can be stretched over several floors on facades. Only at the top and bottom fixing points of the building is a solid substructure required to support the resulting vertical loads. Depending on the size of the individual mesh elements, additional intermediate fixings are attached floor by floor to absorb horizontal loads and reduce vertical loads.
TOP MOUNTING - WIRE MESH FACADES
A flat tension profile is provided with clevis screws, which are used to hang the element in the substructure. At the same time, tension is applied to the upper fastening point.
INTERMEDIATE MOUNTING - WIRE MESH FACADES
If the mesh size is large enough, the mesh element is secured by means of wire connectors. These reach around a tube lying behind the wire mesh from the back into the architectural wire mesh. This intermediate tube is barely visible in the front view.
BOTTOM MOUNTING - WIRE MESH FACADES
Flat tension profiles are used for the lower fastening, through which tension is introduced into the wire mesh by means of clevis screws. The additional use of pressure springs is necessary to give the wire mesh the necessary elasticity under corresponding loads in the outdoor area.
TOP MOUNTING - CABLE MESH FACADES
The cable mesh element is tensioned with eyebolts, which are inserted into the cable mesh together with a round var. The mesh is tensioned either on a continuous substructure profile or on single fastening brackets.
INTERMEDIATE MOUNTING - CABLE MESH FACADES
The intermediate mounting is done by the use of wire connerctors. These run around a tube installed behind the cable mesh and keep it in position when connected to groups of cables from behind. This type of mounting is not visible in the front view.
BOTTOM MOUNTING - CABLE MESH FACADES
Analog to the top fastening, a round rod is inserted into the cable mesh. The elements are tensioned with of eyebolts, for example, on a continuous substructure. The eyebolts ensure an exact amount of tensioning. Together with the pressure springs, the mesh is installed with the exact pretensioning load.
METAL MESH CEILINGS
MOUNTINGS FOR METAL MESH CEILINGS
Depending on the choice of architectural wire mesh and visual requirements, we offer various horizontal fixing solutions for wire mesh ceilings. Depending on the requirements, HAVER Architectural Mesh is designed to be permanently mounted or revisable.
NON-REMOVABLE FIXING SYSTEM FOR METAL MESH CEILING LININGS
With a tension profile and clevis screw, any horizontal wire mesh element can be precisely clamped. Through edging with tension folds, horizontal wire mesh elements can be tensioned by means of clevis screws in such a way that the sag is regulated or minimised as desired.
Non-removable fastening system with a tesnion profile and clevis screw.
REMOVABLE CEILING ATTACHMENT MADE OF WIRE MESH WITH SAGGING
This system allows each wire element to be removed by a single person, e.g. for maintenance and installation works. The architectural mesh elements will not be damaged, as they can remain in the ceiling construction during maintenance work.
Removable fastening system with sag
ADJUSTABLE CEILING ATTACHMENT WITHOUT SAGGING
If no sagging is desired in the ceiling cladding, the architectural wire mesh is applied to frames under pretension. For removal, the frame can either be removed or a folding or sliding mechanism can be provided.
WIRE MESH FRAMING
WIRE MESH FRAMING SOLUTIONS FOR CEILINGS AND WALLS
Wherever architectural wire mesh cannot be stretched over a large area, frame elements are often used. They offer you great flexibility and, depending on the design, enable you to:
- Removability of the elements.
- The integration of acoustically effective materials.
- The integration of the wire mesh elements into sliding mechanisms.
We adapt the design of the frames as well as integration of the wire mesh individually to your project depending on the requirements.
Wall and ceiling covering with wire mesh elements.

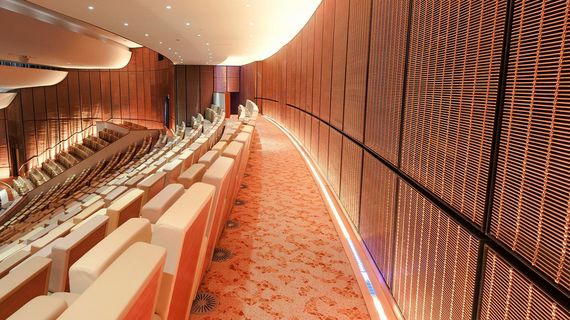

Wire mesh frames as a wall cladding.| ©Salim Abdulla
DESIGN OPTIONS FOR FRAME SOLUTIONS
Wire mesh folded through 90° and welded with an L-profile.
Wire mesh folded through 90° on all sides and fixed to a frame.
Hanging option for frame elements.
