C.R. Laurence CRL Center Design Series Partition Post
CRL CENTER DESIGN SERIES PARTITION POST
CRL CENTER DESIGN SERIES PARTITION POST
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery.
These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.
information
BASE TYPE
Square Flat - Mechanical
CONFIGURATION
Center Post
CAP TYPE
Flat
MATERIAL
Aluminum
POST MOUNTING
Post Mounting Base Plates measure 2" (51 mm) square
DIMENSIONS
Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
GLAZING THICKNESS (INCHES)
1/4
GLAZING ATTACHMENT TYPE
U-Channel
GLAZED
No
SERIES
Design
HEIGHT
24 inches
TUBE SIZE
1-1/8 inches
CONFIRGURATIONS
Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
GLAZING CHANNELS
-Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. -Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel
TUBE TYPE
Square
SIZE
Stock Post Sizes, RED-E to Ship
TOP & BASE
Top Cap and Mounting Base Included
DESIGN

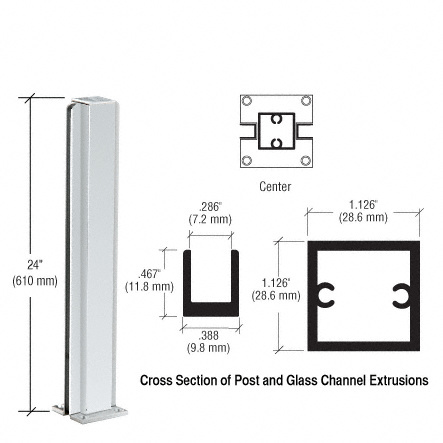

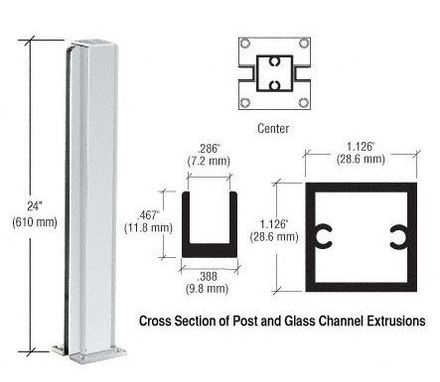

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square
GLASS
-Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass -Use Monolithic Tempered Glass
COLORS
