Laufen Antero Urinal
ANTERO URINAL
ANTERO URINAL
Siphonic urinal, internal water inlet, with flushing rim, with electronic control, battery operated (9V)
The harmonious tension between geometrical outer and organic inner contours creates an emblematic product image.
In contrast to conventional urinals, the ceramic body of antero is shaped neither like a cone nor a cylinder.
Instead the bowl rises organically towards the user out of a 380 x 765 mm rectangular ceramic surface. The flat rear wall fits standard connections and neatly conceals traces of previous installations during modernisation.
The sloped ceramic surface and deep bowl tapered at the front guarantee backsplash protection and a clean outlet.
INFORMATION
OPTIONS
401 - with waste water pipe DN 50
FLUSHING RATE
Minimum 0.3 L/s
OUTLET
Horizontal (Variable 60 Mm)
FLUSHING
Minimum 0.5 L - 3.0 L
PRODUCTION
Made In Switzerland
ARTICLE-NO
H8411504004011
WATER INLET
Concealed, 1/2”
DOWNLOADS
↓ Data Sheet
↓ 2D Files
↓ 3D Files
CERTIFIED TO
- EN 80
- EN 13407
- EN 15091
SPECIFICATION
1-l flushing electronic controlled siphonic urinal HF Electronic control for battery (6x LR6 AA 1,5 V) pre-assembled Ceramic siphon cover Siphon replaceable from top without dismantling urinal 1-l flushing automatic adjusted independent of rupply pressure Lid under urinal Waste piping cleaning without dismantling urinal Only in combination with fixing set, order no. 89282.6 Charge 000 – DN 40 Charge 401 – DN 50
TYPOLOGY
Urinals
APPLICATIONS
Bathroom
COLORS
- 000 - White
- 400 - White With Lcc (Laufen Clean Coat)
- 716 - Black Matt
- 757 - White Matt
- 758 - Graphite Matt
- 759 - Matt Grey

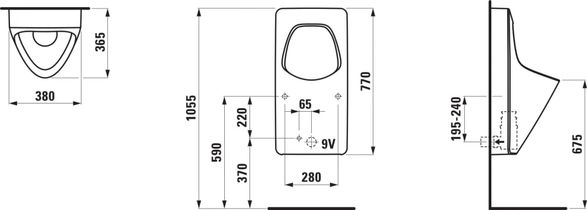

DIMENSIONS
- Length : 380 mm
- Width : 365 mm
- Height : 770 mm
USE
Interior
WEIGHT
25.0 kg
CHARACTERISTICS
- Swiss Design
- Sustainable Design And Manufacture
- Complete Design Collections And Installation Systems Available From A Single Source
